High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board
High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board

High Brightness 1000cd 15 6inch 1920x1080 FHD Screen Lcd Display Portable Monitor Driver Control Board

Model NO.
K002676-M.NT68676+G156HTN02.1 1920X1080
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3 Days
Quantity:

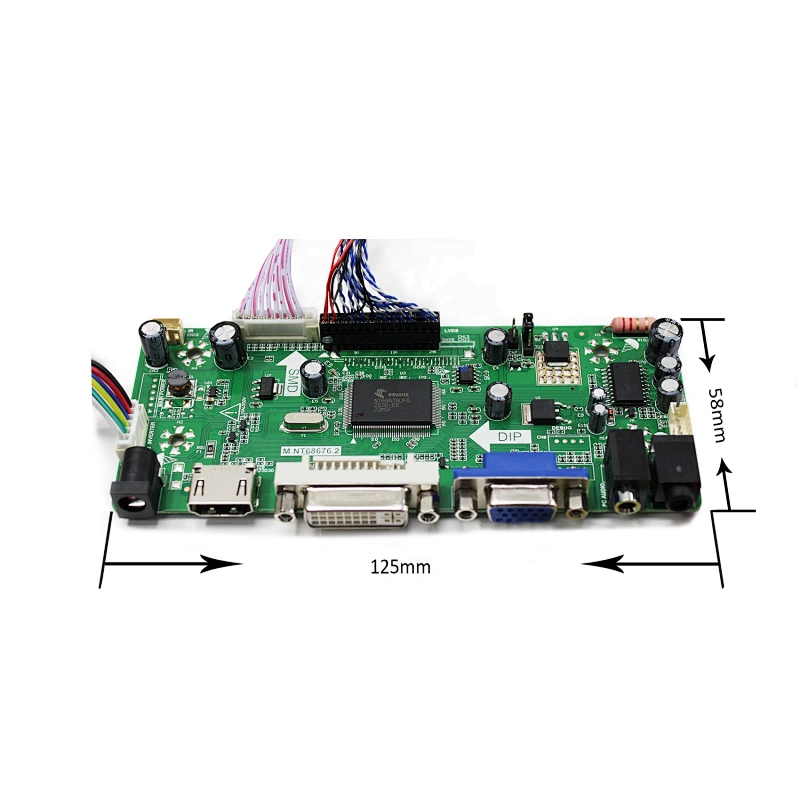

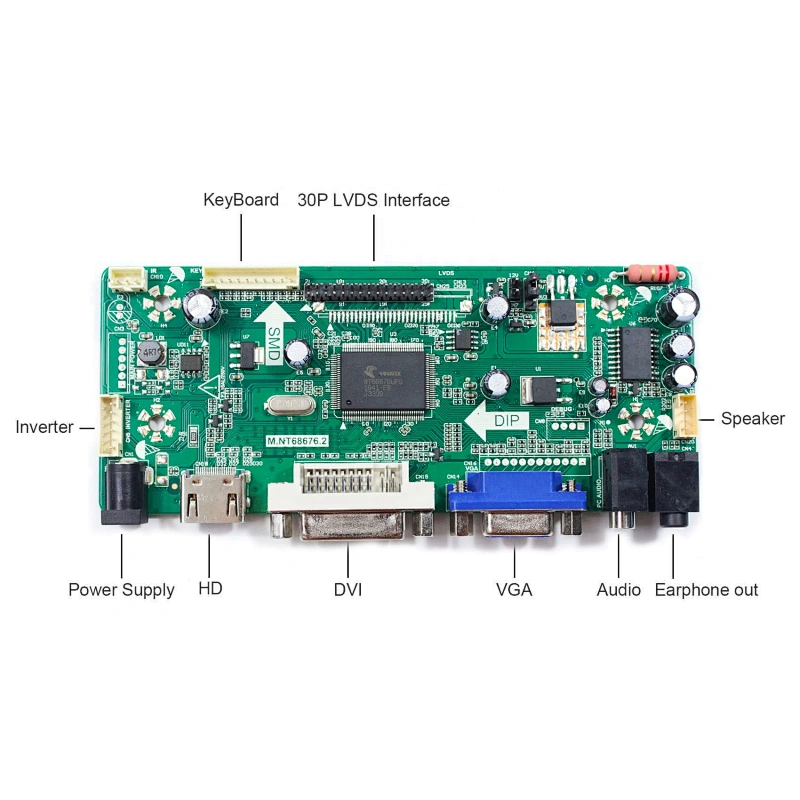

  • LCD Controller Board:
    HD-MIDVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI DVI VGA
    Audio Input: HD-MI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 15.6"G156HTN02.1 1000nit 1920X1080 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1920(RGB)×1080, FHD, 141PPI
    Outline Size 363.8(W)×215.9(H)×12.5(D) mm
    Display Area 344.16(W)×193.59(H) mm
    Brightness 1000 cd/m²(Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
    Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
    Input Voltage 3.3V (Typ.)

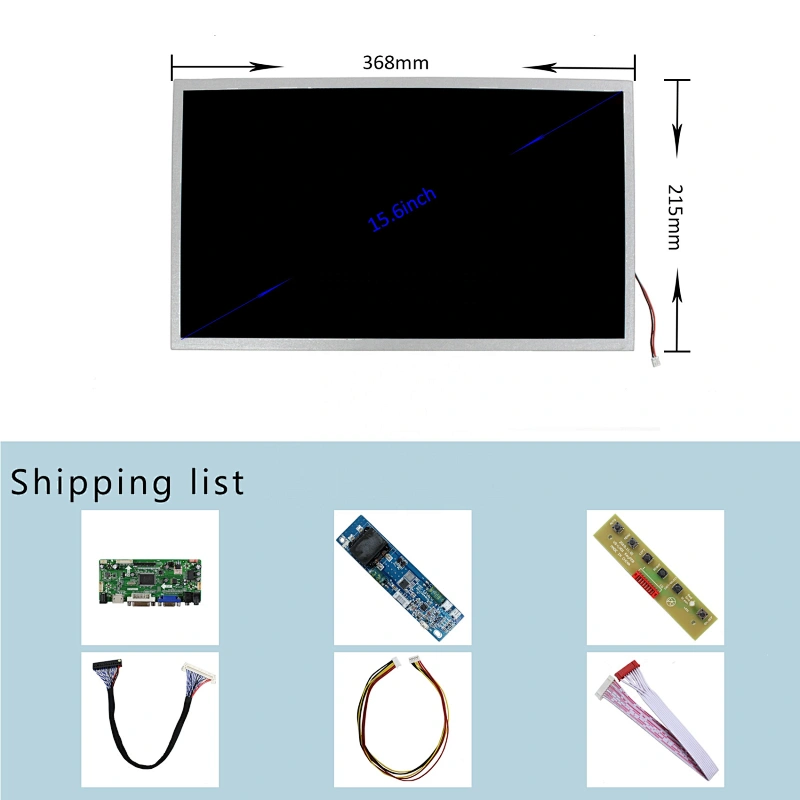

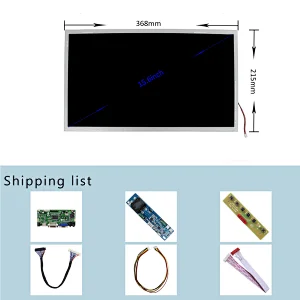

  • Packing list:
    1× HD-MI VGA DVI LCD Controller Board M.NT68676
    1×15.6"G156HTN02.1 1000nit 1920X1080 LCD Screen

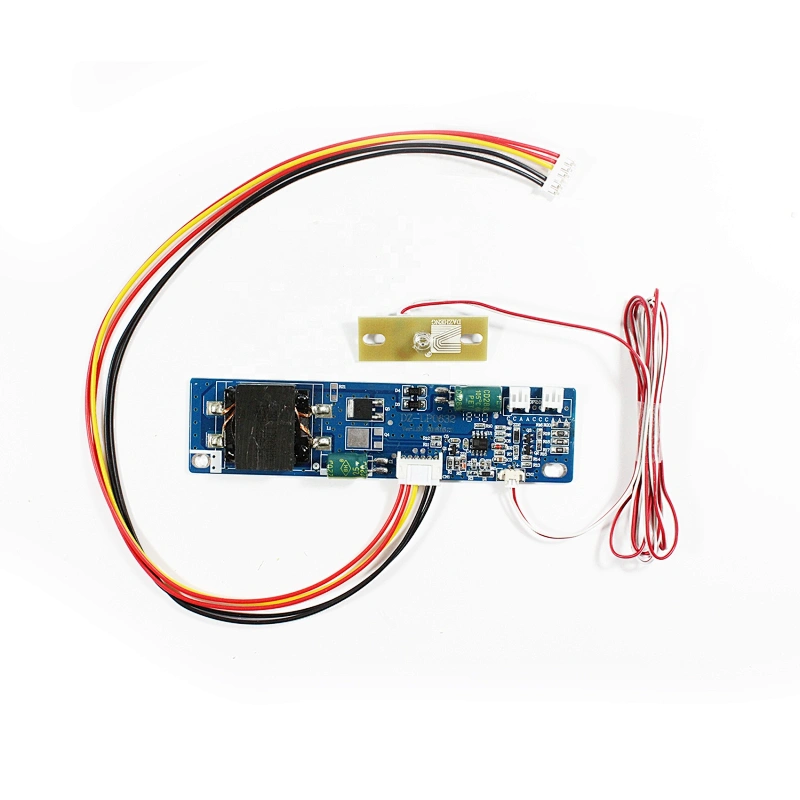

    1× Inverter Board
    1×Backlight Cable
    1× Keyboard With Cable
