Type C HDMI TF Card LCD Controller Board Work for 12.3" HSD123KPW1-A30 1920X720 lcd tft display

Model NO.
K002226 VS-CX532H-V1+12.3inch HSD123KPW1-A30
Delivery:
EXW or FOB
Minimum order quantity:
1 set
Supply Ability:
1000 set / Day
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Brightness:850cd2
  • Resolution:1920X720
  • Contrast Ratio:1000:1
  • Panel Type:IPS Pro, Normally Black, Transmissive
  • Audio Input:Type C HDMI1.4 TF Card
  • Size:12.3inch
  • Part No:HSD123KPW1-A30
  • Backlight:WLED
  • Place of Origin:CN;GUA
  • Display Size:12.3inch
  • Model Number:K002226 VS-CX532H-V1+12.3inch HSD123KPW1-A30
  • Brand Name:VS
Products Show
Product Description
Product name:

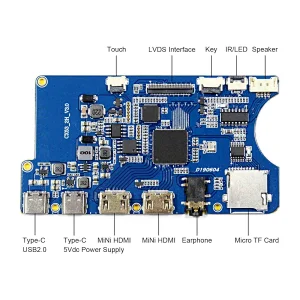

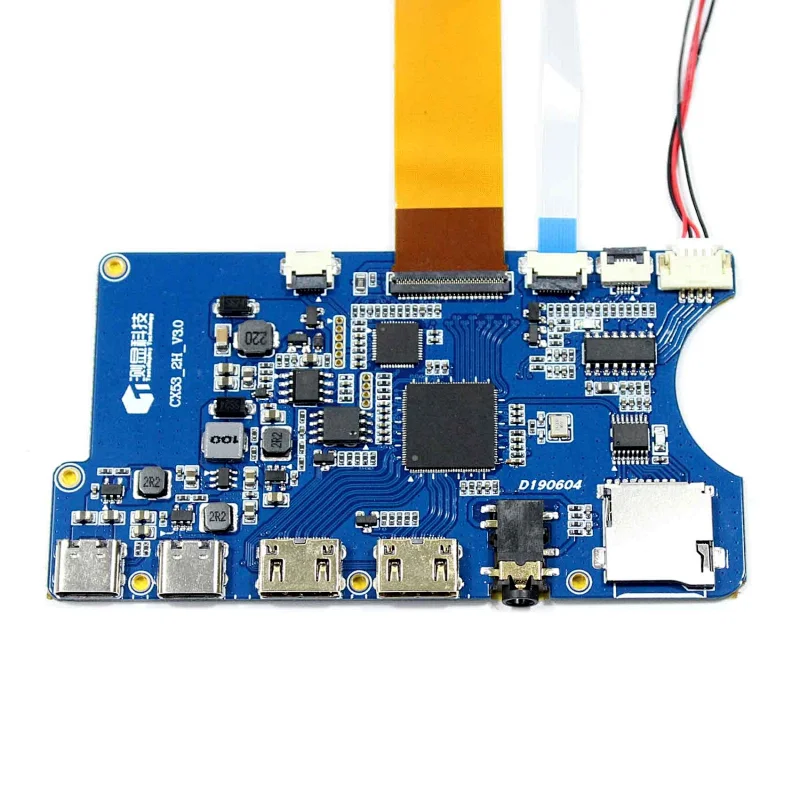

Type C HDMI TF Card LCD Controller Board VS-CX532H-V1
Details:
Type C HDMI TF Card LCD Controller Board Work for 50Pin LVDS LCD Screen

Input Power Adapter: 5Vdc More than 1A.Type-C

Come In Standby Model When Not Input Signal

Standby Model <0.3W

OSD: Support Menu Contrast Brightness

Audio Input: Type C HDMI1.4 TF Card

Audio Output: Speaker Earphone

Key Board: Power Menu Up Down Exit

Language: English
Product Name:
12.3"HSD123KPW1-A30 1920X720 LCD Screen
Details:
Display Mode IPS Pro, Normally Black, Transmissive

Resolution 1920RGB)×720

Outline Size 308.1 × 130×15.6 (H×V×D)

Display Area 292.032 × 109.512 (H×V)

Brightness 850 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins

Backlight WLED

Input Voltage 3.3V (Typ.)

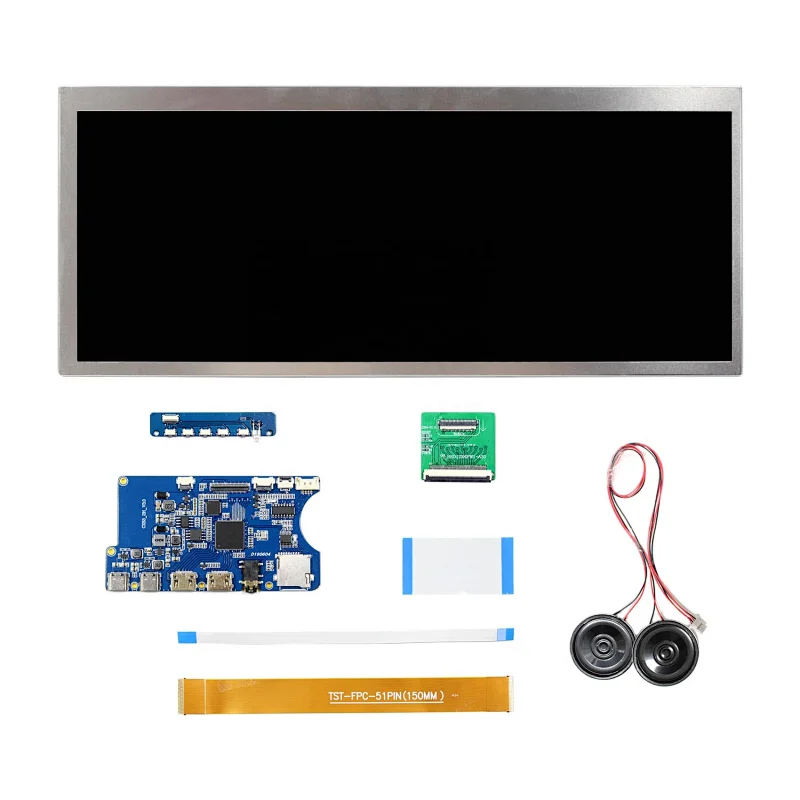

Packing list:
1× Type C HDMI TF Card LCD Controller Board VS-CX532H-V1

1×12.3inch HSD123KPW1 1920X720 LCD Screen

1× Converter Board

1× Signal Cable

1× 8ohm 2W Speaker

1× Keyboard With Cable
