Model NO.:
KYV-N2 V4+LQ035NC111 K001762
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN
  • Display Size:3.5inch
  • Model Number:K001762 KYV-N2 V4+LQ035NC111
  • Brand Name:VS
  • Type:TFT
  • Input Power Adapter:12Vdc More than 1A
  • Standby Model:<0.3W
  • Video Input:AV
  • Display Mode:TN, Normally White, Transmissive Resolution 320RGB)x240
  • Brightness:300 cd/m2 (Typ.)
  • Contrast Ratio:400:1 (Typ.) (TM)
  • Signal Interface:Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC
  • Backlight:WLED
  • Payment:Union.Paypal TT
Products Show
Product Description

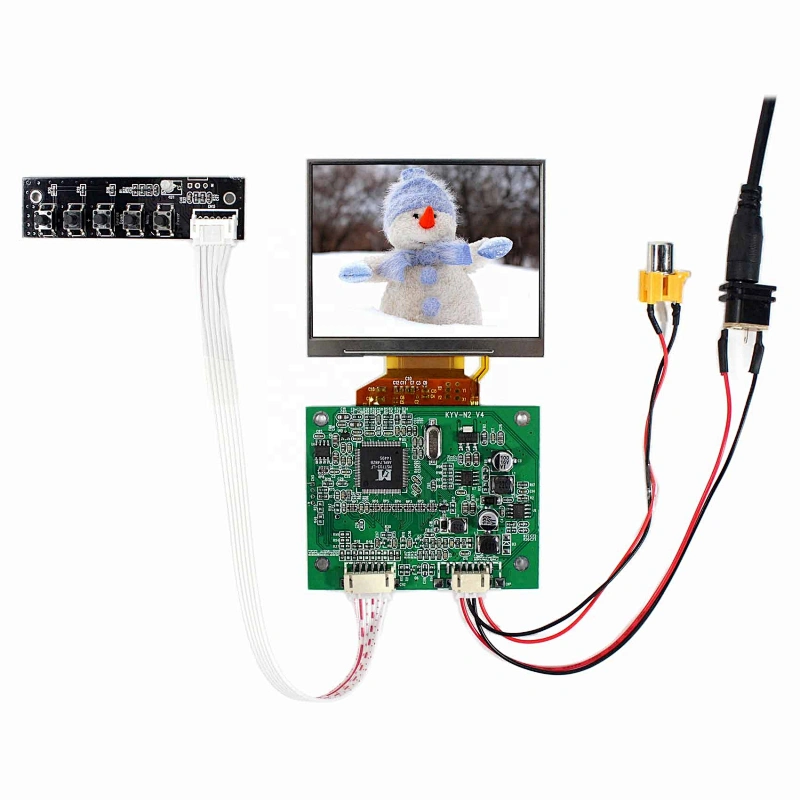

AV LCD Controller Board KYV-N2 V4
3.5inch LQ035NC111 320X240 LCD Screen
Product name:

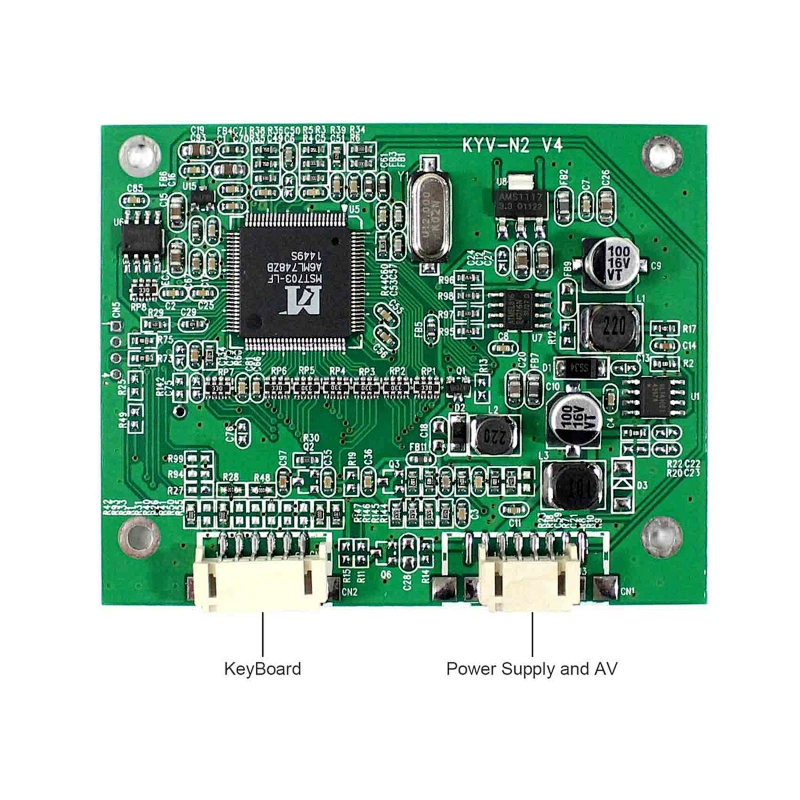

AV LCD Controller Board KYV-N2 V4
Details:

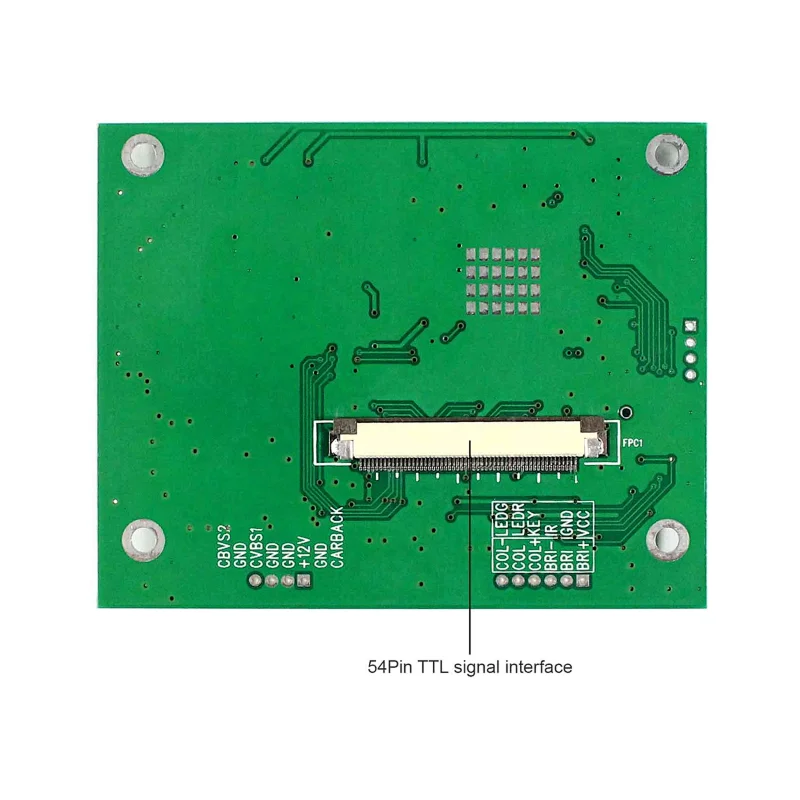

 AV LCD Board Work for 54Pin TTL LQ035NC111 LCD Screen

Input Power Adapter:12Vdc More than 1A.

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Video Input: AV

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:77mm x 60mm x 8mm
Product Name:

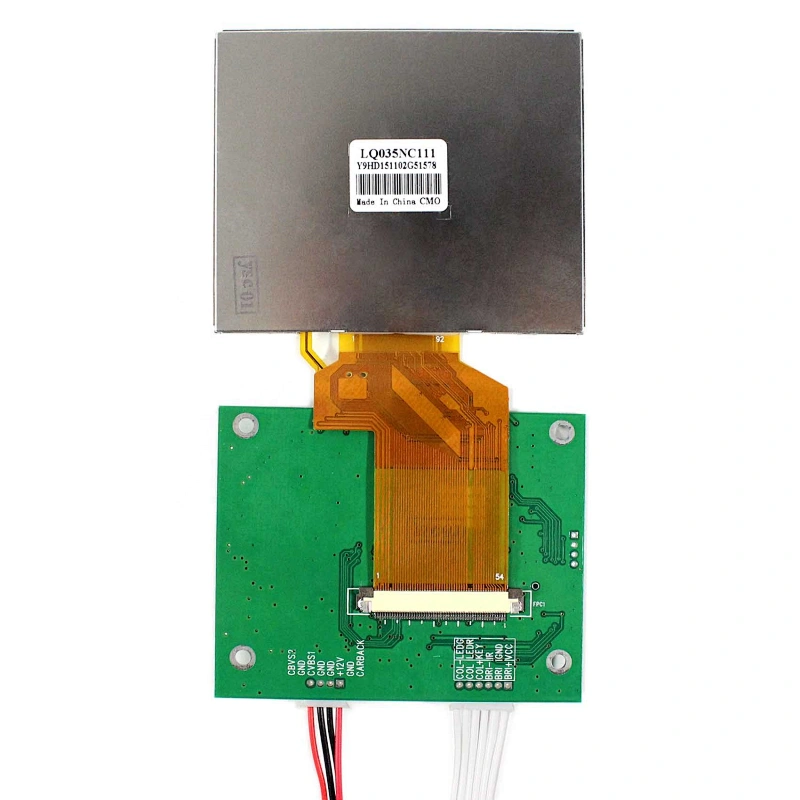

3.5"LQ035NC111 320X240 LCD Screen
Details:
Display Mode TN, Normally White, Transmissive

Resolution 320RGB)×240

Outline Size 76.9 × 63.9×3.46 (H×V×D)

Display Area 70.08 × 52.56 (H×V)

Brightness 300 cd/m² (Typ.)

Contrast Ratio 400:1 (Typ.) (TM)

Viewing Angle 60/60/50/55 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface Digital RGB (8/24-bit) + SPI, CCIR601/656 , 54 pins , FPC

Backlight WLED

Input Voltage 3.3V (Typ.)
Packing list:
 1× AV LCD Controller Board KYV-N2 V4

1× 3.5inch LQ035NC111 320X240 LCD Screen

1× 2AV Signal Cable

1× Power Cable

1× Keyboard With Cable
