VGA+AV LCD Controller Board 6.2inch 800x480 HSD062IDW1 LCD With Touch screen controller board

Model NO.
K000869 KYV-N2 V6+HSD062IDW1+TP
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

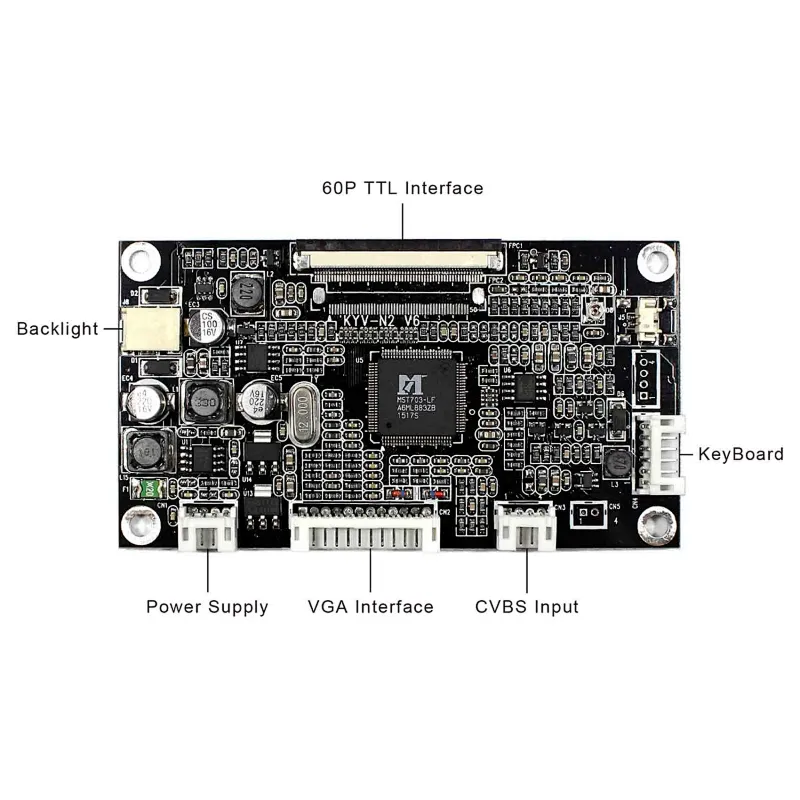

  • LCD Controller Board:
    VGA AV LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:100mm x 55mm x 10mm
  • 6.2"HSD062IDW1 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 155.2 × 80.4×6.5 (H×V×D)
    Display Area 137.5 × 77.2 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 75/75/70/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface TTL (1 ch, 6/8-bit) + SPI , FPC , 60 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

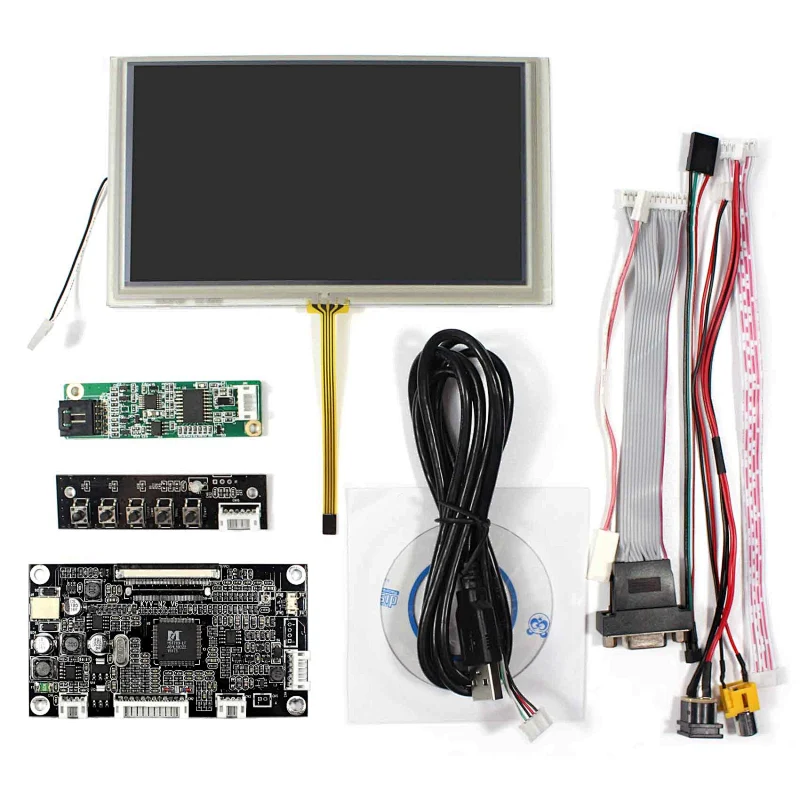

  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V6
    1× 6.2inch HSD062IDW1 800X480 LCD Screen With Touch Panel VS062TP-A1
    1× Power Supply Cable
    1× VGA Cable
    1× AV Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
