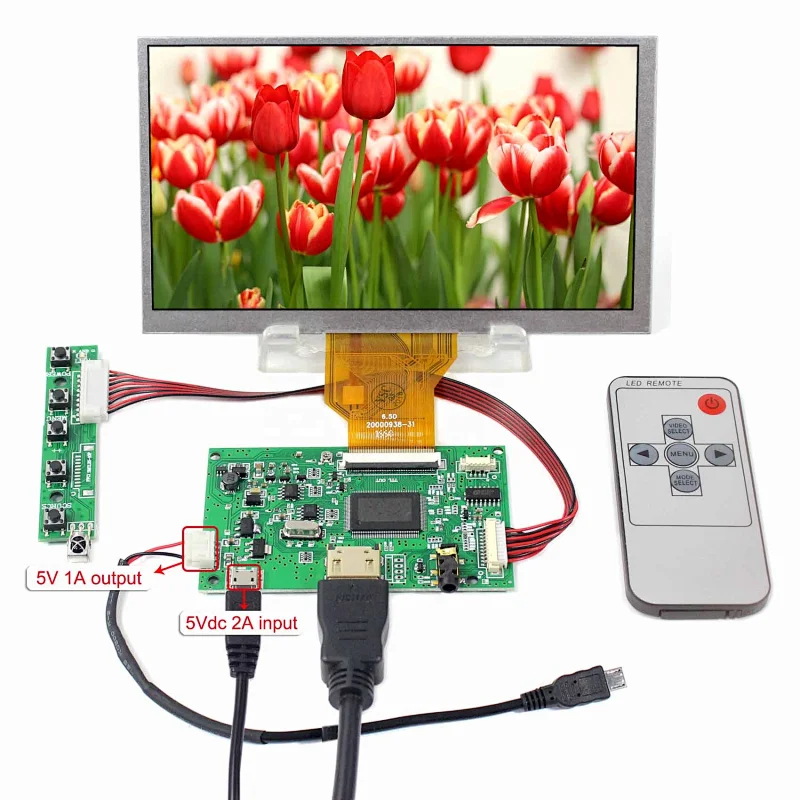

HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen
HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen

HDMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 6.5inch AT065TN14 800X480 LCD Screen

Model NO.
K001986 VS-TY2660H-V812+AT065TN14
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

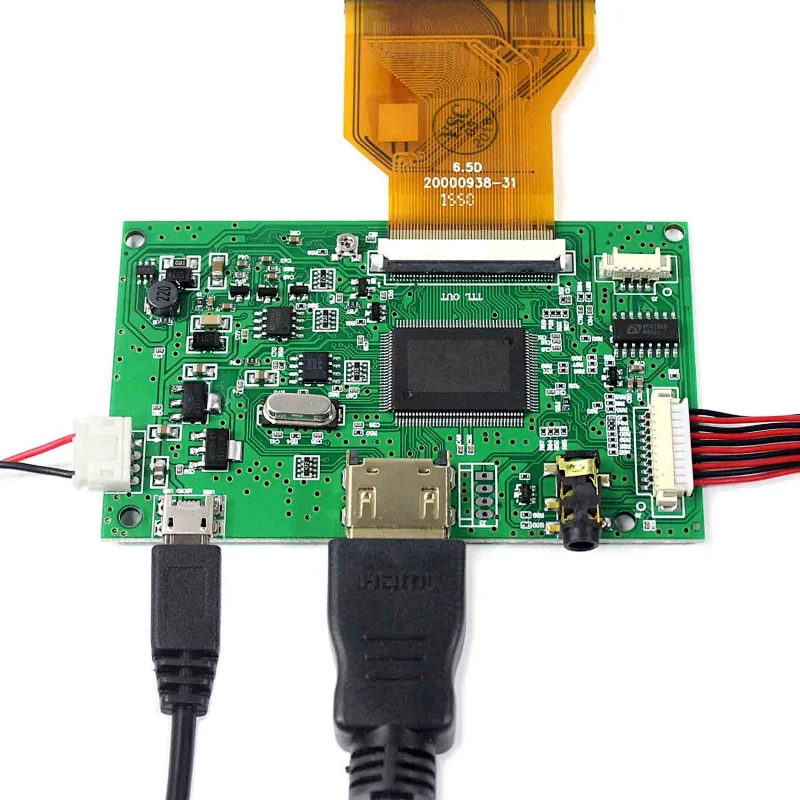

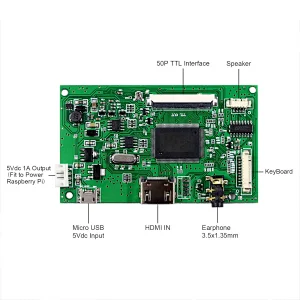

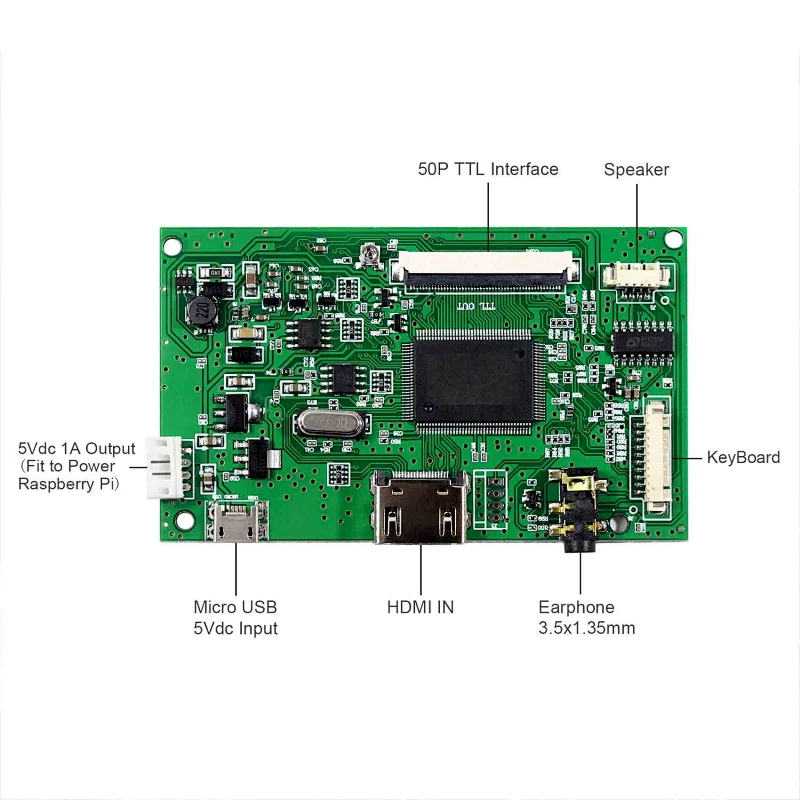

  • LCD Controller Board:
    HDMI LCD Board Work for 50P TTL Interface LCD Screen
    Input Power Adapter: 5Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio: Earphone
    Power Connector: PH2.0 Micro USB
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 88mm x 53mm x 7mm
  • 6.5"AT065TN14 800X480 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800（RGB)×480
    Outline Size 155.2 × 89.4×5.7 (H×V×D)
    Display Area 143.4 × 76.7 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

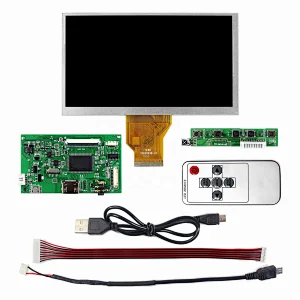

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V812
    1× 6.5inch AT065TN14 800X480 LCD Screen
    1× USB Power Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
