HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )
HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )

HDMI To MIPI Converter Board 5.5 in LS055T3SX05 1080x1920 LCD Screen ( can offer without backlight for 3D printer )

Model NO.:
VS-CXMIPI-V1+LS055T3SX05 1080x1920 K002212
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN
  • Display Size:5.5inch
  • Model Number:K002212 VS-CXMIPI-V1+LS055T3SX05 1080x1920+speaker
  • Brand Name:VS
  • Type:TFT
  • Board Size:60mm x 40mm x 3mm
  • Standby Model:<0.3W
  • Audio Input:HDMI
  • Audio Output:Speaker Earphone
  • Display New Mode2:Normally Black, Transmissive
  • Resolution:1080RGB)x1920
  • Brightness:450 cd/m2 (Typ.)
  • Contrast Ratio:1000:1 (Typ.) (TM)
  • Signal Interface:MIPI (2 ch, 4 data lanes) , 40 pins , Connector
Products Show
Product Description

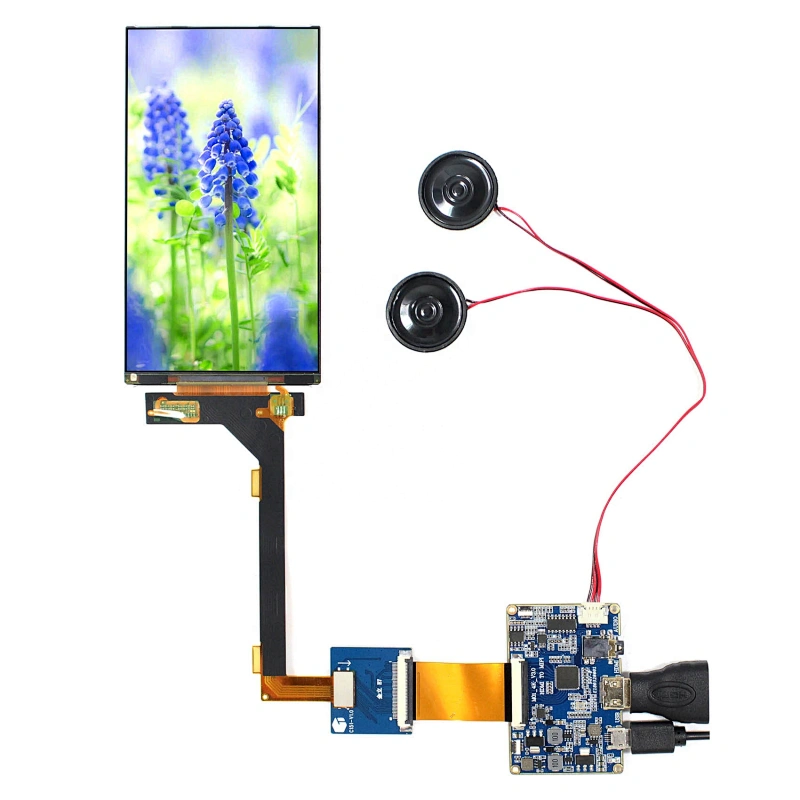

HDMI To Mipi LCD Controller Board VS-CXMIPI-V1
5.5inch LS055T3SX05 1080X1920 LCD Screen
Product name:

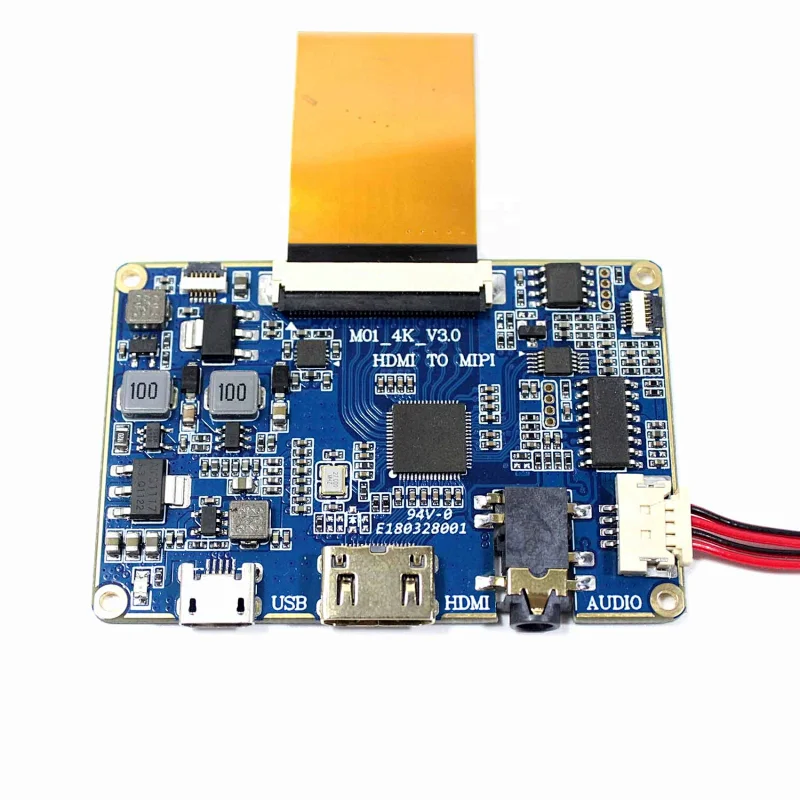

HDMI To Mipi LCD Controller Board VS-CXMIPI-V1
Details:
HDMI Board Work for 40Pin Mipi LCD Screen

Input Power Adapter: 5Vdc More than 1A. Mirco USB

Come In Standby Model When Not Input Signal

Standby Model <0.3W

Audio Input: HDMI

Audio Output: Speaker Earphone

Board Size: 60mm x 40mm x 3mm
Product Name:
5.5inch LS055T3SX05 1080X1920 LCD Screen
Details:
Display New Mode2, Normally Black, Transmissive

Resolution 1080RGB)×1920

Outline Size 70.44 ×129.59×1.61(H×V×D)

Display Area 68.04× 120.96 (H×V)

Brightness 450 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface MIPI (2 ch, 4 data lanes) , 40 pins , Connector

Backlight WLED

Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)
Packing list:
1× HDMI To Mipi LCD Controller Board VS-CXMIPI-V1

1× 5.5inch LS055T3SX05 1080X1920 LCD Screen

1× Signal Cable

1× Converter Board

1× 8ohm 2W Speaker
