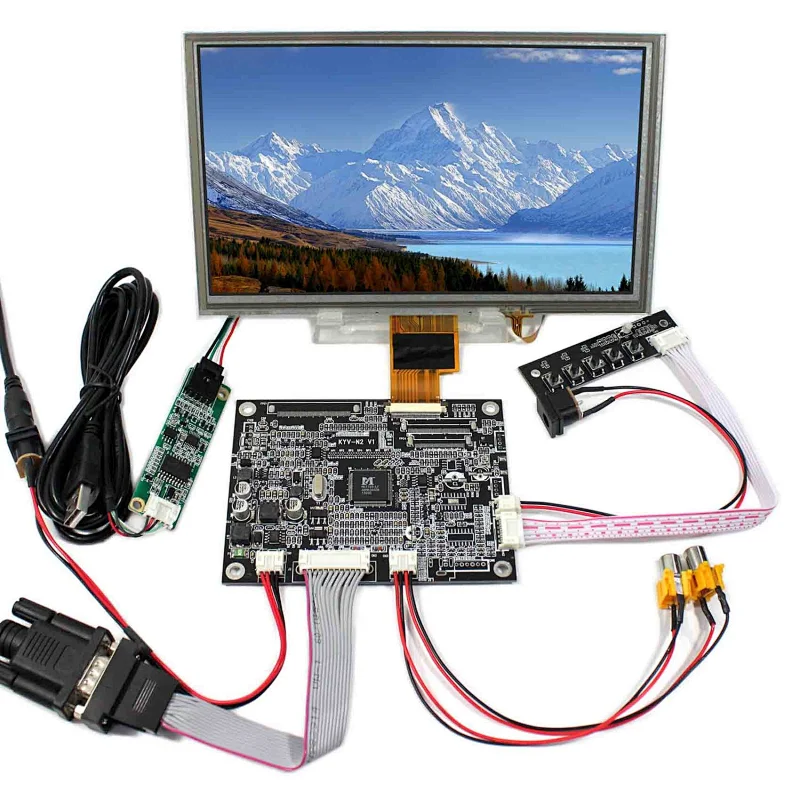

8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1
8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1

8inch ZJ080NA-08A 1024x600 Resistive Touch LCD Screen+VGA 2AV Reversing LCD Controller Board KYV-N2 V1

Model NO.
K000210 KYV-N2 V1+ ZJ080NA-08A
Quantity:

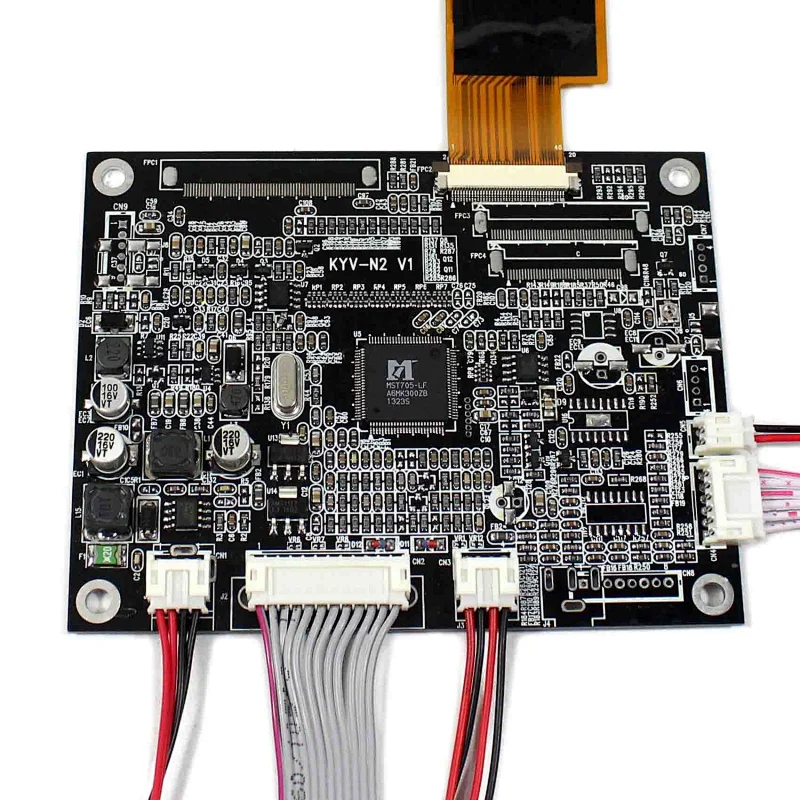

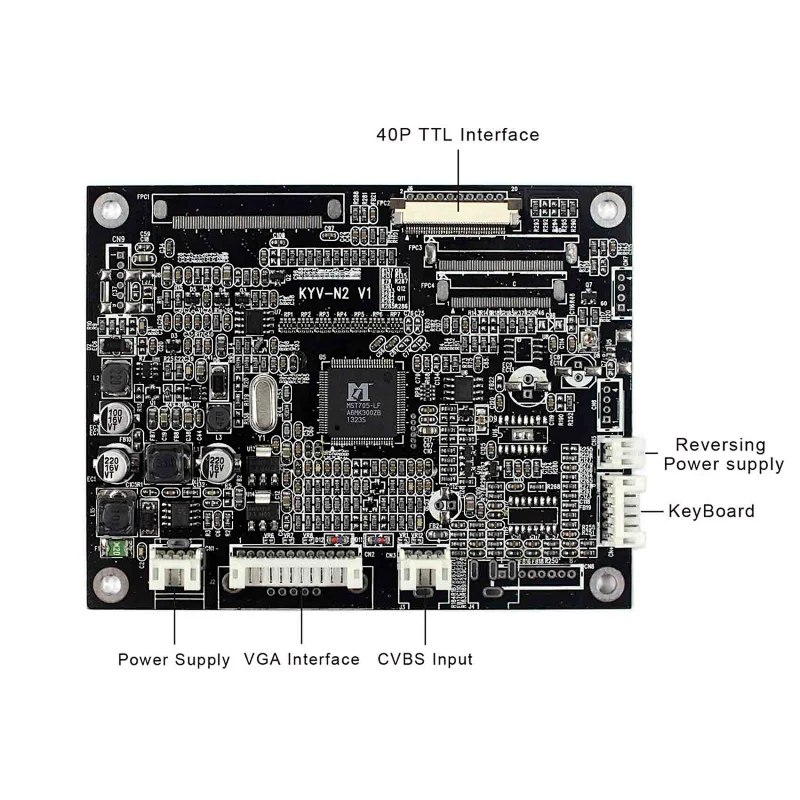

  • LCD Controller Board:
    VGA AV LCD Board Work for 40Pin TTL LCD Screen
    Input Power Adapter:12Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <0.3W
    Video Input: VGA AV
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:110mm x 85mm x 10mm

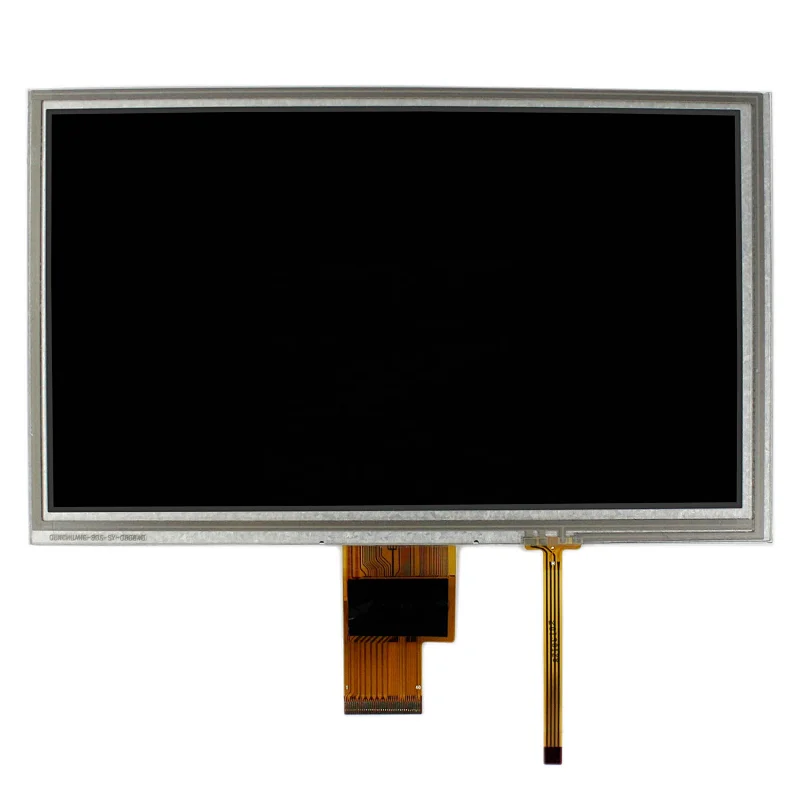

  • 8"ZJ080NA-08A 1024X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1024RGB)×600
    Outline Size 192.8 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36(H×V)
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/70/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

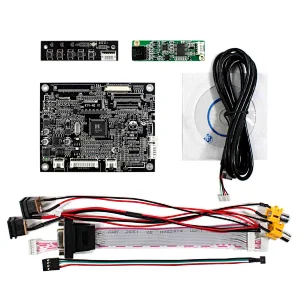

  • Packing list :
    1× VGA+AV LCD Controller Board KYV-N2 V1 Support Reversing
    1× 8inch ZJ080NA-08A 1024X600 LCD Screen With Resistive Touch Panel
    1× Power Supply Cable
    1× Reversing CableConnect To 12V Tt Auto switch To AV2)
    1× VGA Cable
    1× AV Cable
    1× USB Controller Card
    1× USB Cable
    1× Extend Touch Cable
    1× Keyboard With Cable
