H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen
H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen

H DMI LCD Controller Board VS-TY2660H-V812 with 50P TTL Interface 8inch AT080TN64 800X480 LCD Screen

Model NO.
K001988 VS-TY2660H-V812+AT080TN64
Quantity:

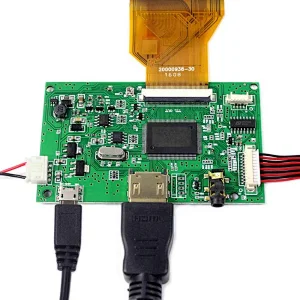

  • LCD Controller Board:
    HDMI LCD Board Work for 50P TTL Interface LCD Screen

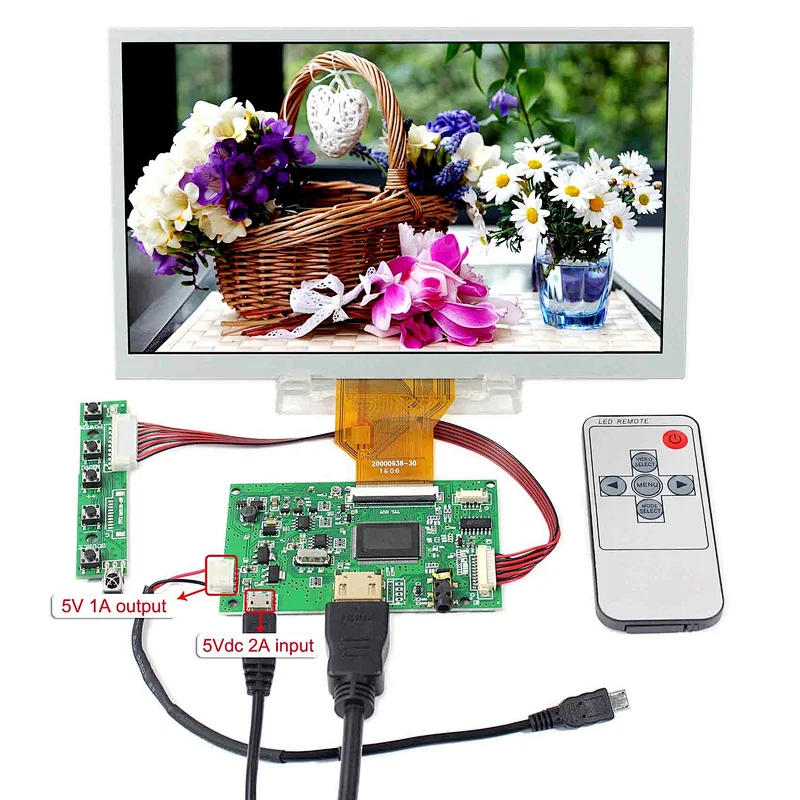

    Input Power Adapter: 5Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    Audio: Earphone
    Power Connector: PH2.0 Micro USB
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 88mm x 53mm x 7mm
  • 8"AT080TN64 800X480 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 800RGB)×480
    Outline Size 192.6 × 116.9×6.7 (H×V×D)
    Display Area 176.64 × 99.36 (H×V)
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

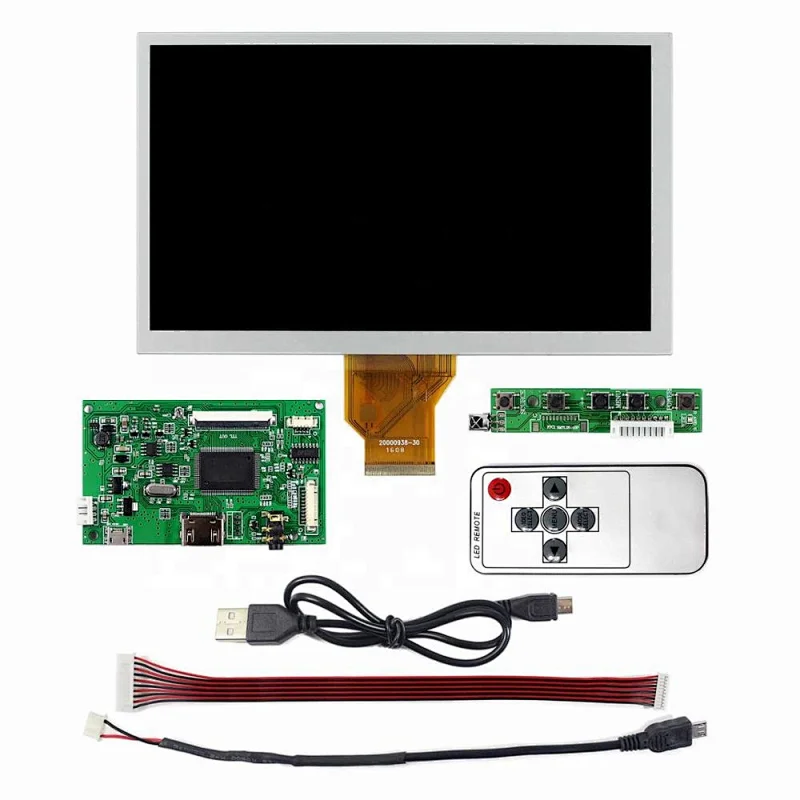

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V812
    1× 8inch AT080TN64 800X480 LCD Screen
    1× USB Power Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included
