HD VGA AV USB RF LCD Controller Board with T.V56.03 9.7

HD VGA AV USB RF LCD Controller Board with T.V56.03 9.7" IPS LCD 9.7 inch 1024x768 tft lcd display

Model NO.:: VST56+9.7inch K001882
Delivery:: EXW or FOB ShenZhen
Minimum order quantity:: 1
Country of Origin:: CHINA
Stock Time:: 3-7days Days

Quantity:

Product Description
Application Description

Type:TFT
Outline Dimension:210.53x 166.53x5.45 (HxVxD)
Display Area:196.6 x147.5 (HxV)
Brightness:300 cd/m2 (Typ.)
Resolution:1024x768
Contrast Ratio:600:1 (Typ.) (TM)
Panel Type:Display Mode IPS, Normally Black, Transmissive
Board Size:188mm x 43mm x 17mm
Video Input:HDMI VGA AV USB RF
Size:9.7inch
Place of Origin:CN;GUA
Display Size:9.7inch
Model Number:K001882 VST56+9.7inch
Brand Name:VS

Products Show

Product Description

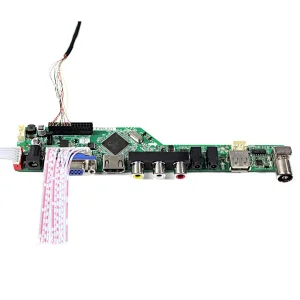

HDMI VGA AV USB RF LCD Controller Board T.V56.03

9.7"1024x768 IPS LCD Screen

Product name:	HDMI VGA AV USB RF LCD Controller Board T.V56.03
Details:	HDMI VGA AV USB RF LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2 USB Support Video AV Compatible With PAL And NTSC Video Input: HDMI VGA AV USB RF Audio Input: HDMI PC-Audio Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 188mm x 43mm x 17mm

Product Name:	9.7"1024x768 IPS LCD Screen

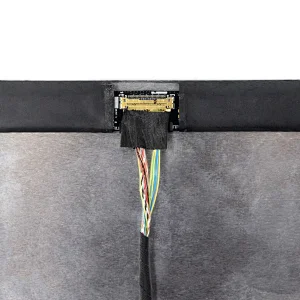

Details:	Display Mode IPS, Normally Black, Transmissive Resolution 1024RGB)×768 Outline Size 210.53× 166.53×5.45 (H×V×D) Display Area 196.6 ×147.5 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface LVDS(1ch 6bit) Connector 30Pin Backlight WLED Input Voltage 3.3V (Typ.)

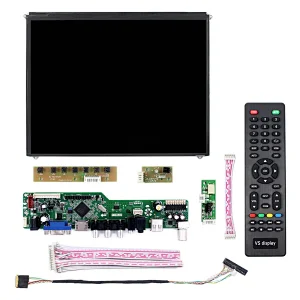

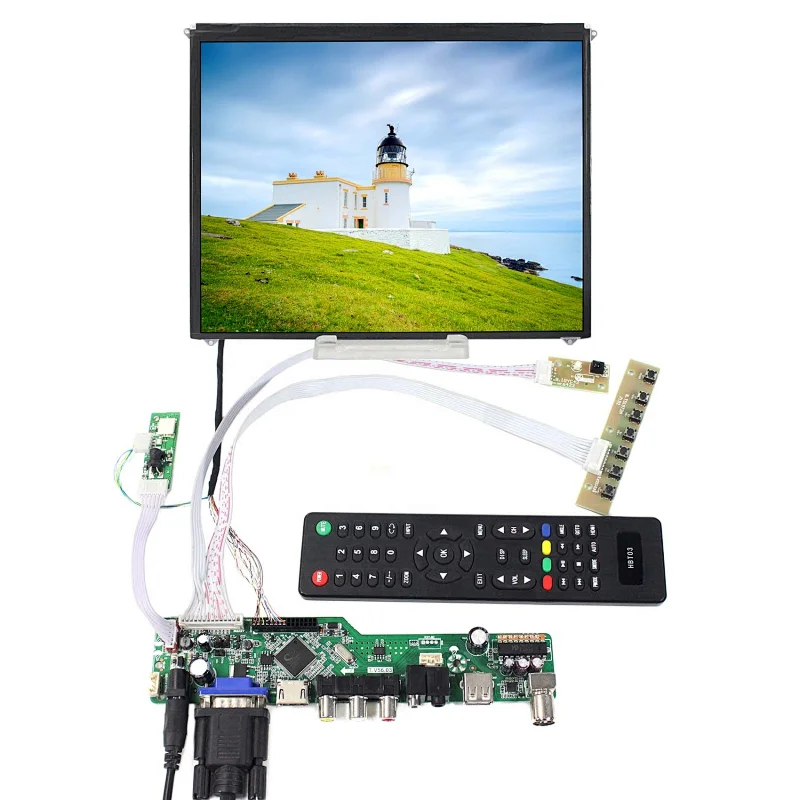

Packing list:	1× HDMI VGA AV USB RF LCD Controller Board T.V56.03 1× 9.7"1024x768 IPS LCD Screen 1× Converter Board 1× 30Pin Signal Cable 1× Keyboard With Cable 1× Remote Control(Battery Not included)

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size : 10.4"

Resolution : 800RGB)×600

Outline Size : 236 × 174.3×4.9 (H×V×D)mm

Brightness : 500 cd/m² (Typ.)

Signal Interface : LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)

Application:

Our Company

VS DISPLAY TECHNOLOGY(HONGKONG) LTD is a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.
Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines QC system: ISO9001

Our Services & Strength

(1)We are factory for more than 10years in this field.We can provide customized products that you need.
(2)Sample deliver in 1-10 day(usually in 2 days),bulk order in 10 days or negotiation.

(3)Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:market01@vslcd.com(Skype)
(3)One year warranty from the day the product sold. Some technical issue can be solved online.

(4)We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
(5)Shipping: DHL, UPS, FedEx, TNT, EMS, HongKong Post.
(6)Payment: T/T HSBC, Paypal, Western Union.
(7)If you need any products, please send me your requirement quantity,address,contact person,email and phone number, then, I will give you commercial invoice to comfirm.

Workshop

Our Customer visit Factory

Electronic Exhibitions

WareHouse

Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc.

Each item have SKU No. Standard goods always have goods in stock.

Our Certifications

Packing & Delivery

Packing Details :

Packing with standard export box, it also can package as your request.

Delivery Details :

3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory for more than 10years in this field.

Q: How long is your delivery time?

A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: After Service for the product ?

A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
