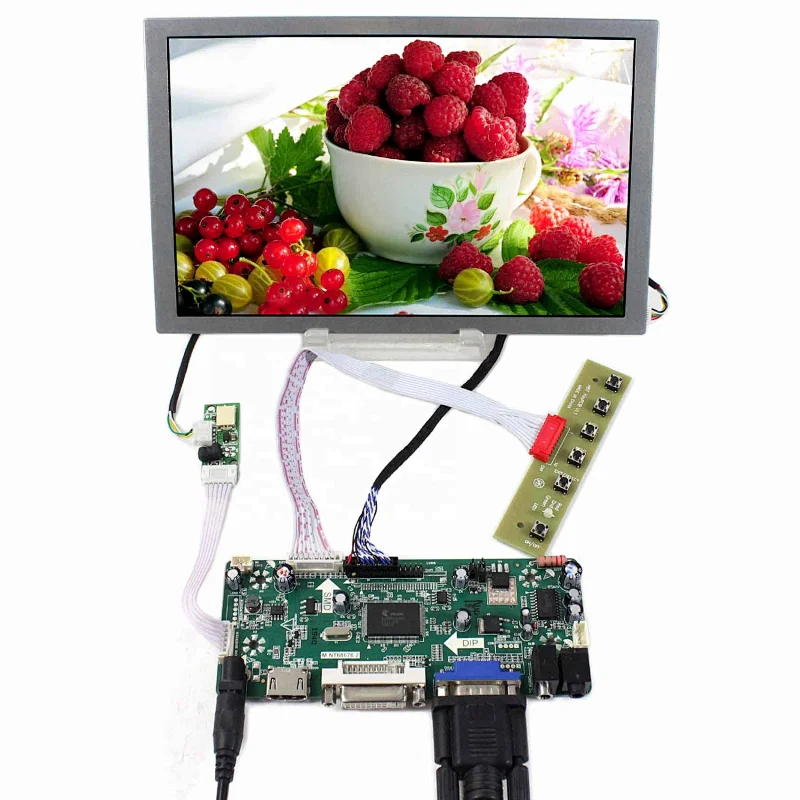

HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen
HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen

HDMI VGA DVI LCD Controller Board M.NT68676 With 9inch AA090ME01 800x480 LCD Screen

Model NO.
K001734 M.NT68676+20P+AA090ME01
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

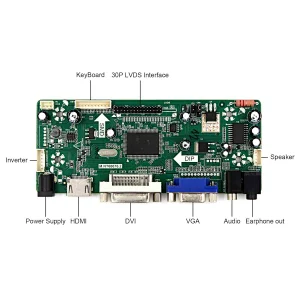

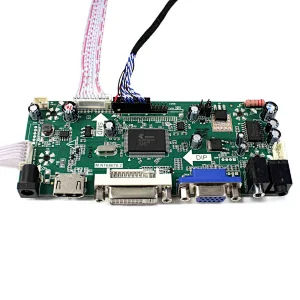

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm

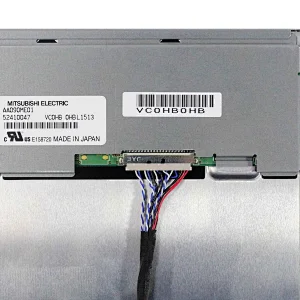

  • 9"AA090ME01 800X480 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 800（RGB)×480
    Outline Size 219× 136.2×10(H×V×D)
    Display Area 196.8 × 118.08 (H×V)
    Brightness 400 cd/m² (Typ.)
    Contrast Ratio 900:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6/8-bit) , 20 pins , Connector
    Backlight WLED
    Input Voltage 3.3V (Typ.)

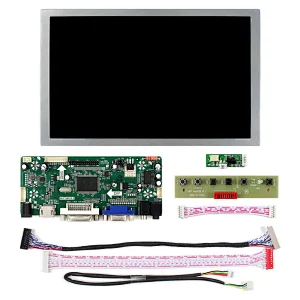

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 9inch AA090ME01800x480 LCD Screen
    1×Inverter Board
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
