H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel
H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel

H+ VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins Interface 10.1inch M101NWWB 1280X800 tft lcd panel

Model NO.
K001855 M.NT68676+M101NWWB
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

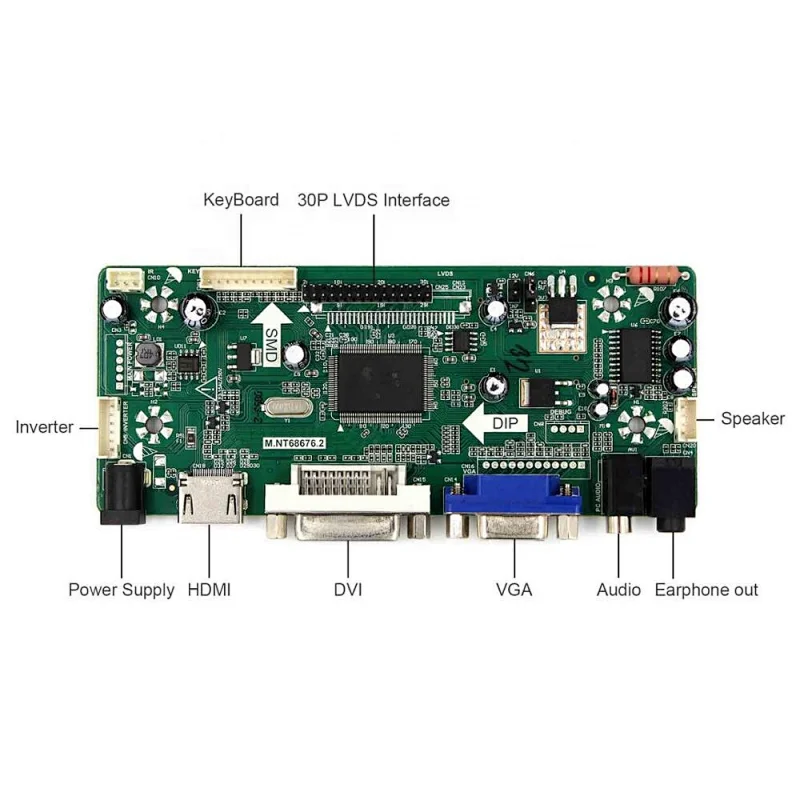

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm
10.1"M101NWWB 1280X800 LCD Screen:
Display Mode  MVA, Normally Black, Transmissive
Resolution 1280RGB)×800
Outline Size 229.46 × 149.1×4.56(H×V×D)
Display Area 216.96× 135.6 (H×V)
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

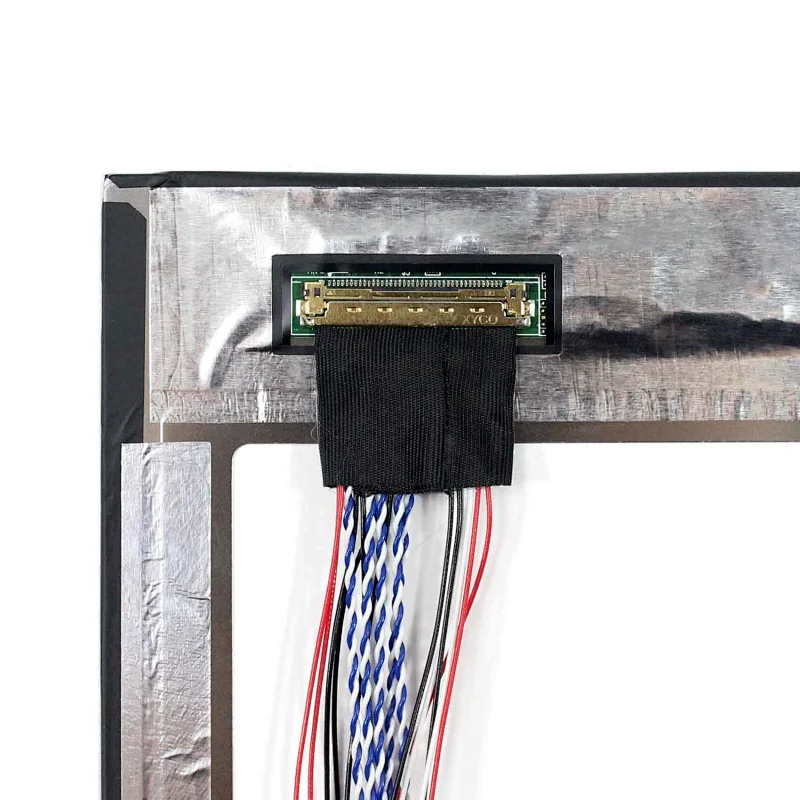

Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

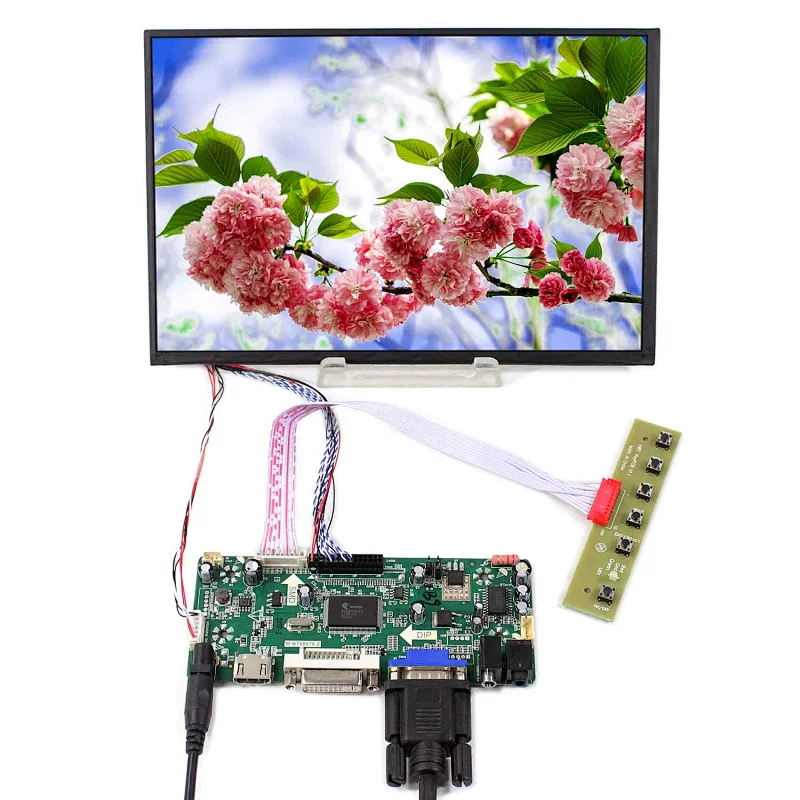

Packing list :
1× HDMI VGA DVI LCD Controller Board M.NT68676
1× 10.1inch M101NWWB 1280X800 LCD Screen
1× Signal Cable
1× Keyboard With Cable

Send Message

* clear input
*

Related Products

10.1" A101VW01 V3 800X480 LCD Screen 10.1inch Backlight WLED Display with VGA AV LCD Controller Board
10.1" A101VW01 V3 800X480 LCD Screen 10.1inch Backlight WLED Display with VGA AV LCD Controller Board
Model NO. K002430 KYV N2V1+A101VW01.V3 800X480

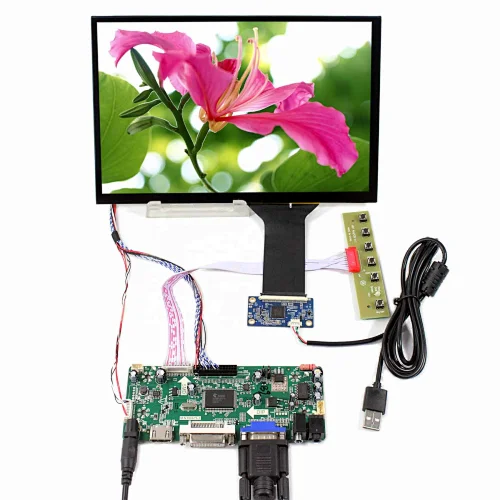

HD MI VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins 10.1inch M101NWWB 1280X800 LCD Screen With Capacitive Touch Panel
HD MI VGA DVI LCD Controller Board M.NT68676 with LVDS 40 pins 10.1inch M101NWWB 1280X800 LCD Screen With Capacitive Touch Panel
Model NO. K001856 M.NT68676+M101NWWB+VS101TC01-B1
10.1" IPS B101EW05 1280X800 LCD Screen with HD-MI LCD Controller Board
10.1" IPS B101EW05 1280X800 LCD Screen with HD-MI LCD Controller Board
Model NO. K002766 VS-N5V3.1H+B101EW05
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
10.1inch 1920x1200 IPS LCD Panel B101UAN01.A with LCD Controller Board
Model NO. K001659 VS-RTD2556HV-V2+B101UAN01.A
LCD Board Work with 10.1" M101NWWB R6 1280X800 LCD Screen and 10.1 Resistive Touch Panel
LCD Board Work with 10.1" M101NWWB R6 1280X800 LCD Screen and 10.1 Resistive Touch Panel
Model NO. K001863 VS-2660H-V1+M101NWWB+VS101TP-A4

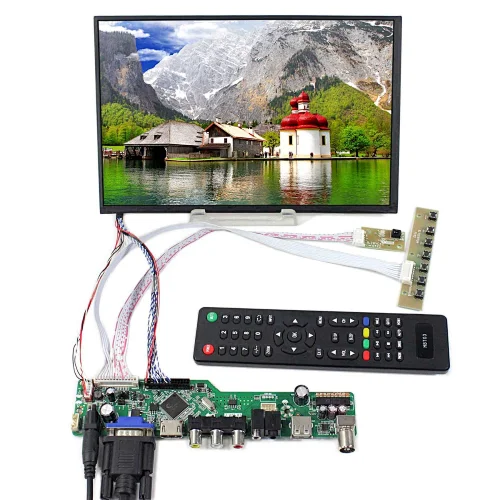

10.1 inch 1280X800 LCD Screen 10.1 M101NWWB with HDMI VGA AV USB RF LCD Controller Board T.V56.03
