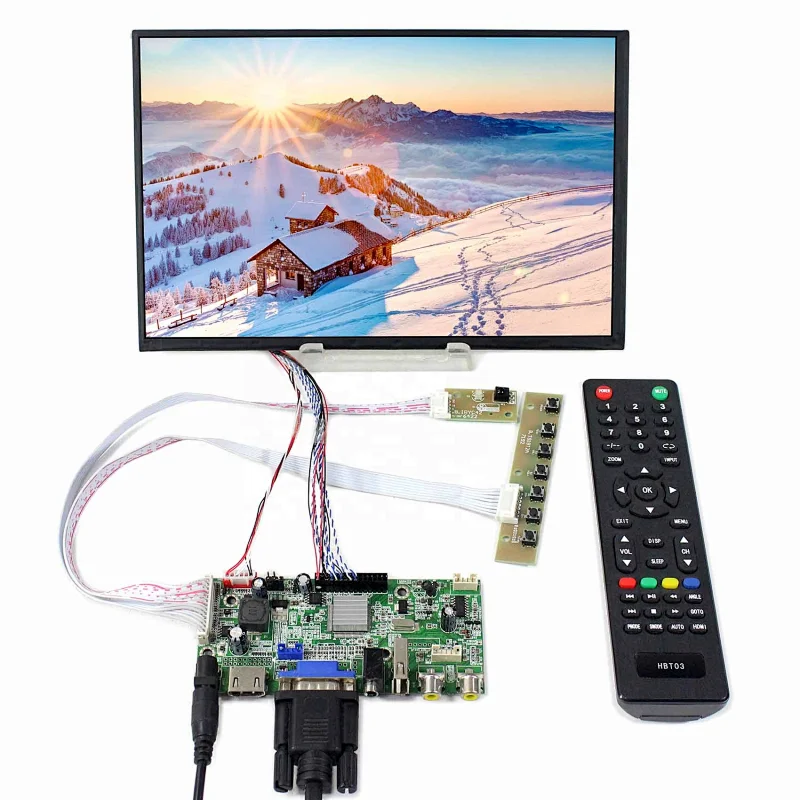

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen
HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen

HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1 work with 10.1inch M101NWWB 1280X800 LCD Screen

Model NO.
K001870 VS-V59AV-V1+M101NWWB
Quantity:

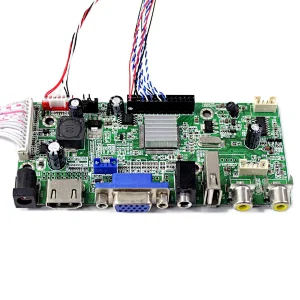

  • LCD Controller Board:
    HDMI VGA 2AV USB LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    HDMI Port Support Transform Audio Compatible With HDMI 1.3/1.4，HDCP 1.2
    USB Support Video
    AV1 AV2 Compatible With PAL And NTSC
    Video Input: HDMI VGA AV1 AV2 USB
    Audio Input: HDMI PC-Audio
    Audio Output: Speaker Connector
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 118mm x 54mm x 17mm
  • 10.1"M101NWWB 1280X800 LCD Screen:
    Display Mode  MVA, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 229.46 × 149.1×4.56(H×V×D)
    Display Area 216.96× 135.6 (H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

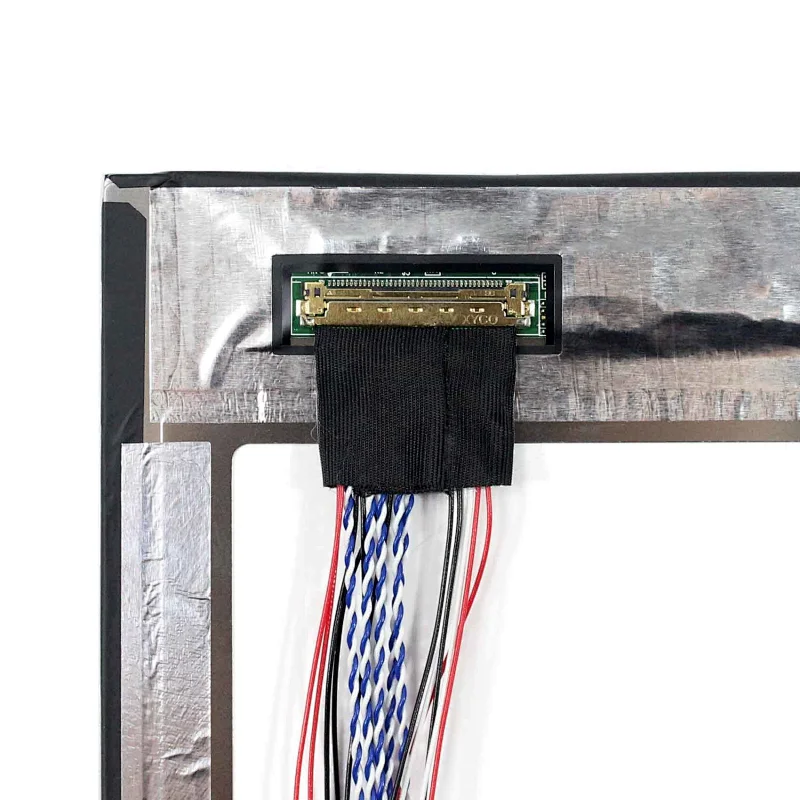

    Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)
  • Packing list :
    1× HDMI+VGA+AV+USB LCD Controller Board VS-V59AV-V1
    1× 10.1inch M101NWWB 1280X800 LCD Screen
    1× Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
