HDMI+VGA+2AV LCD Controller Board with 12.1inch LQ121S1LG75 800X600 HDMI high brightness tft lcd display module lcd

Model NO.
VS-TY2662-V1+LQ121S1LG75 K000714
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Place of Origin:CN;GUA
  • Display Size:12.1inch
  • Model Number:K000714 VS-TY2662-V1+LQ121S1LG75
  • Brand Name:VS
  • Type:TFT
  • Video Input:HDMI VGA AV1 AV2
  • Reversing:Support Automatically Switch To AV2 When Connector ACC to 12V
  • Board Size:91mm x 66mm x 12mm
  • Resolution:800RGB)x600
  • Brightness:330 cd/m2 (Typ.)
  • Contrast Ratio:800:1 (Typ.) (TM)
  • Signal Interface:LVDS (1 ch, 8-bit) , 30 pins , Connector
  • Backlight:WLED
  • Display mode:TN, Normally White, Transmissive
Products Show
Product Description

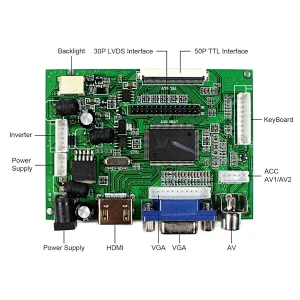

HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
12.1inch LQ121S1LG75 800X600 LCD Screen
Product name:
HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
Details:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen

50Pin TTL Connector for 7inch~10.1inch LCD Screen

Input Power Adapter:12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI VGA AV1 AV2

Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size:91mm x 66mm x 12mm
Product Name:
12.1"LQ121S1L75 800X600 LCD Screen
Details:
Display Mode TN, Normally White, Transmissive

Resolution 800RGB)×600

Outline Size 265× 205×10 (H×V×D)

Display Area 246 × 184.5 (H×V)

Brightness 330 cd/m² (Typ.)

Contrast Ratio 800:1 (Typ.) (TM)

Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down]

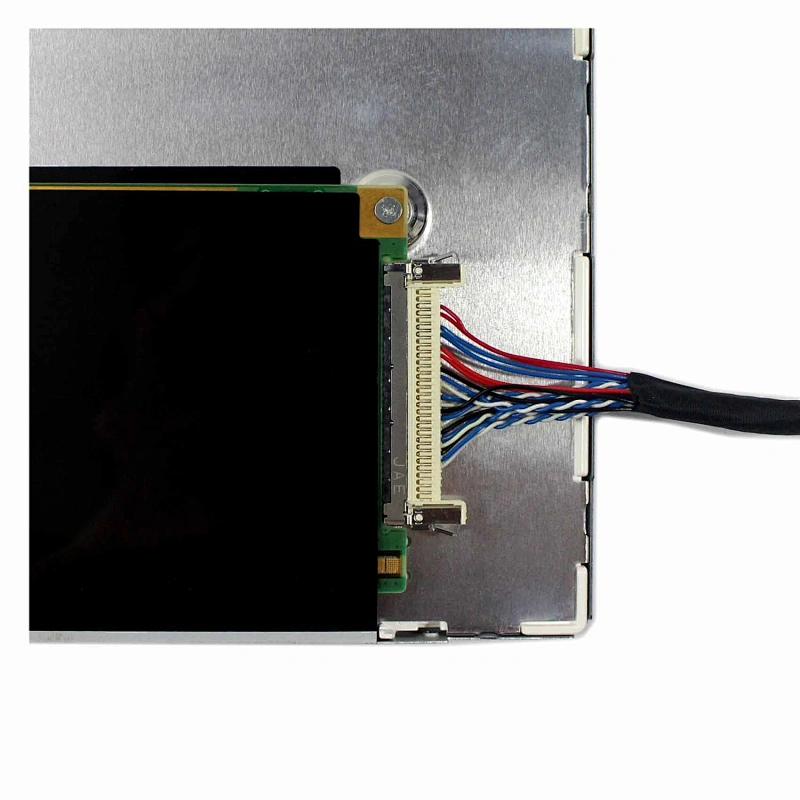

Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)

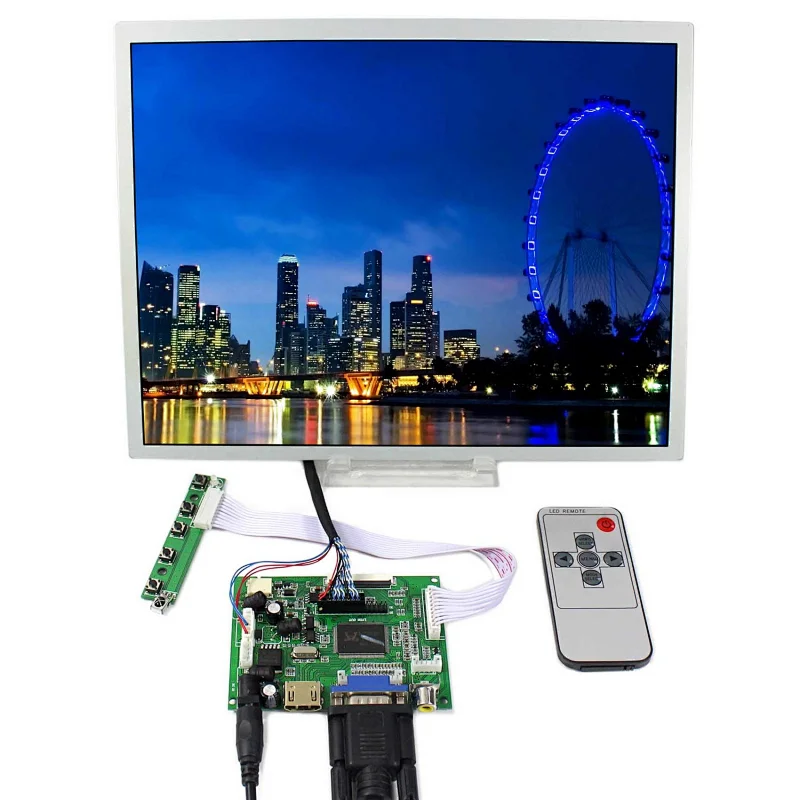

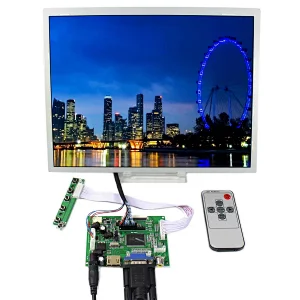

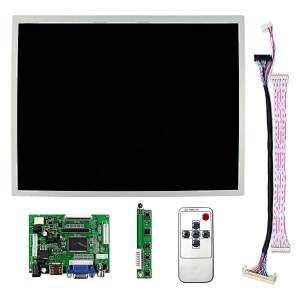

Packing list:
1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1

1× 12.1inch LQ121S1LG75 800X600 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable

1× Remote Control(Battery Not included)
