HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays
HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays

HDMI VGA 2AV LCD Controller Board VS-TY2662-V1 12.1inch LQ121S1LG45 800X600 TFT panel lcd display custom lcd displays

Model NO.
K000713 VS-TY2662-V1+LQ121S1LG45
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

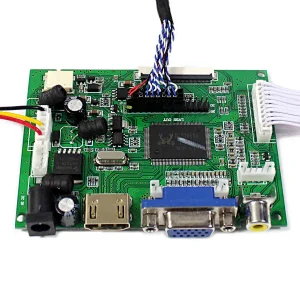

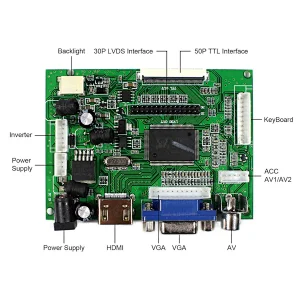

  • LCD Controller Board:
    HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
    50Pin TTL Connector for 7inch~10.1inch LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI VGA AV1 AV2
    Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:91mm x 66mm x 12mm
  • 12.1"LQ121S1LG45 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 276× 209×11 (H×V×D)
    Display Area 246 × 184.5 (H×V)
    Brightness 370 cd/m² (Typ.)
    Contrast Ratio 450:1 (Typ.) (TM)
    Viewing Angle 70/70/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , 20 pins , Connector
    Backlight 2 CCFL
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
    1× 12.1inch LQ121S1LG45 800X600 LCD Screen
    1× LVDS Cable
    1× Backlight Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
