14" 1366X768 LED Backlight LCD Screen LTN140AT02 BT140XW02 with USB Control Board for 40Pin lcd

Model NO.
K002460 VS-TY2660-899+14inch 1366x768
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

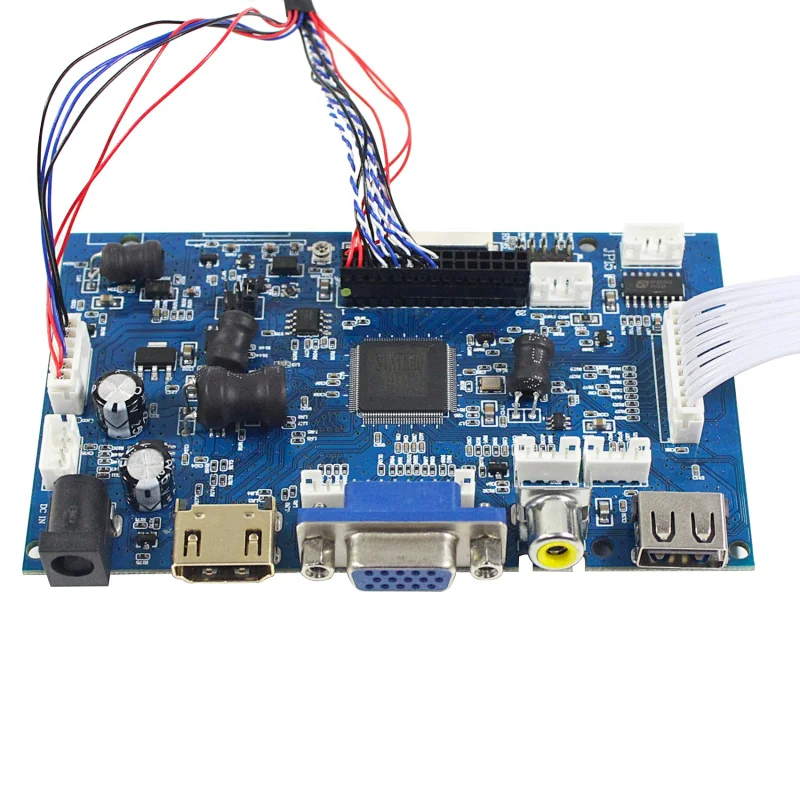

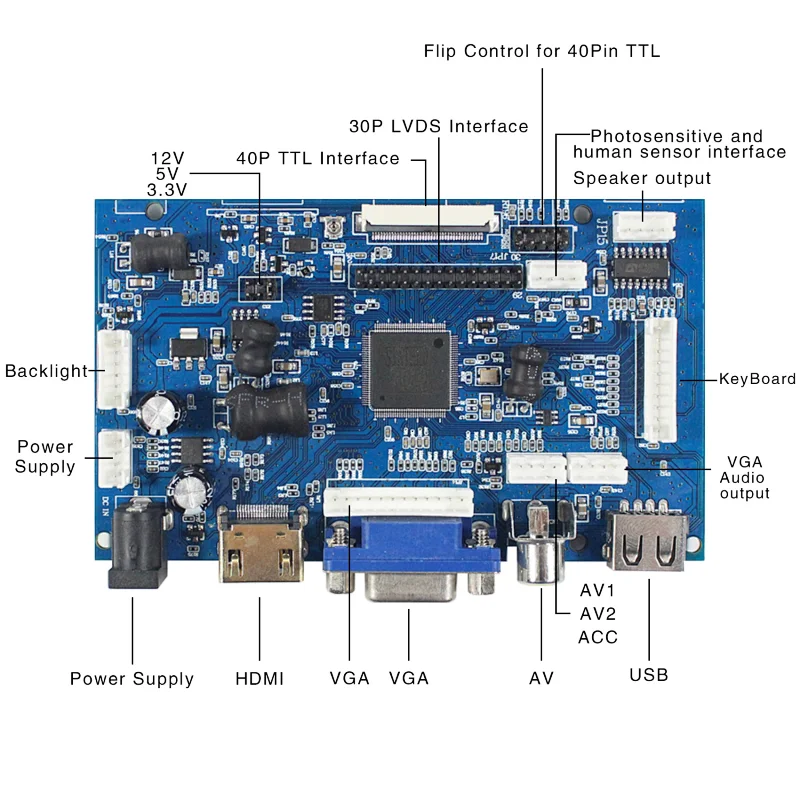

  • LCD Controller Board:
    HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
    Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
    Photoresistors Input Support Automatic brightness adjustment
    External human body induction signal template, automatic startup and shutdown of human body induction
    Video Input: HDMI VGA AV1 AV2 USB
    HDMI: Support HDMI 1.4
    VGA: Support Audio Input
    CVBS2 Channel AV-CVBS
    Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
    USB: Support Video Playback, Picture Playback, Text Playback
    Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
    plugged into the USB of the driver board, the power can be upgraded, and it will automatically
    restart after completed)
    Audio: Speaker Support 8ohm 2W/ 4ohm 2W
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 110mm x 66mm x 12mm

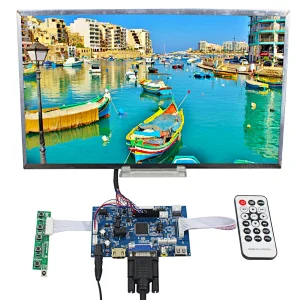

  • 14"1366X768 LED Backlight LCD Screen:
    Display Mode  MVA, Normally Black, Transmissive
    Resolution 1366RGB)×768
    Outline Size 323.5 × 192×5.2(H×V×D)
    Display Area 309.399× 173.952 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 45/45/30/30 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

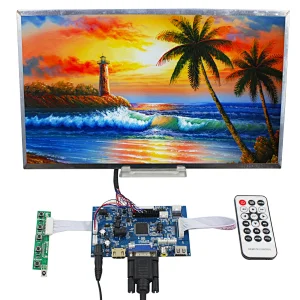

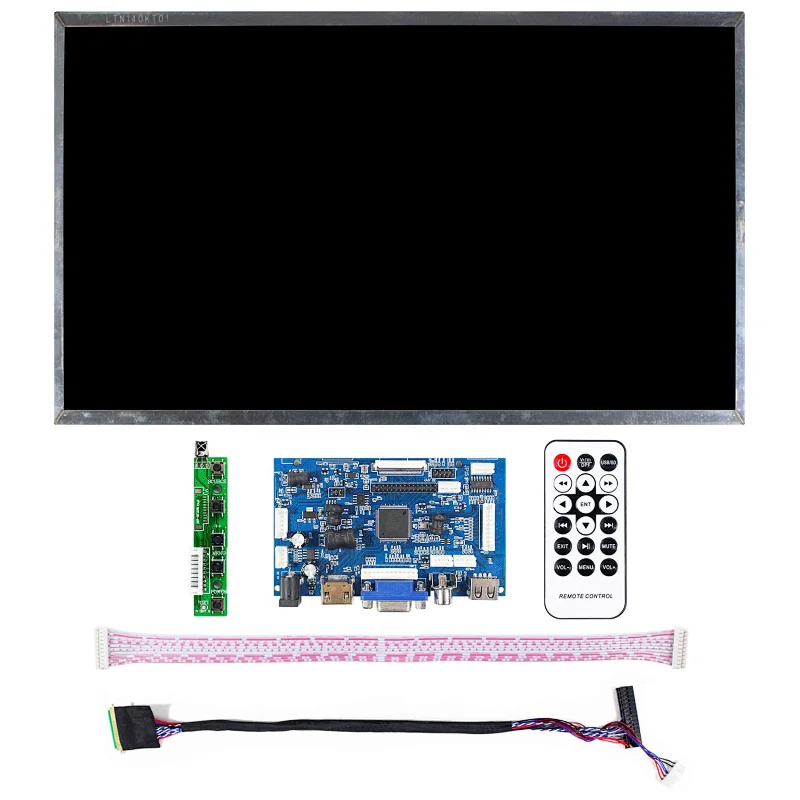

  • Packing list :
    1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
    1× 14inch 1366x768 LED Backlight LCD Screen(One of LTN140AT02 BT140XW02 HT140WXB HSD140PHW1 LTN140AT07 LTN140AT26 LP140WH1 N140B6)
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
