POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer
POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer

POS system 15.6 inch 4K eDP IPS LCD Panel display with control board driver board kits without backlight for 3D printer

Model NO.
K001736 M.NT68676+LQ156T3LW02
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Products Status:Stock
  • Application:LAPTOP
  • Response Time:10ms
  • Brightness:400cd/m
  • Interface Type:DVI
  • Interface Type:S-VIDEO
  • Interface Type:support HDMI input
  • Contrast Ratio:1000:1
  • Resolution:1366 X 768
  • Widescreen:yes
  • Panel Type:IPS
  • Place of Origin:CN
  • Screen Size:15inch
  • Brand Name:VS
  • Outline Dimension:363.8X215.9X10(HXVXD)
  • Display Area:344.2 X 193.5 (HXV)
  • Signal Interface:LVDS (1 ch, 8-bit) , 30 pins , Connector
  • Input Voltage:3.3V (Typ.)
  • Brightness:400 cd
Products Show
Product Description

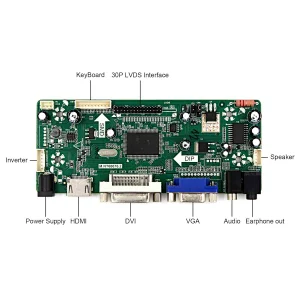

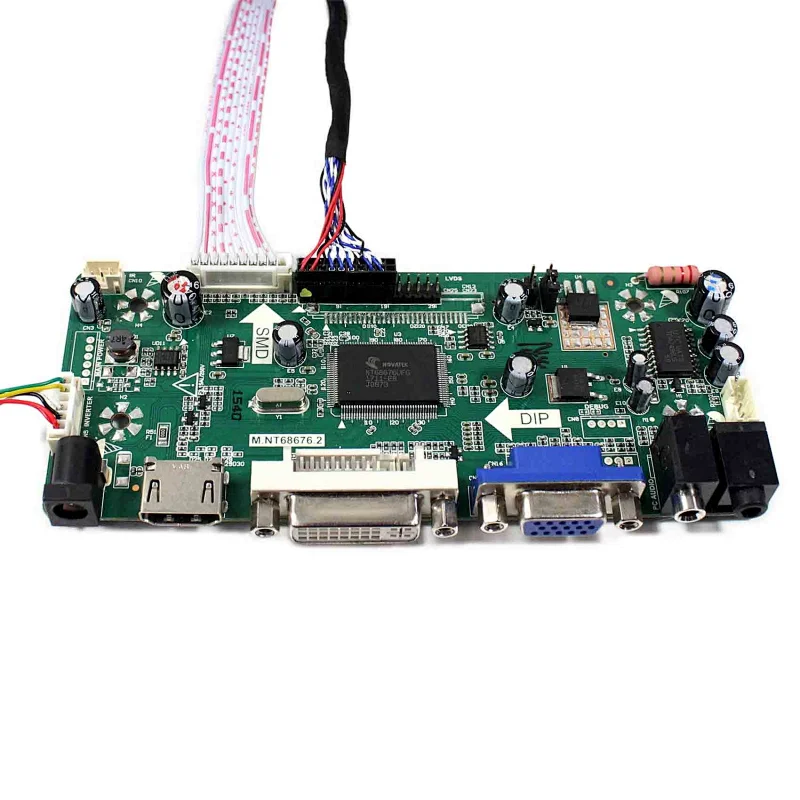

HDMI VGA DVI LCD Controller Board M.NT68676
15.6inch LQ156T3LW02 1366x768 LCD Screen
Product name:
HDMI VGA DVI LCD Controller Board M.NT68676
Details:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HDMI DVI VGA

Audio Input: HDMI

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 125mm x 58mm x 17mm
Product Name:
15.6inch LQ156T3LW02 1366x768 LCD Screen
Details:
Display Mode ASV, Normally Black, Transmissive

Resolution 1366RGB)×768

Outline Size 363.8× 215.9×10(H×V×D)

Display Area 344.2 × 193.5 (H×V)

Brightness 400 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]

Signal Interface LVDS (1 ch, 8-bit) , 30 pins , Connector

Backlight WLED

Input Voltage 3.3V (Typ.)
Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676

1× 15.6inch LQ156T3LW02 1366x768 LCD Screen

1× LVDS Cable

1× Backlight Cable

1× Keyboard With Cable
Hot Sales Product

More ^
LCD Driver Board

More ^
Driver Board+LCD Panel

More ^
Touch Panel
Our Company

Our Company

Our Meeting Office

WorkShop

Our Cusomter Visit Factory

WareHouse

Thousands of goods include the LCD, AD Board, Touch Panel, Cable etc.

Each item have SKU No. Standard goods always have goods in stock.

Our Certifications
Packing & Delivery

Packing Details :

Packing with standard export box, it also can package as your request.

Delivery Details :

3-30 days delivery via DHL, UPS, TNT, FEDEX, HK Register.

Our Customer Product

Video Door Phone

16 x 4 LCD Module use for Video Door Phone

From Romania Customer

Outline Dimension : 87.0 x 60.0 x 10.0/13.5(mm)

LCD Type : STN, POSITIVE

Driver IC : SPLC780D1

Backlight : YG LED

Supply Voltage : 5V

Favorable Comment

10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy

From Europe customer

LCD Size :10.4"

Resolution :800RGB)×600

Outline Size :236 × 174.3×4.9 (H×V×D)mm

Brightness :500 cd/m² (Typ.)

Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector

Input Voltage : 3.3V (Typ.)


Application:
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory for more than 10years in this field.

Q: How long is your delivery time?

A: Generally it is 1-3 days for sample if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for charge, shipping cost depend on the QTY.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: After Service for the product ?

A: We can provide the wireless technology support in any time. If the goods broken during the shipping, pls contact us after received the goods, we will refund your payment or Replenishment deliver.
