HDMI VGA DVI Audio LCD control board M.NT68676 17.3 LP173WF1 B173HW01 N173HGE-L21 HSD173UHW1 1920x1080 lcd pane

Model NO.
K000388 68676+LP173WF1screen 17.3 1920X1080
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

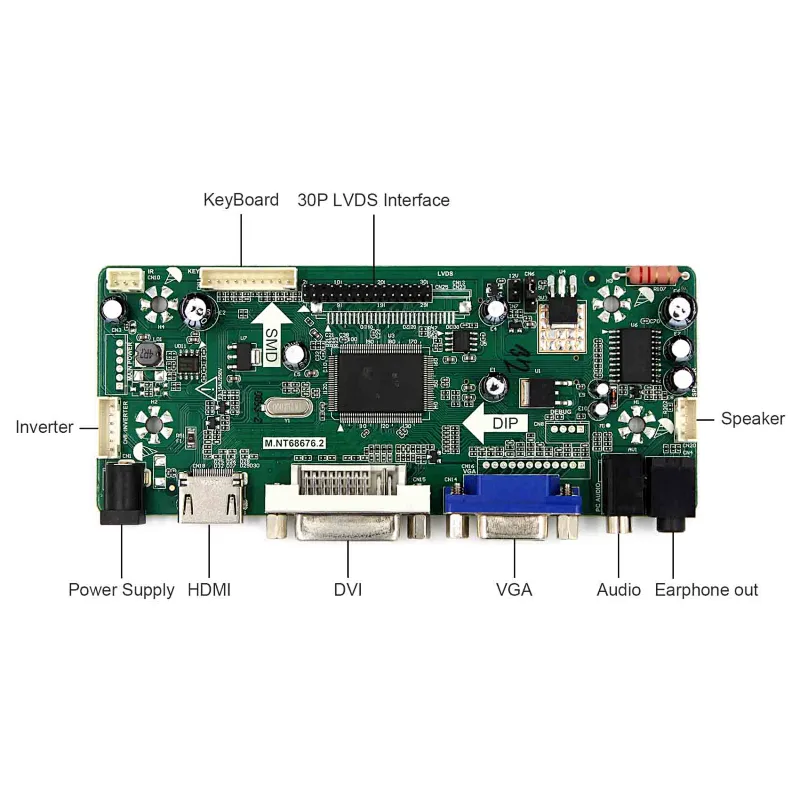

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 3A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 17.3"1920X1080 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 1920RGB)×1080
    Outline Size 398.1 ×232.8×6(H×V×D)
    Display Area 381.89 × 241.81 (H×V)
    Brightness 220 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/60/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (2 ch, 6-bit) , Connector , 40 pins
    Backlight LED
    Input Voltage 3.3V (Typ.)

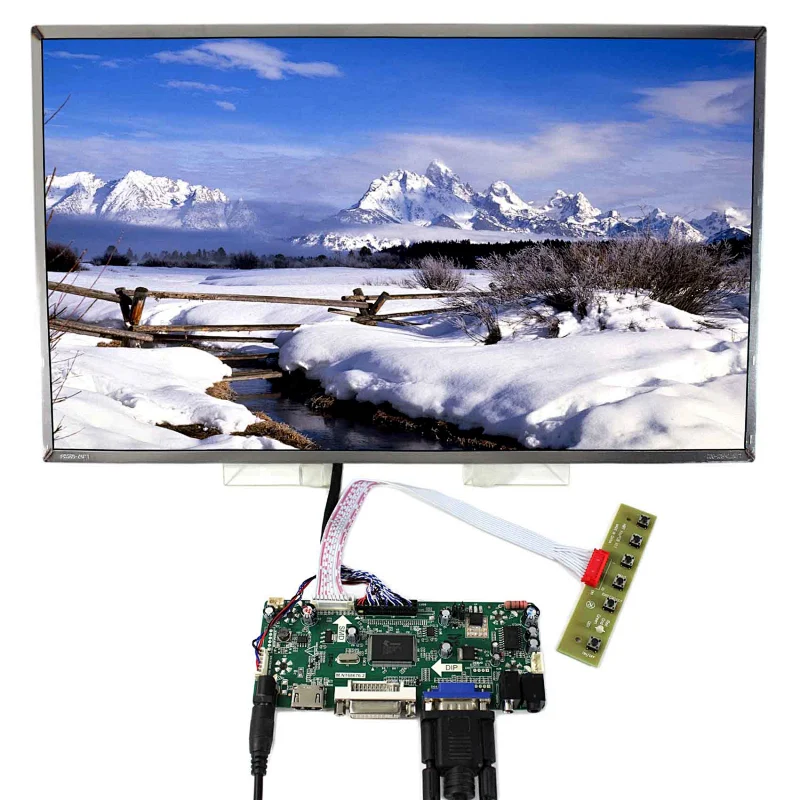

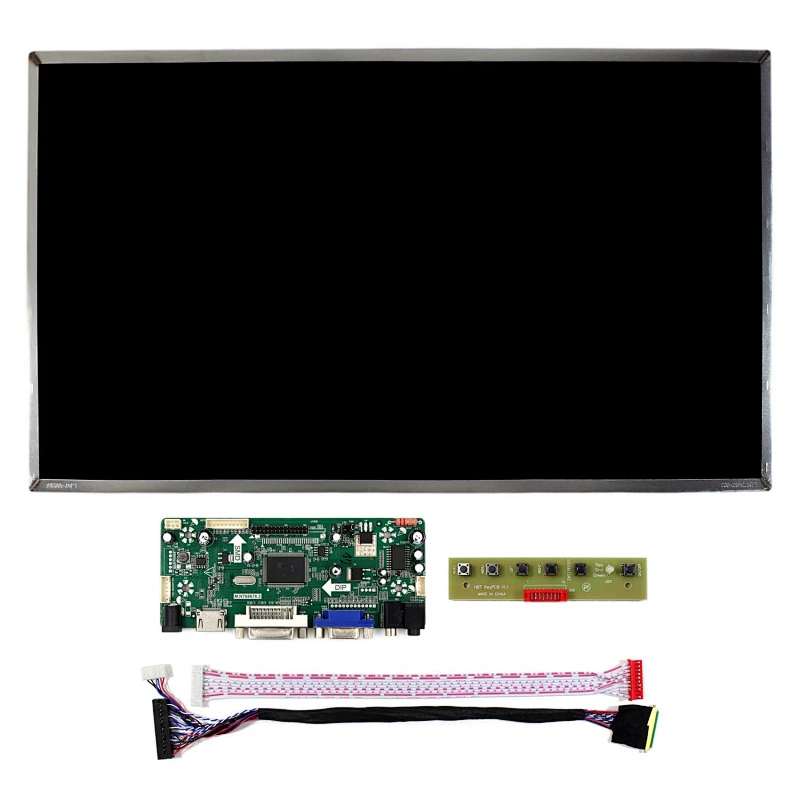

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 17.3inch 1920X1080 LCD Screen (One of LP173WF1 N173HGE-L21 N173HGE-L11 LP173WF1 HSD173UHW1 B173HW01 HSD173PUW1)

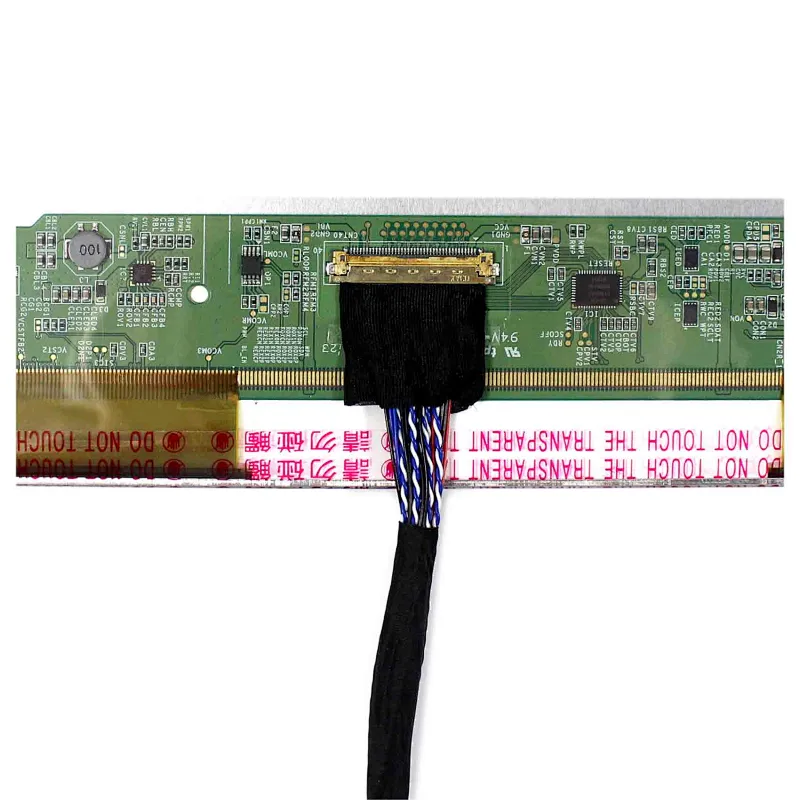

    1× LVDS Cable
    1× Keyboard With Cable
