HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen
HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen

HD MI LCD Controller Board VS-TY2660H-V815 with 40P TTL Interface 8inch HJ080IA-01E 1024X768 IPS LCD Screen

Model NO.
K001989 VS-TY2660H-V815+HJ080IA-01E
Quantity:

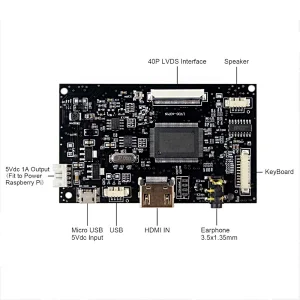

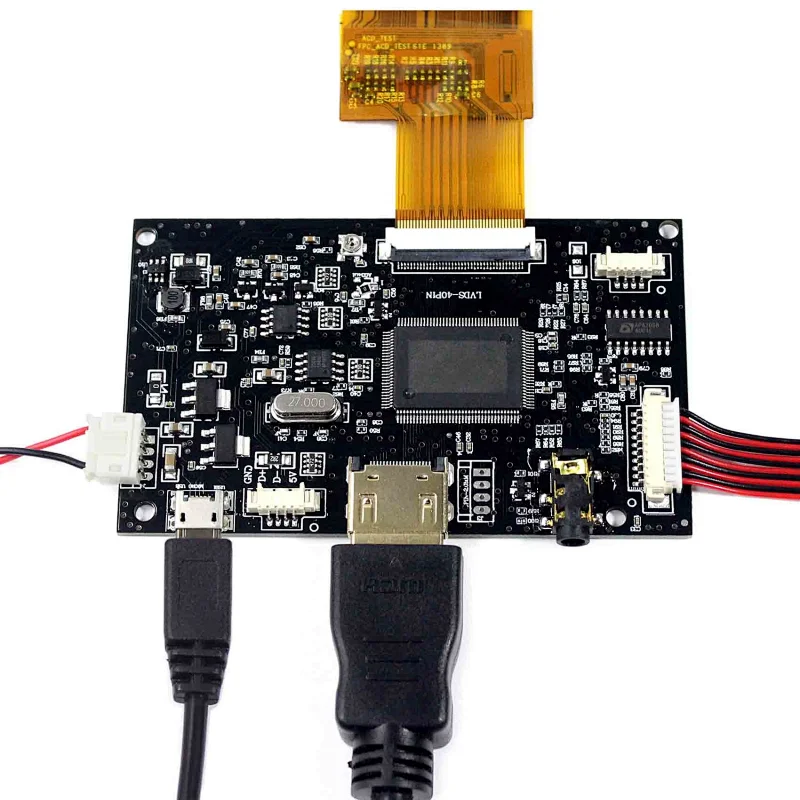

  • LCD Controller Board:
    HD-MI LCD Board Work for 40P TTL Interface LCD Screen
    Input Power Adapter: 5Vdc More than 1A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI
    Audio: Earphone
    Power Connector: PH2.0 Micro USB
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 88mm x 53mm x 7mm
  • 8"HJ080IA-01E 1024X768 LCD Screen:
    Display Mode  IPS, Normally Black, Transmissive
    Resolution 1024RGB)×768
    Outline Size 174 × 136×2.75 (H×V×D)
    Display Area 162.08 × 121.54(H×V)
    Brightness 350 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

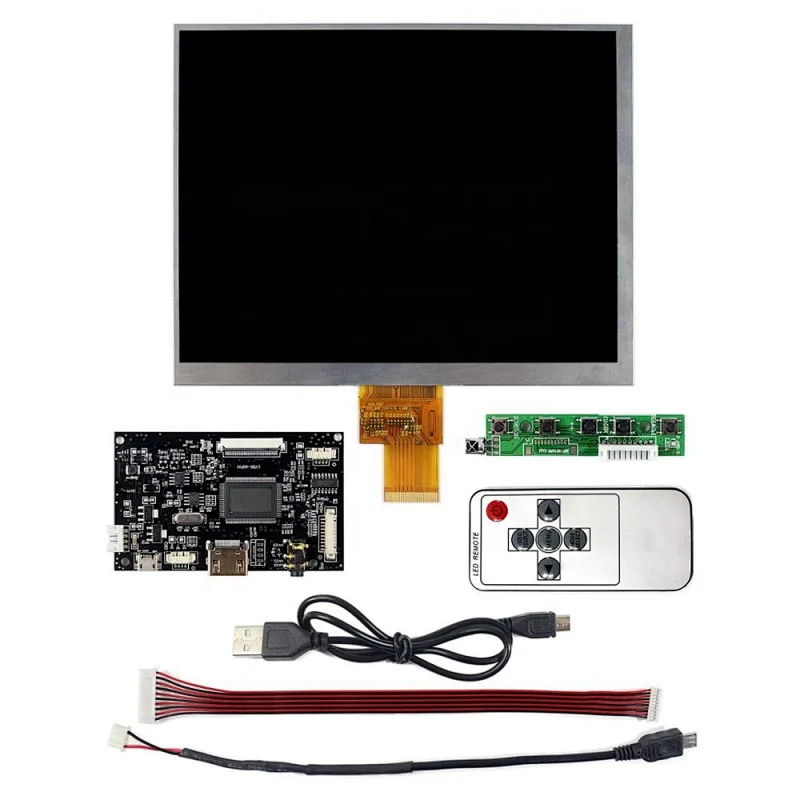

  • Packing list :
    1× HD-MI LCD Controller Board VS-TY2660H-V815
    1× 8inch HJ080IA-01E 1024X768 IPS LCD Screen
    1× USB Power Cable
    1× Keyboard With Cable
