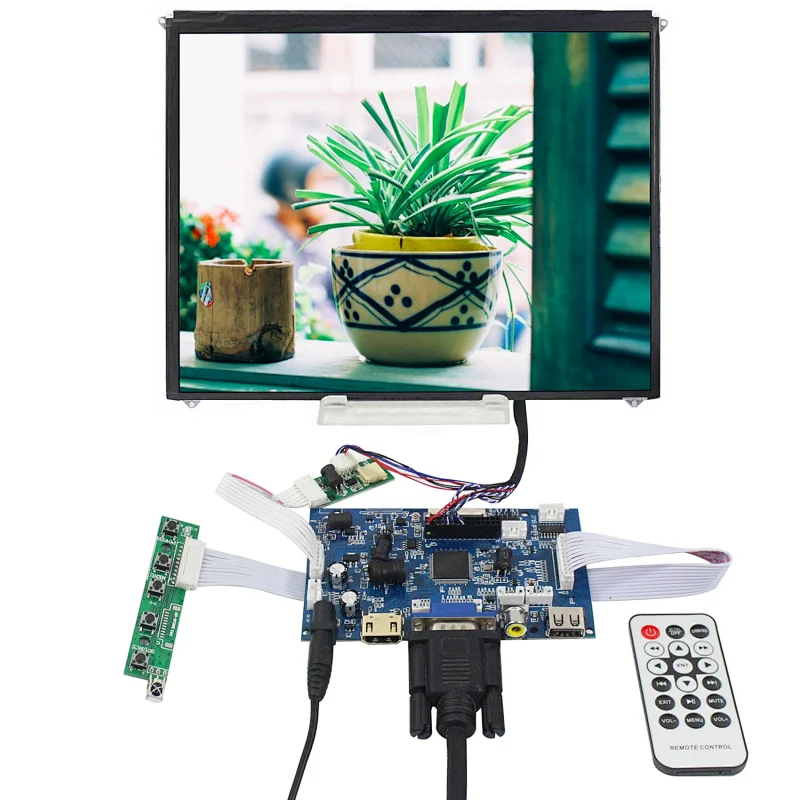

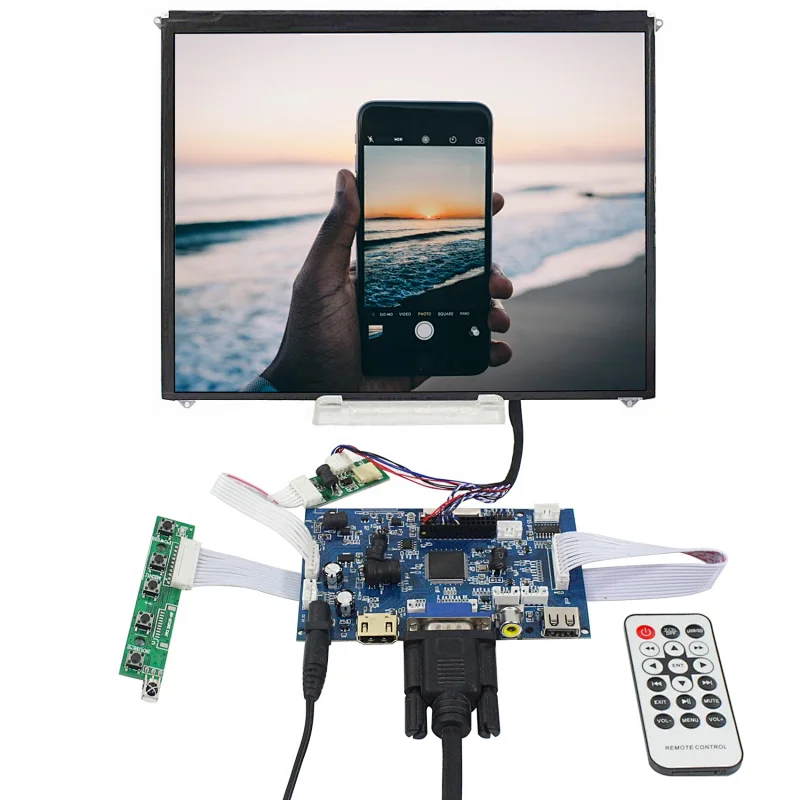

HD MI VGA 2AV USB LCD Board for 40Pin TTL 30Pin LVDS LCD Screen with 9.7" 1024x768 IPS LCD Screen for IPAD 2

Model NO.
K002474 VS-TY2660-899+9.7inch IPD2 IPS lcd panel
Quantity:

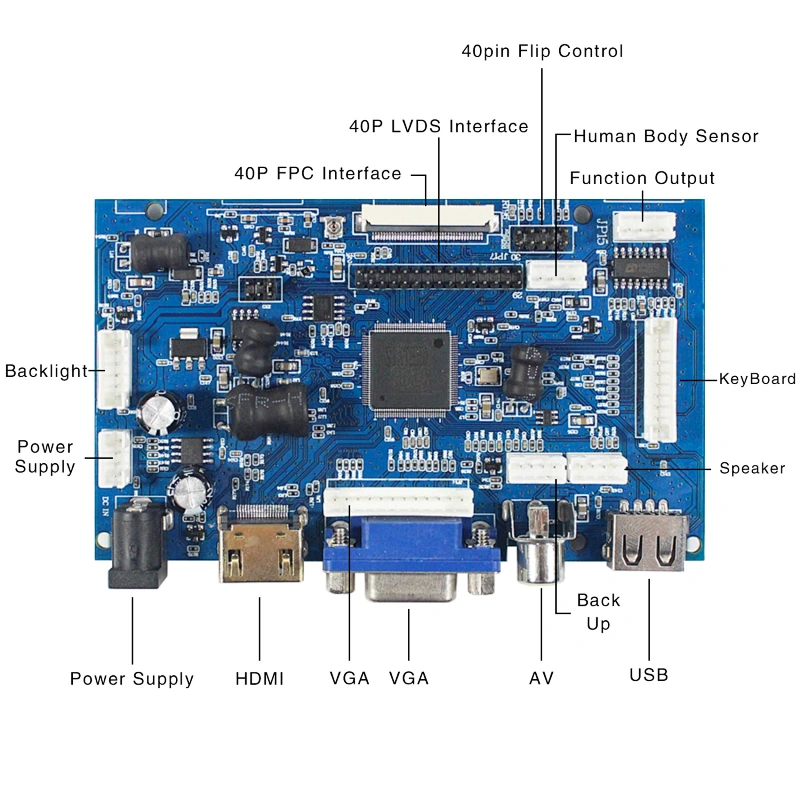

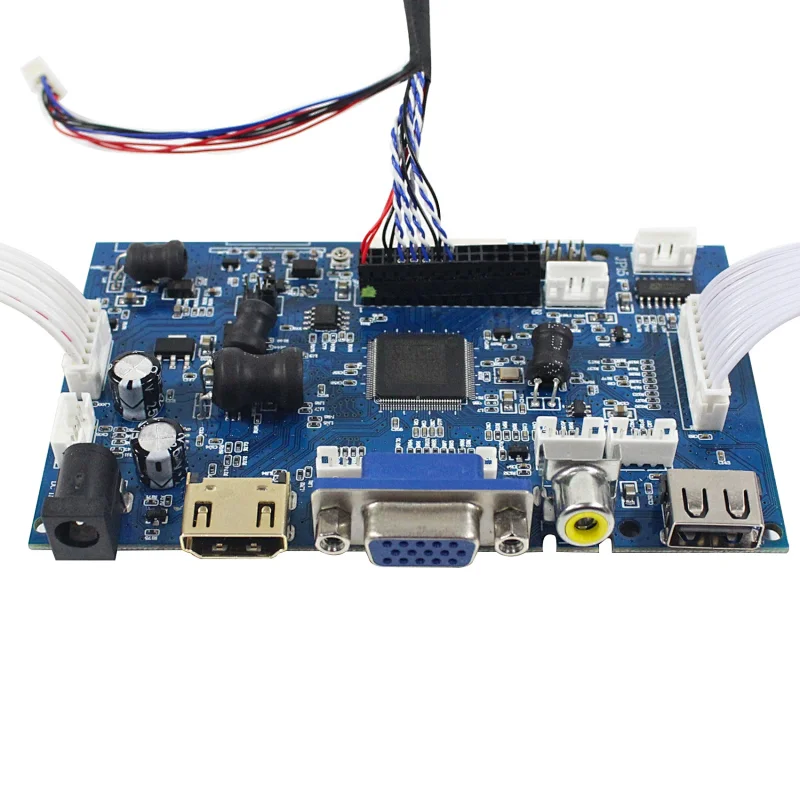

  • LCD Controller Board:
    HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
    Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
    Photoresistors Input Support Automatic brightness adjustment
    External human body induction signal template, automatic startup and shutdown of human body induction
    Video Input: HDMI VGA AV1 AV2 USB
    HDMI: Support HDMI 1.4
    VGA: Support Audio Input
    CVBS：2 Channel AV-CVBS
    Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
    USB: Support Video Playback, Picture Playback, Text Playback
    Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
    plugged into the USB of the driver board, the power can be upgraded, and it will automatically
    restart after completed)
    Audio: Speaker Support 8ohm 2W/ 4ohm 2W
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 110mm x 66mm x 12mm
  • 9.7"1024x768 LCD Screen:
    Display Mode IPS, Normally Black, Transmissive
    Resolution 1024(RGB)×768[XGA]
    Outline Size 210.53×166.53×5.45 (H×V×D)
    Display Area 196.6 ×147.5 (H×V)
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 600:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS(1ch 6bit) Connector 30Pin
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

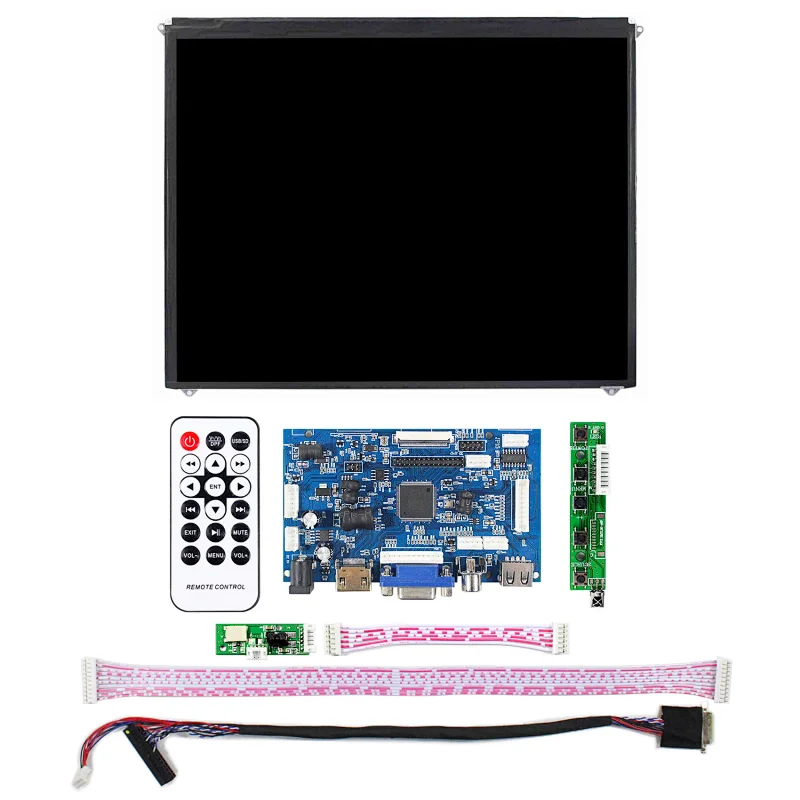

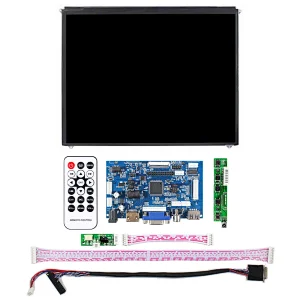

  • Packing list:
    1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
    1× 9.7"1024x768 IPS LCD Screen
    1× Converter Board
    1× 30Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
