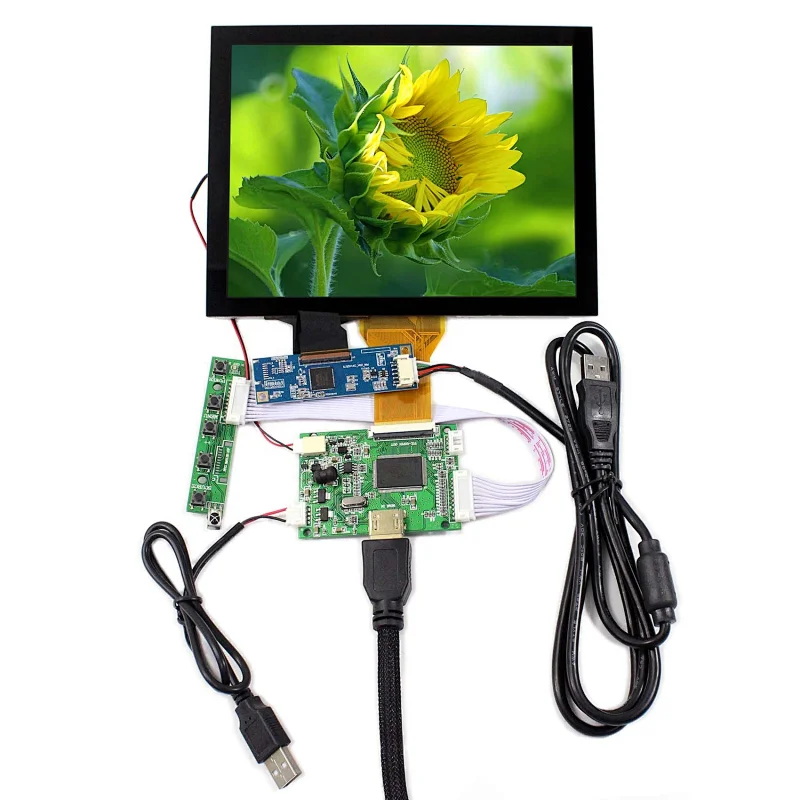

LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution
LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution

LCD Controller Board VS-TY50-V2 VS080TC-A1 8inch Capacitive TouchLCD Screen EJ080NA-05A 800x600 Resolution

Model NO.
Y-K001812 VS-TY50-V2+EJ080NA-05A+VS080TC01-A1
Quantity:

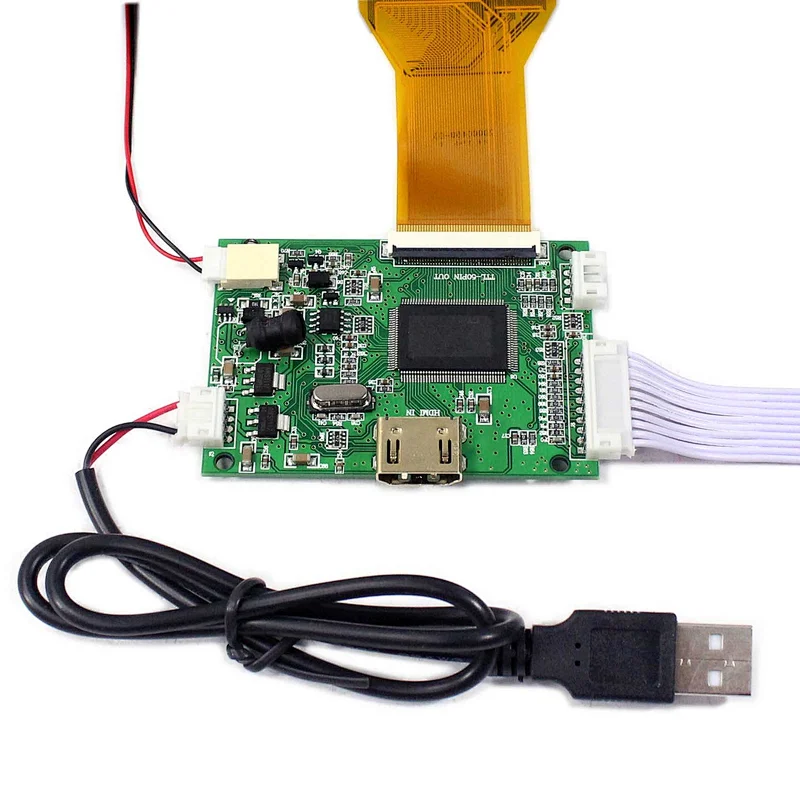

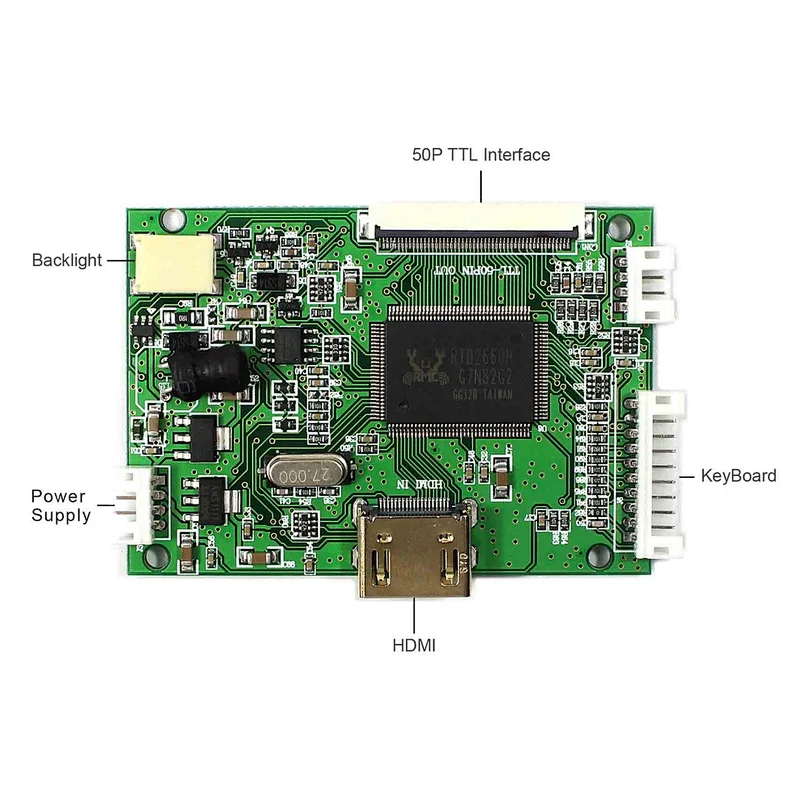

  • LCD Controller Board:
    HDMI LCD Board Work for 50Pin TTL LCD Screen
    Input Power Adapter: 5Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 70mm x 50mm x 8mm
  • 8"EJ080NA-05A 800X600 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 800RGB)×600
    Outline Size 183 × 141×5.9 (H×V×D)
    Display Area 162 × 121.5 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

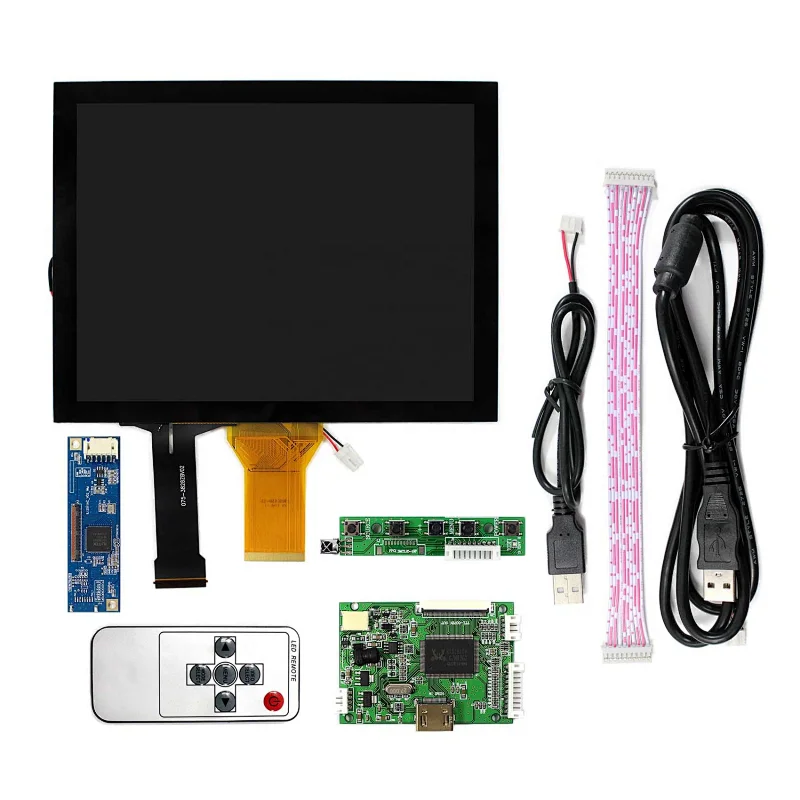

  • Packing list :
    1× HDMI LCD Controller Board VS-TY50-V2

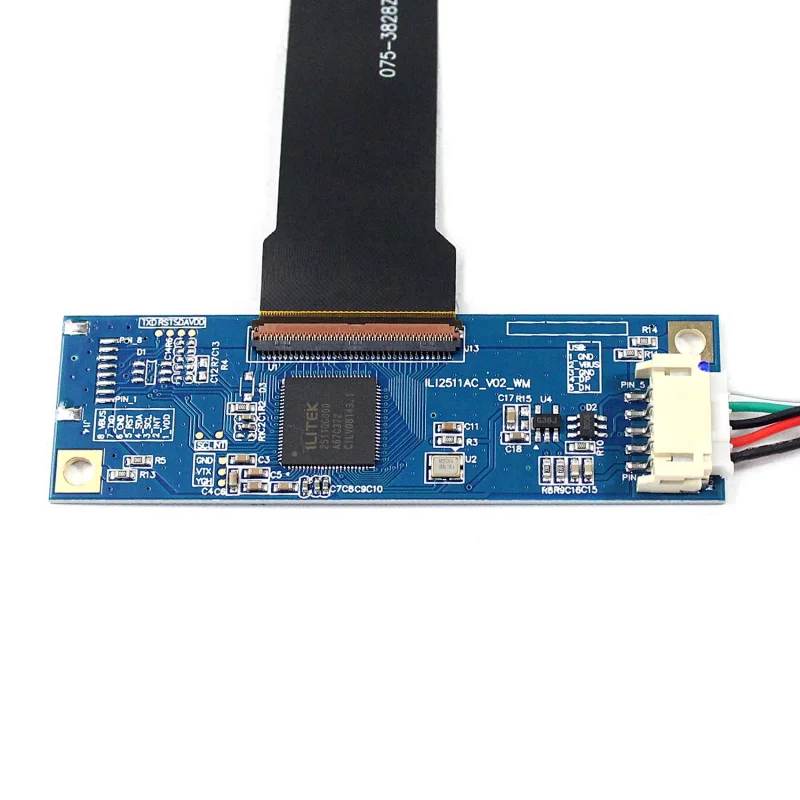

    1× 8inch EJ080NA-05A 800X600 LCD Screen With Capacitive Touch Panel VS080TC-A1
    1× USB Controller Card
    1× USB Cable
    1× USB Power Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
