VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C
VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C

VGA LCD Controller Board Capacitive Touch Panel VS080TC-A1 RT2270C-A 1024x768 Resolution EJ080NA-04C

Model NO.
K001807 RT2270C-A+EJ080NA-04C+VS080TC01-A1
Quantity:

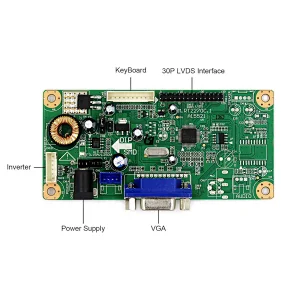

  • LCD Controller Board:
    VGA LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: VGA
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 107mm x 52mm x 18mm
  • 8"EJ080NA-04C 1024X768 LCD Screen:
    Display Mode  TN, Normally White, Transmissive
    Resolution 1024RGB)×768
    Outline Size 183 × 141×3.7 (H×V×D)
    Display Area 162× 121.5(H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 700:1 (Typ.) (TM)
    Viewing Angle 75/75/75/75 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 40 pins , FPC
    Backlight  WLED
    Input Voltage  3.3V (Typ.)

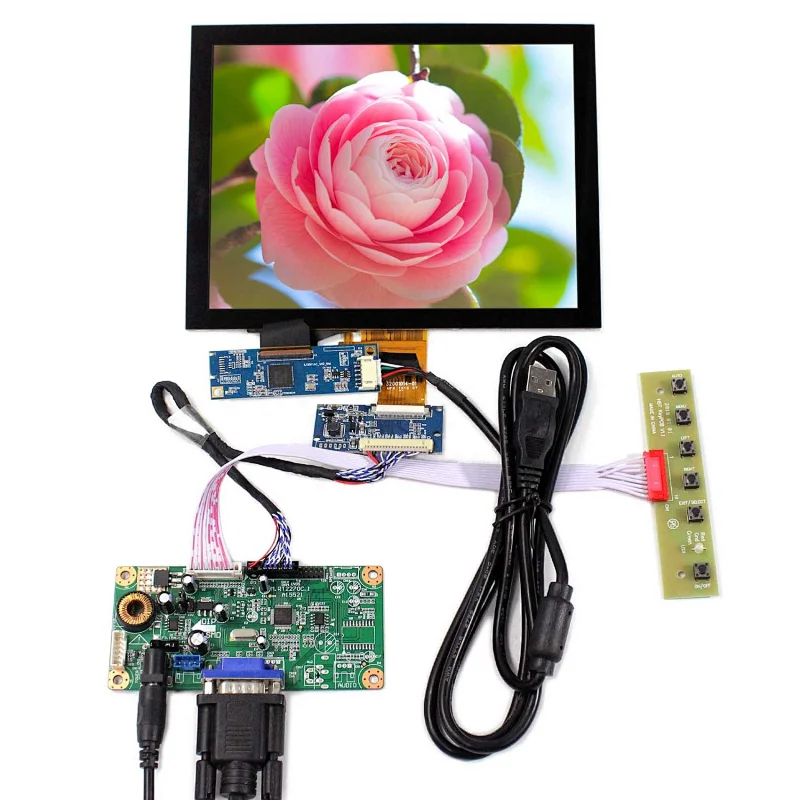

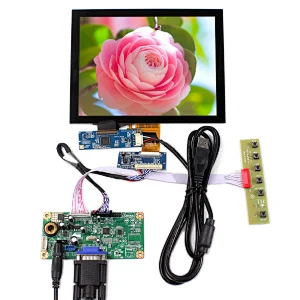

  • Packing list :
    1× VGA LCD Controller Board RT2270C-A
    1×8inch EJ080NA-04C 1024X768 LCD With Capacitive Touch Panel VS080TC-A1

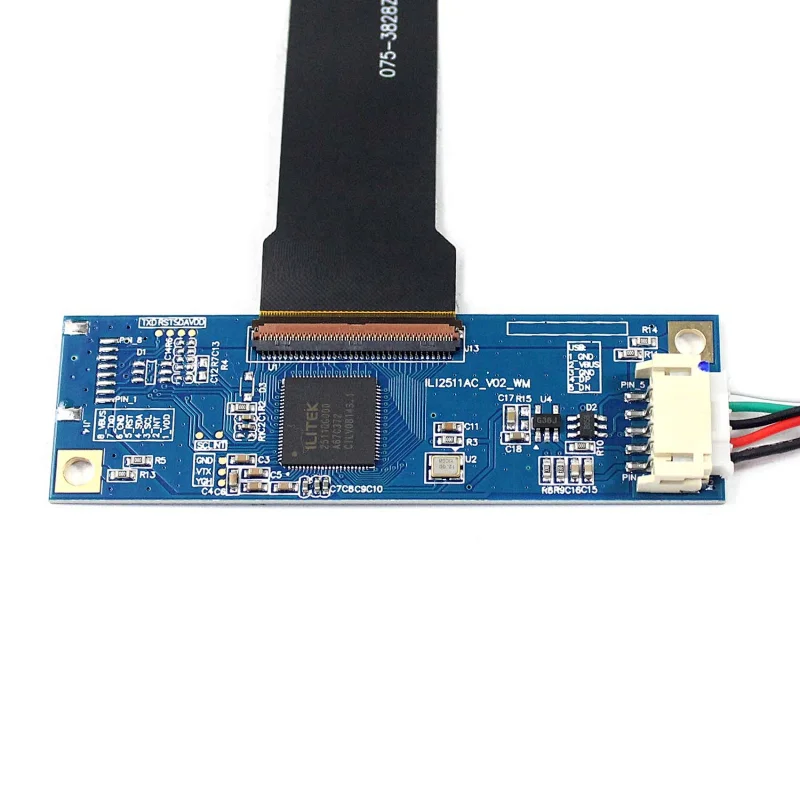

    1× USB Controller Card
    1× USB Cable
    1× Keyboard With Cable
