8inch EJ080NA-05A 800x600 LCD Screen Capacitive Touch Panel Backlight WLED M.NT68676 DVI VGA AUDIO LCD Controller Board

Model NO.
K001806 M.NT68676+EJ080NA-05A+VS080TC01-A1
Quantity:

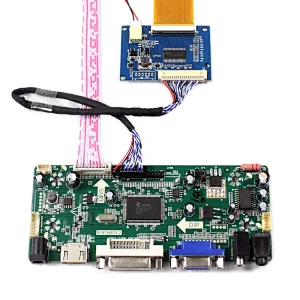

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm
  • 8"EJ080NA-05A 800X600 LCD Screen:
    Display Mode TN, Normally White, Transmissive
    Resolution 800(RGB)×600
    Outline Size 183 × 141×5.9 (H×V×D)
    Display Area 162 × 121.5 (H×V)
    Brightness 250 cd/m² (Typ.)
    Contrast Ratio 500:1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
    Backlight WLED
    Input Voltage 3.3V (Typ.)

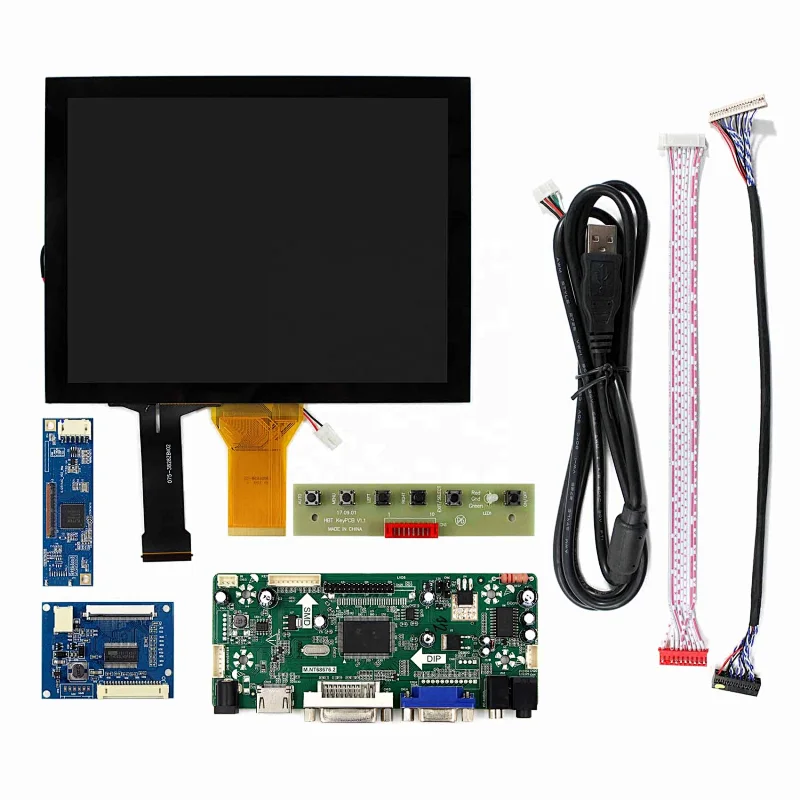

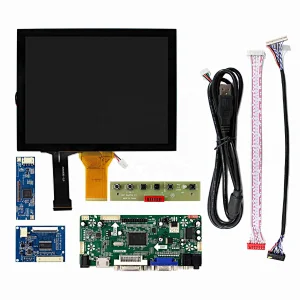

  • Packing list :
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× 8inch EJ080NA-05A 800X600 LCD Screen With Capacitive Touch Panel VS080TC-A1
    1× USB Controller Card
    1× USB Cable
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
