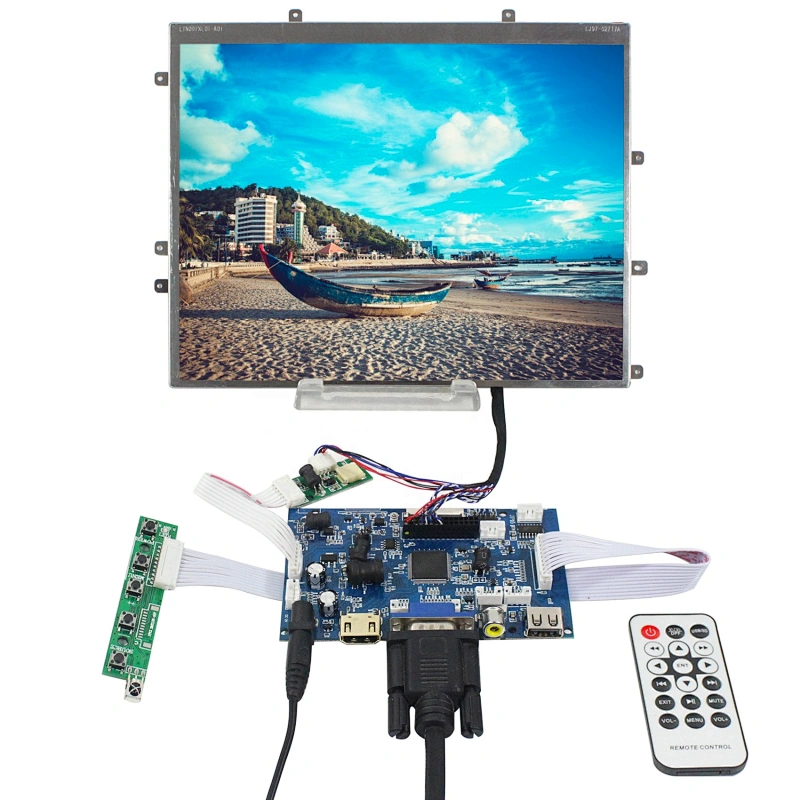

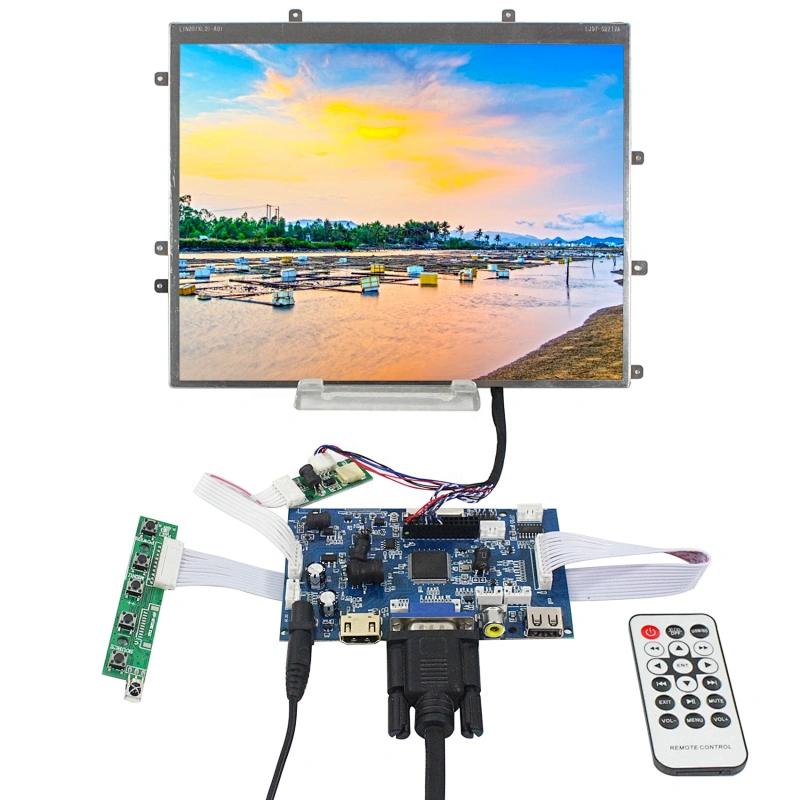

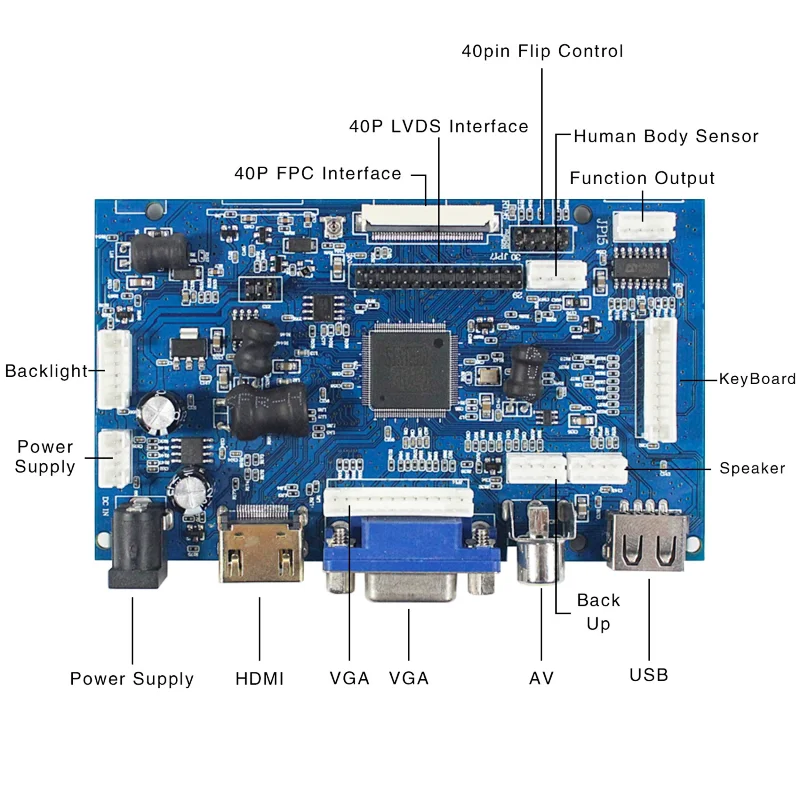

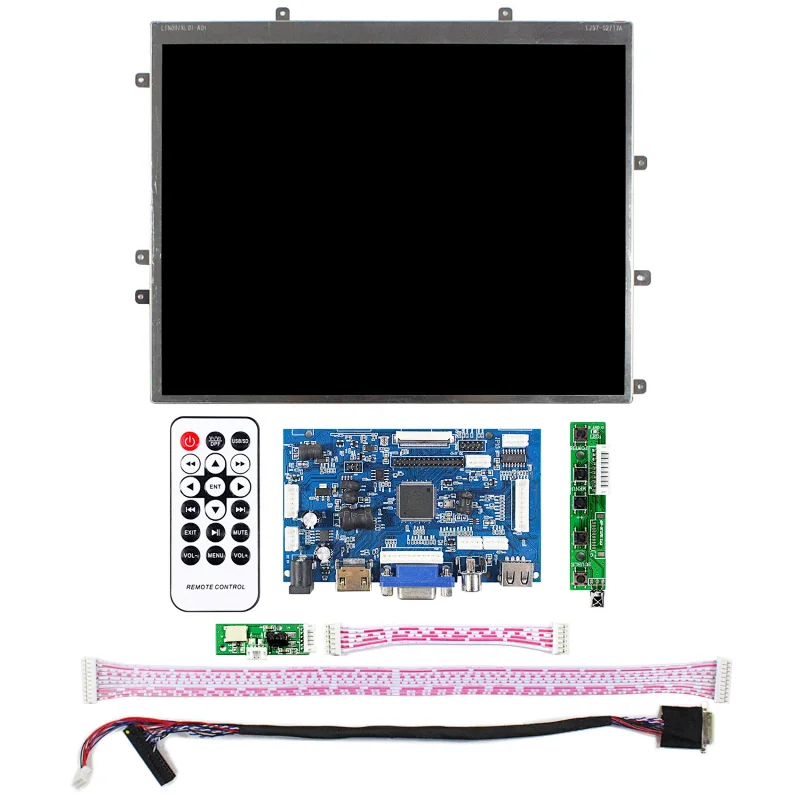

HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel： 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS：2 Channel AV-CVBS
Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and plugged into the USB of the driver board, the power can be upgraded, and it will automatically restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

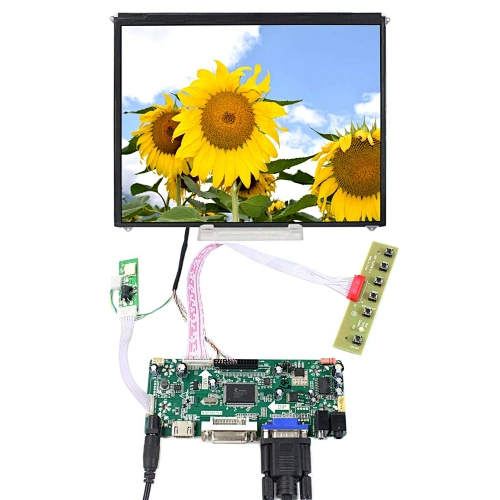

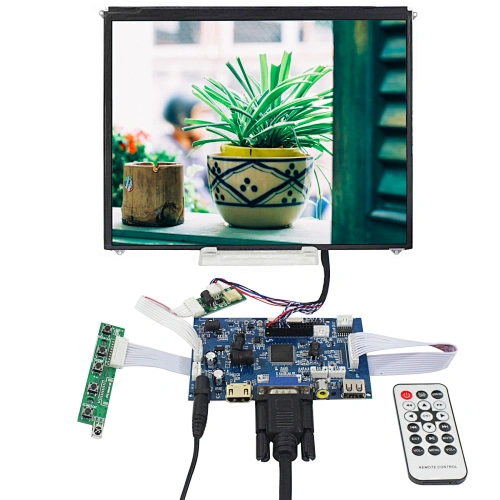

9.7"1024x768 LCD Screen
Outline Size 210.53× 166.53×5.45 (H×V×D)
Display Area 196.6 ×147.5 (H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 600:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
10.4inch 800x600, 1024x768 tft lcd use for Aerial photograpy
From Europe customer
LCD Size :10.4"
Outline Size :236 × 174.3×4.9 (H×V×D)mm
Brightness :500 cd/m² (Typ.)

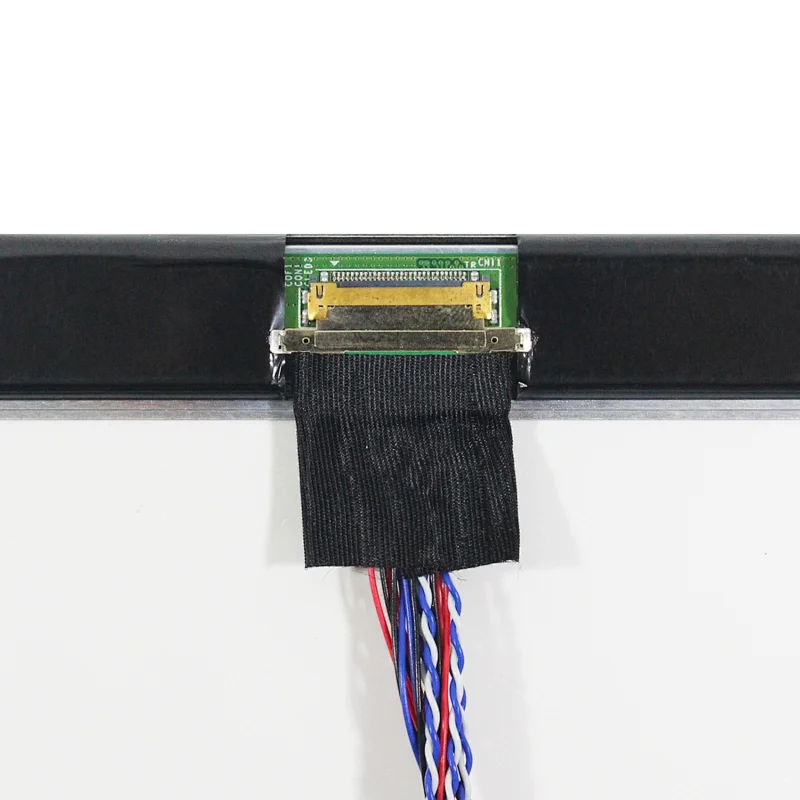

Signal Interface :LVDS (1 ch, 6-bit) , 20pins, Connector
Input Voltage : 3.3V (Typ.)
