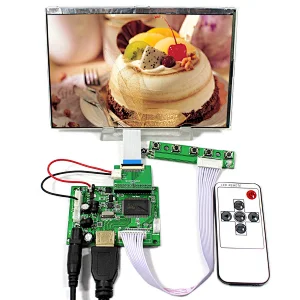

HDMI LCD Controller Board VS-TY2660H-V1 with 7" HSD070PWW1-C00 1280X800 LCD Screen+Remote control

Model NO.
K001235 VS-TY2660H-V1+HSD070PWW1-C00
Quantity:
  • LCD Controller Board:
    HDMI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter:12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size:74mm x 53mm x 12mm
  • 7"HSD070PWW1-C00 1280X800 LCD Screen:
    Display Mode HS-IPS, Normally Black, Transmissive
    Resolution 1280RGB)×800
    Outline Size 161.6 ×105.8×5 (H×V×D)
    Display Area 150.72 × 94.2 (H×V)
    Brightness 690 cd/m² (Typ.)
    Contrast Ratio 800:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface  LVDS (1 ch, 6-bit) , Connector , 30 pins
    Backlight LED
    Input Voltage 3.3V (Typ.)

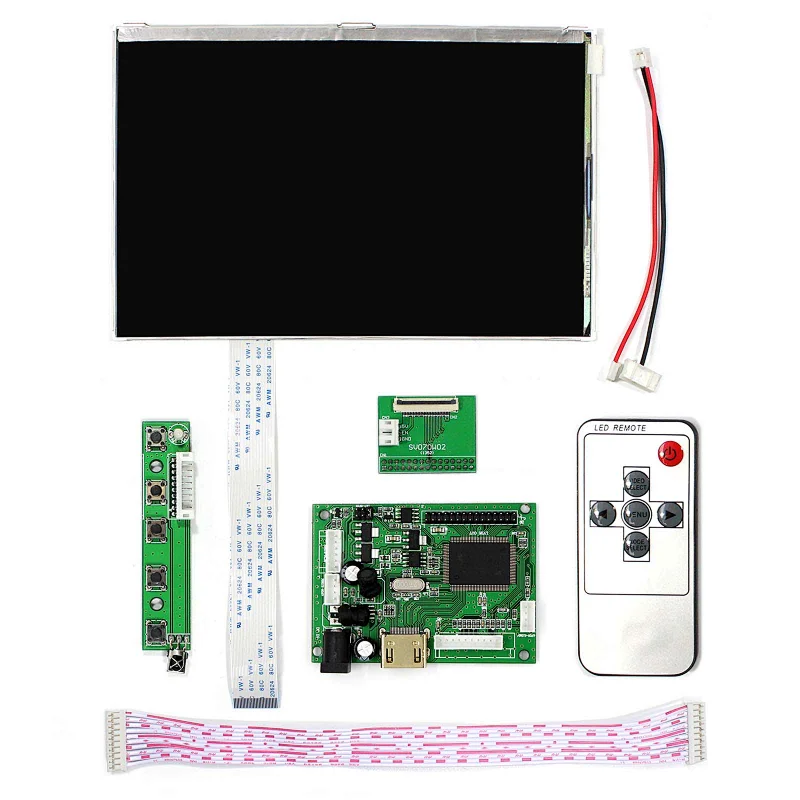

  • Packing list :
    1× HDMI LCD Controller Board VS-TY2660H-V1
    1× 7inch HSD070PWW1-C00 1280X800 LCD Screen
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
    1× Remote Control(Battery Not included)
