HD MI VGA AV USB RF TV Board Work for 15.4" LP154WP1 17inch B170PW03 1440X900 LVDS TFT LCD Module

Model NO.:
K002327 T.VST56.031-P for 1440x900
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:LCD Control Board
  • Video Input:HD MI VGA AV USB RF TV
  • Application:Industrial Application
  • Audio Input:HD MI PC-Audio
  • Audio Output:Speaker Connector
  • Board Size:188mm x 43mm x 17mm
  • Payment:TT or Paypal
  • Place of Origin:CN;GUA
  • Type:TFT with Board
  • Display Size:15.4 OR 17INCH
  • Supplier Type:Manufacture
  • Model Number:K002327 T.VST56.031-P for 1440x900
  • Brand Name:VS
Products Show
Product Description

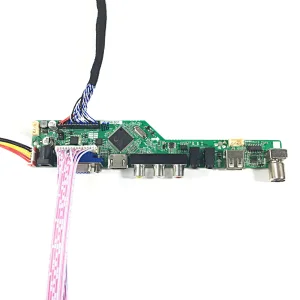

HD MI VGA AV USB RF LCD Board T.V56.03Work for LVDS Interface LCD Screen work for 15.4inch 17inch 1440x900 TFT LCD
Product name:
HD MI VGA AV USB RF LCD Board T.V56.03 Work for LVDS Interface LCD Screen
Board Details:
Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

HD MI Port Support Transform Audio Compatible With HD MI 1.3/1.4,HDCP 1.2

USB Support Video

AV Compatible With PAL And NTSC

Video Input: HD MI VGA AV USB RF

Audio Input: HD MI PC-Audio

Audio Output: Speaker Connector

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 188mm x 43mm x 17mm

Compatible Work With:

15.4inch 1440x900
CLAA154WP05 B154PW01V.1 N154C3 N154C1-L01 N154C1-L02 LP154WP1 LTN154BT05

17inch 1440x900
B170PW03 B170PW06 LP171WP4 LTN170X2 B170PW01 LTN170WX LP171WX2 LTN170BT08 LP171WPA

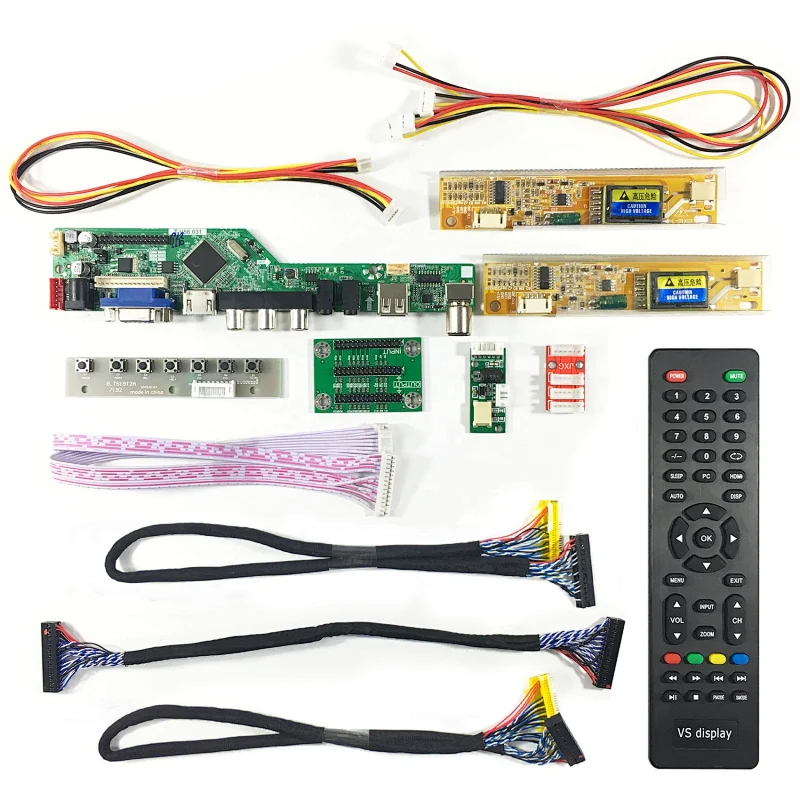

Packing list :
1× HD MI VGA AV USB RF LCD Controller Board T.V56.03

One Controller Board Same Work For Two Controller Board

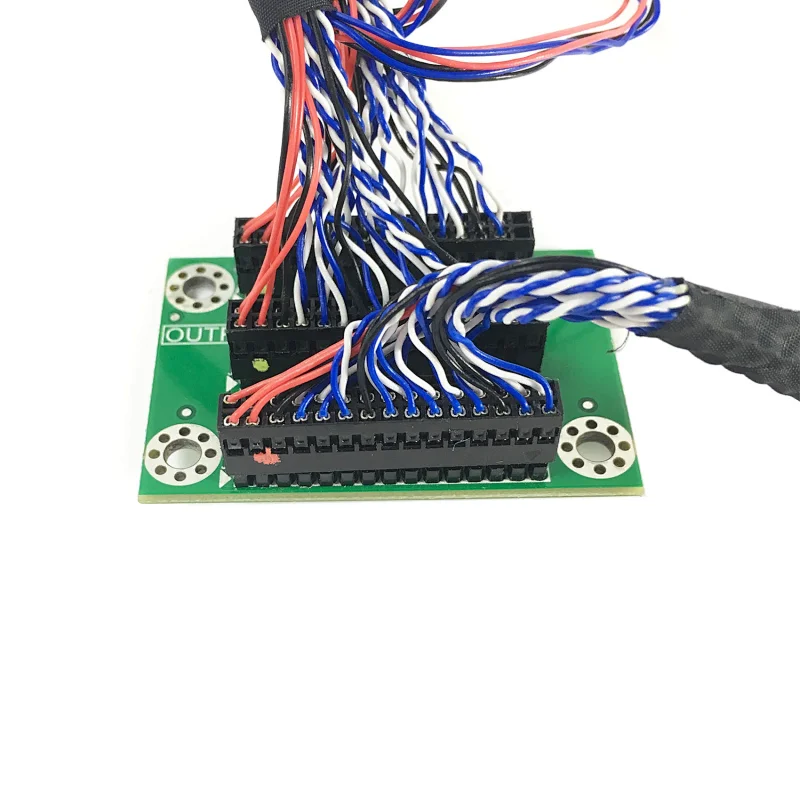

1× 1 To 2 Converter Adapter

1× Adapter Cable

2× CCFL Converter Board

2× 30Pin Signal Cable

1× Keyboard With Cable

1× Remote Control (Battery Not included)
