Model NO.
K002003 MP118TFL42+M.NT68676 For LC420EUN SDF1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:

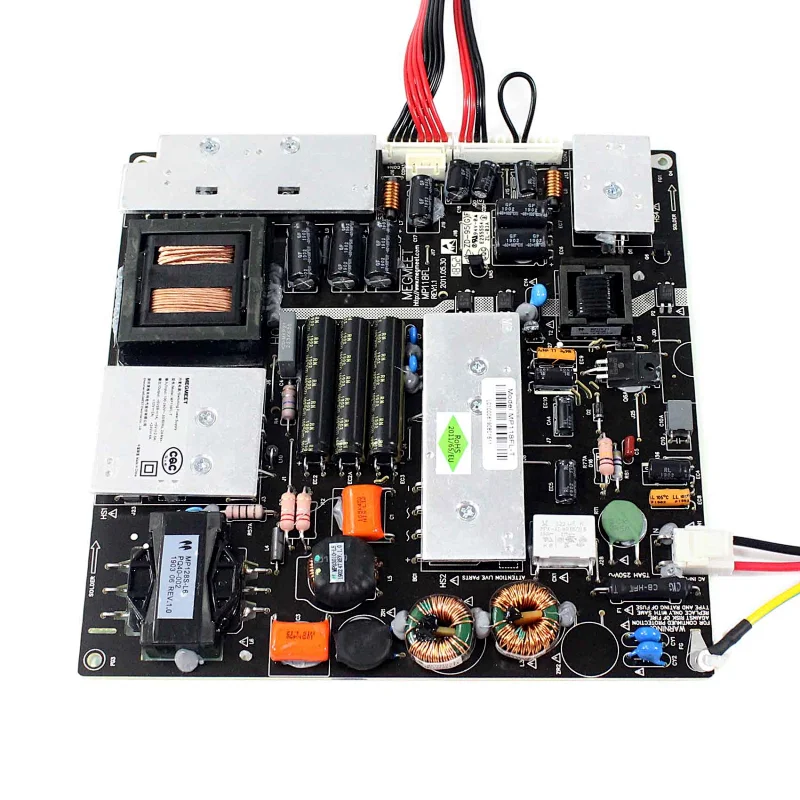

  • Power Board For Backlight:
    Input voltage range: 90Vac to 264Vac
    Normal voltage range: 100Vac to 240Vac
    Frequency range: 50Hz/60Hz±5%
    Max input ac current: 2.0Amax at full load condition
    Inrush current (cold start): 50Atyp peak, 120Vac;100Atyp peak, 220Vac
    Efficiency(full load): 83%min at 90Vac; 86%min at 220Vac Typ.
    Leakage Current: Less Than 0.5mA, 240Vac input
    Standby Power Consumption: 0.5W; 240Vac/50Hz input,+5.2VSB output
    current_20mA
    Input Fuse: T5.0AH/250Vac
    Output Voltage & Current Regulation
    +5.2VSB 0.01A/0.5A/1.0AMin/Rate/Peak Current
    +5.2V  0.2A/2.0A/2.5AMin/Rate/Peak Current
    +12V  0.3A/2.0A/3.0AMin/Rate/Peak Current
    +24V  0.2A/3.3A/4.0AMin/Rate/Peak Current
    Board Size: 180mm x 180mm x 11mm
    Weight: 500g

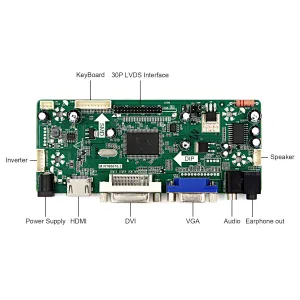

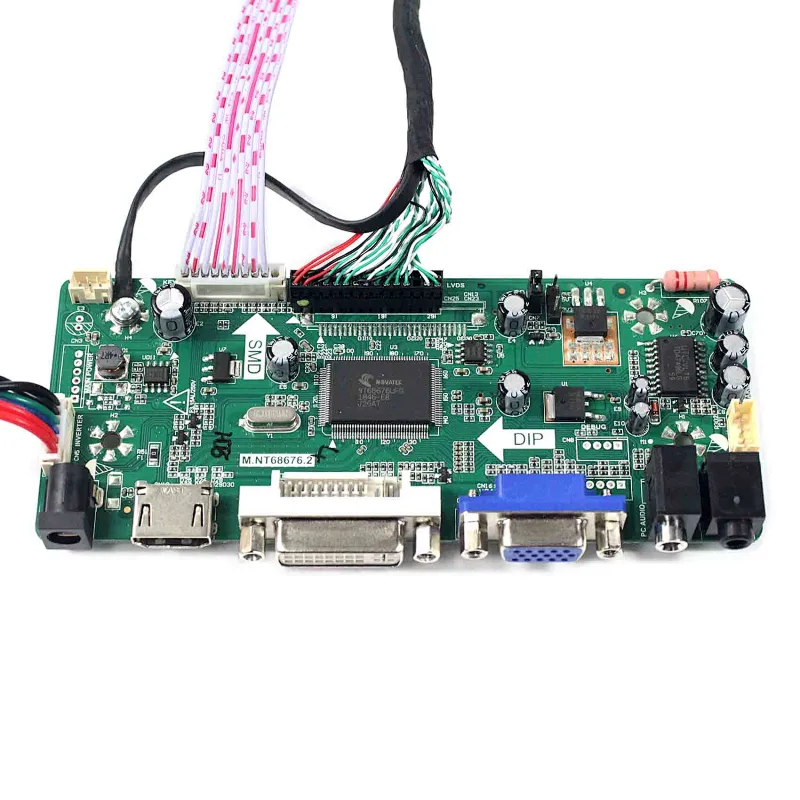

  • LCD Controller Board:
    HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI DVI VGA
    Audio Input: HDMI
    Audio Output: Speaker Connector
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 125mm x 58mm x 17mm

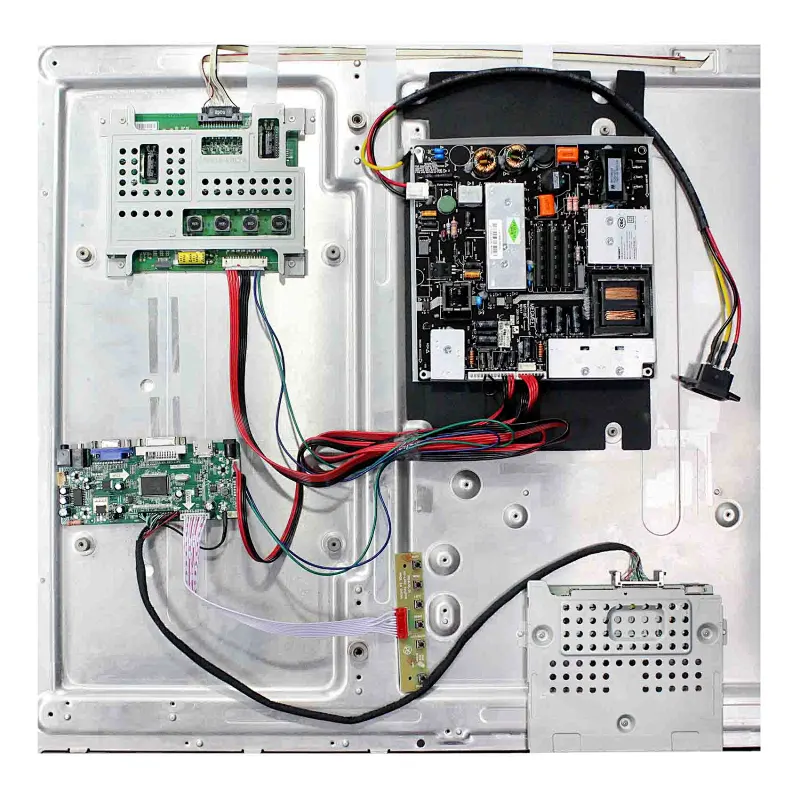

  • Compatible Work With:
    42inch 1920x1080
    LC420EUN

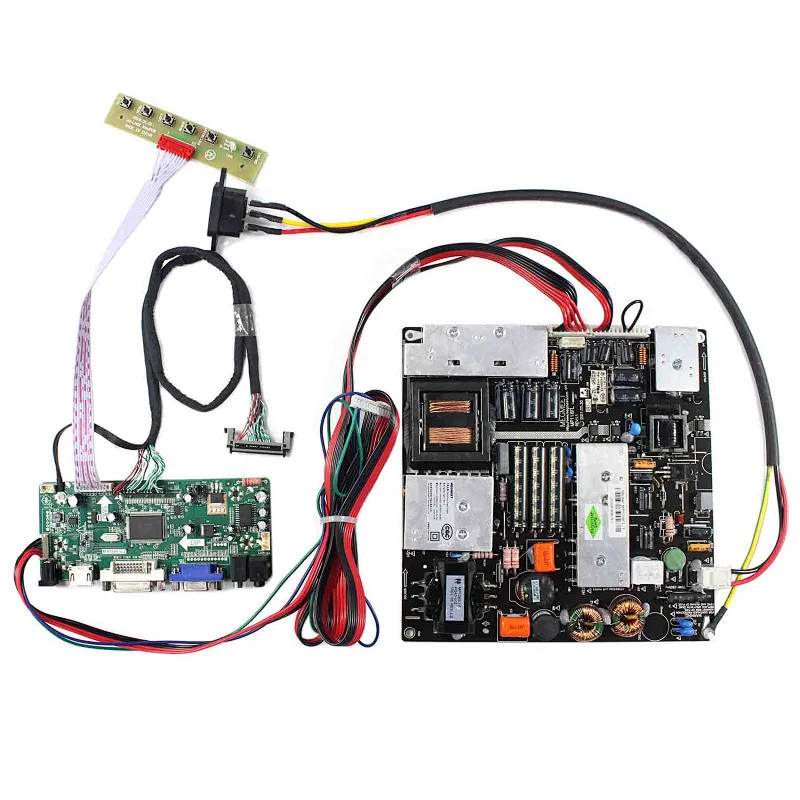

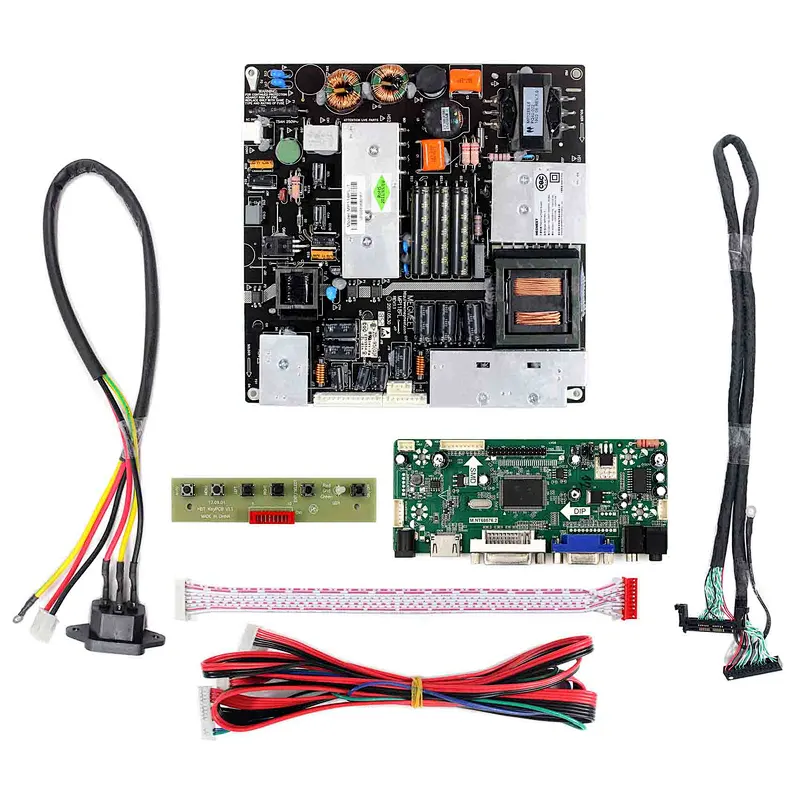

  • Packing list :
    1× Power Supply Board For Backlight MP118TFL42
    1× HDMI VGA DVI LCD Controller Board M.NT68676
    1× LVDS Cable
    1× Connect Cable
    1× Power Supply Cable
    1× Keyboard With Cable
