- Type:TFT
- Board Size:95mm x 85mm x 3mm
- Standby Model:<0.3W
- Audio Input:HD MI
- Audio Output:Speaker Earphone
- Display New Mode2:Normally Black, Transmissive
- Resolution:1200RGB)x1920
- Brightness:300 cd/m2 (Typ.)
- Contrast Ratio:1200:1 (Typ.) (TM)
- Signal Interface:MIPI (2 ch, 4 data lanes) , 40 pins , Connector
- Place of Origin:CN;GUA
- Type:TFT with Board
- Display Size:7inch
- Model Number:K002213 VS-CX70DT900-V1+HX7002A 1200x1920+speaker
- Brand Name:VS
Products Show
Product Description

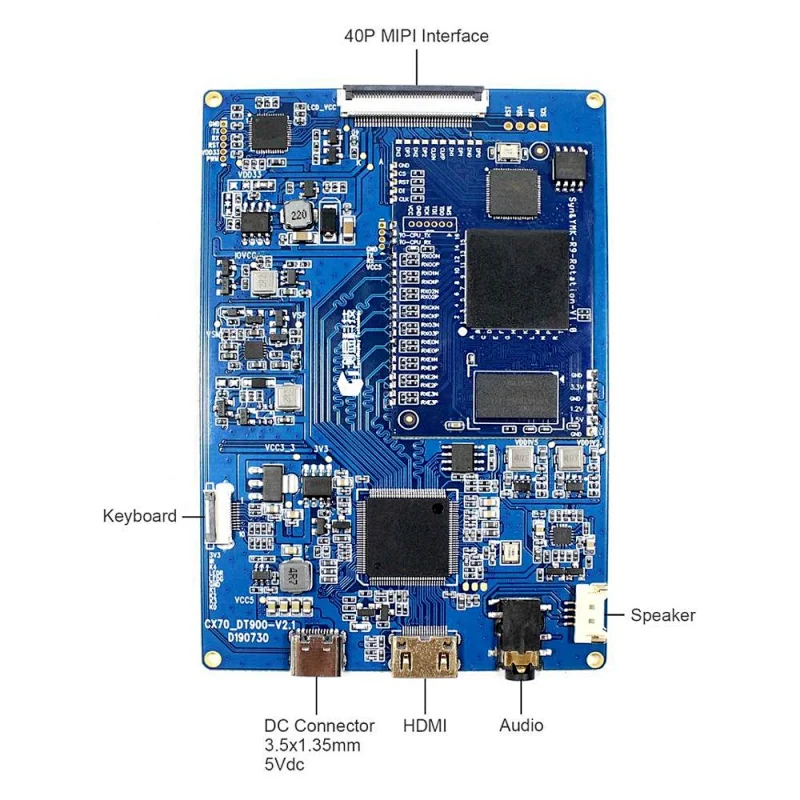

HD MILCD Controller Board VS-CX70DT900-V1
7inch HX7002A 1200X1920 LCD Screen
7inch HX7002A 1200X1920 LCD Screen

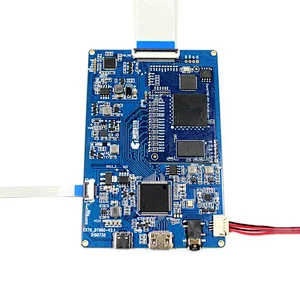

Product name: | HD MILCD Controller Board VS-CX70DT900-V1 | ||||||
Details: | HD MI Board Work for 40Pin Mipi LCD Screen Input Power Adapter: 5Vdc More than 1A.Type-C Come In Standby Model When Not Input Signal Standby Model <0.3W OSD: Support Menu Contrast Brightness Audio Input: HD MI Audio Output: Speaker Earphone Language: English Board Size: 95mm x 85mm x 3mm | ||||||

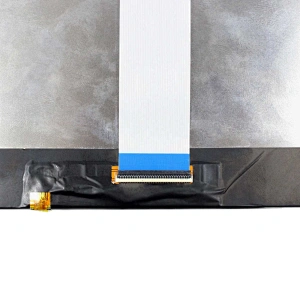

Product Name: | 7"HX7002A 1200X1920 LCD Screen | ||||||
Details: | Display New Mode2, Normally Black, Transmissive Resolution 1200RGB)×1920 Outline Size 98.7 ×160.8×2(H×V×D) Display Area 94.5× 151.2 (H×V) Brightness 300 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) (TM) Viewing Angle 89/89/89/89 (Typ.)(CR≥10) [Left / Right / Up / Down] Signal Interface MIPI (2 ch, 4 data lanes) , 40 pins , Connector Backlight WLED Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN) | ||||||

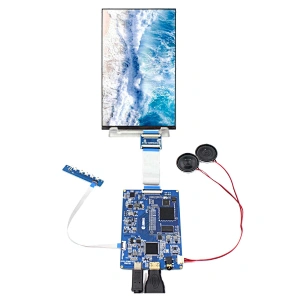

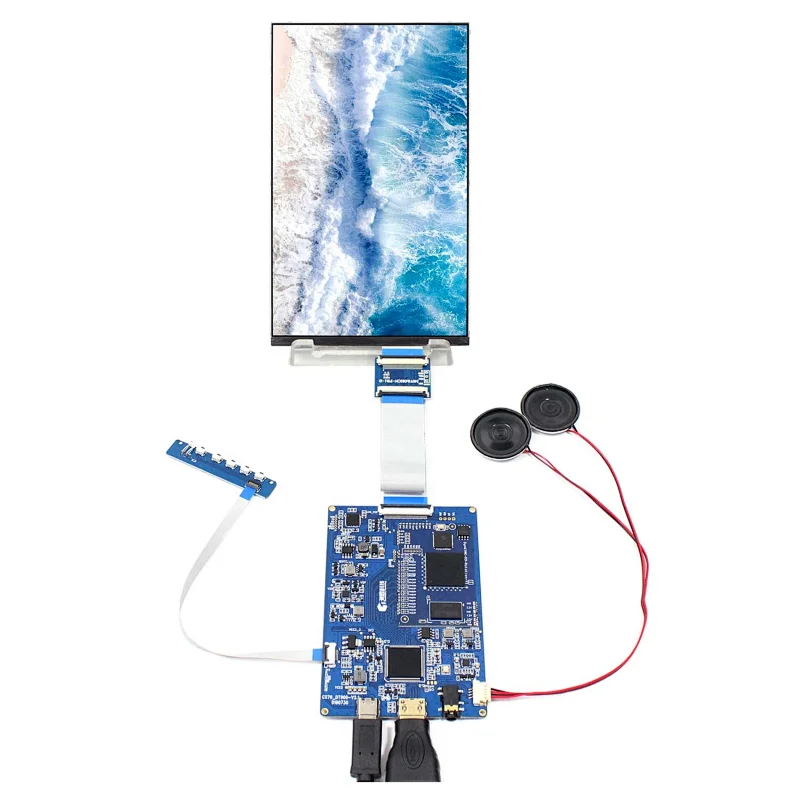

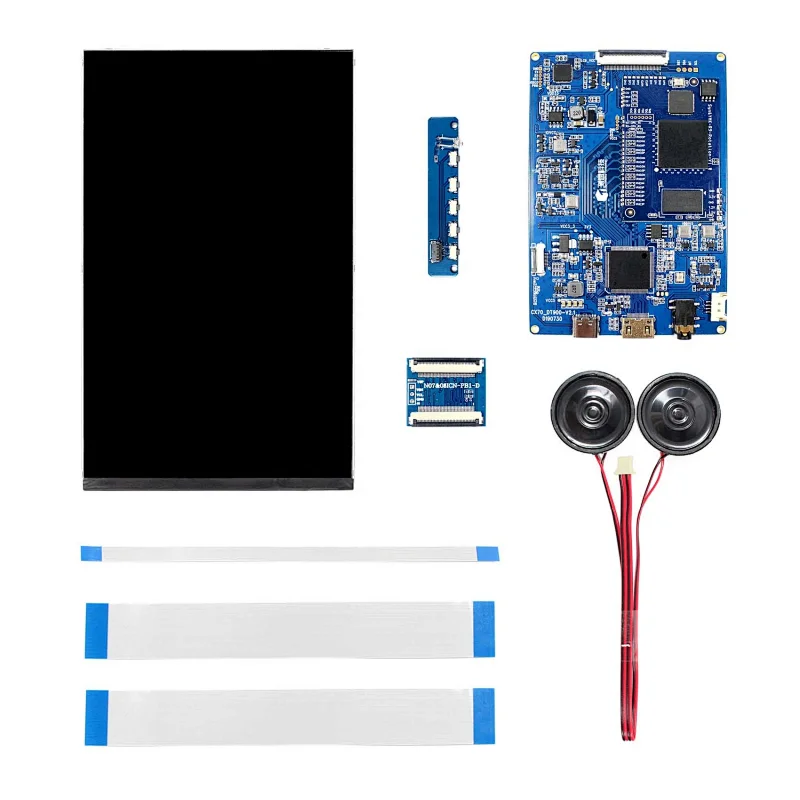

Packing list: | 1× HD MILCD Controller Board VS-CX70DT900-V1 1× 7inch HX7002A 1200X1920 LCD Screen 1× Signal Cable 1× Converter Board 1× 8ohm 2W Speaker | ||||||
