15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board
15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board

15inch DV150X0M-N10 1024x768 Contrast Ratio 1000:1 Full Viewing Angle LCD Screen with HD-MI LCD Controller Board

Model NO.
K002762 VS-N5V3.1H+DV150X0M-N10 1024x768
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • LCD Controller Board:
    HD-MI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI
    Audio Input: HD-MI
    Audio Output: Speaker earphone
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 85mm x 54mm x 14mm
  • 15"DV150X0M-N10 1024x768 LCD Screen:
    Pixel Format1024(RGB)×768 [XGA]  85PPI

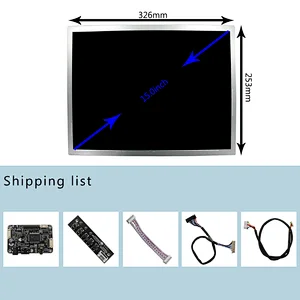

    Outline Size 326.5(H)×253.5(V) ×9.7(D) mm
    Bezel Area 306.5(H)×230.1(V) m
    Brightness350 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Signal Interface 20 pins LVDS (1 ch, 8-bit)
    BacklightWLED [12S4P] , 50K hours , With LED Driver
    Input Voltage 3.3V (Typ.)
  • Packing list :
    1× HD-MI Audio LCD Controller Board
    1×15"DV150X0M-N10 1024x768 LCD Screen
    1× Converter Board
    1× LVDS Cable
    1× Keyboard With Cable
