HD-MI Type-C USB AUDIO LCD Controller Board Compatible with 21.5inch 23inch 23.6inch 27inch 1920x1080 LCD screen HM215WU1-500

Model NO.
K002697 VS-JRY-W3AFHD-DV1
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Type:TFT
  • Dots Format:1920x1080
  • Interface:LVDS
  • Board Size:120mm x 60mm x 17mm
  • Audio Output:HD-MI Type-C
  • Video Input:HD-MI Type-C USBx2
  • Audio Input:HD-MI Type-C
  • Place of Origin:CN;GUA
  • Type:AD Board
  • Display Size:for 21.5inch 23inch 23.6inch 27inch 1920x1080
  • Model Number:K002697 VS-JRY-W3AFHD-DV1
  • Brand Name:VS

LCD Driver Board Compatible Work With:

21.5inch 1920x1080:

HM215WU1-500 M215HGE-L10 M215HGE-L21 M215HW01 VB M215HW02 V0 M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21

LM215WF3-SLK1 LM215WF3-SLC1 T215HVN01.0 M215HW02 V0

23inch 1920x1080:

LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1

23.6inch 1920x1080 :

M236HGE-L10 M236HGE-L20

27inch 1920x1080:

M270HW02 M270HVN02.0

Product Description

K002697 (1).jpgK002697 (4).jpgK002697 (3).jpg

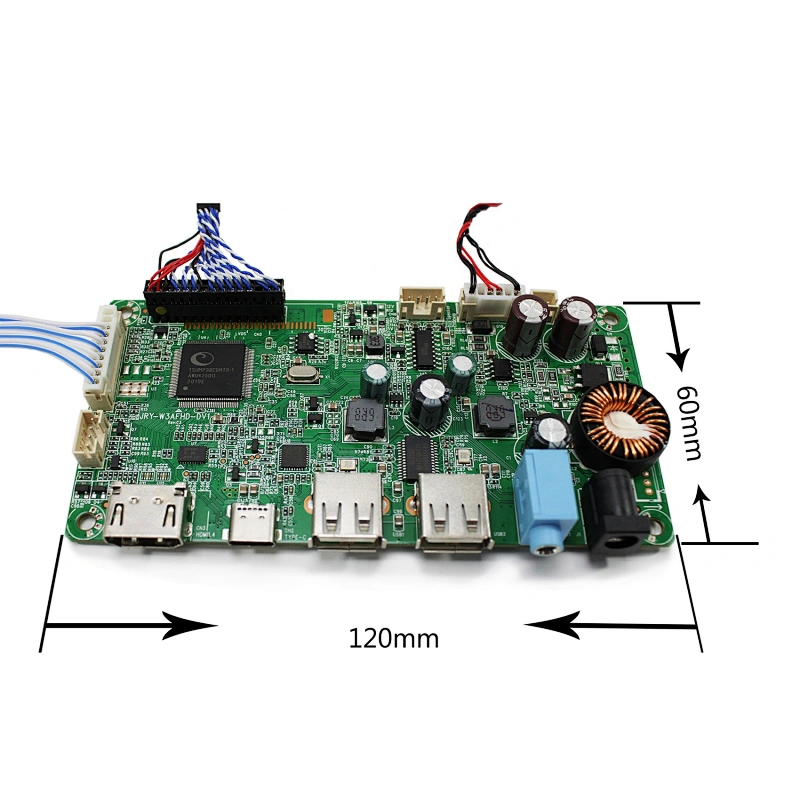

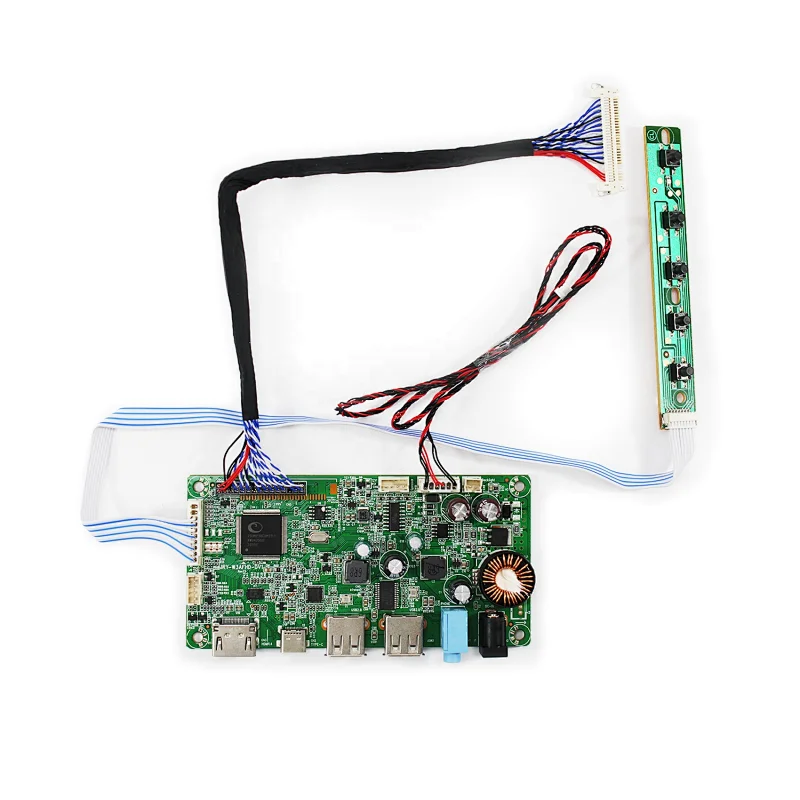

LCD Controller Board:

HD-MI Type-C USBx2 AUDIO LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc(+/-0.5v) More than 2A.

Come In Standby Model When Not Input Signal

Standby Model <1W

Video Input: HD-MI Type-C USBx2

Audio Input: HD-MI Type-C

Audio Output: Speaker Connector headset

OSD: Brightness Contrast Auto Language And So On

Language: English French German Spanish Italian And So On

Board Size: 120mm x 60mm x 17mm

Packaging & Shipping

K002697 (2).jpg

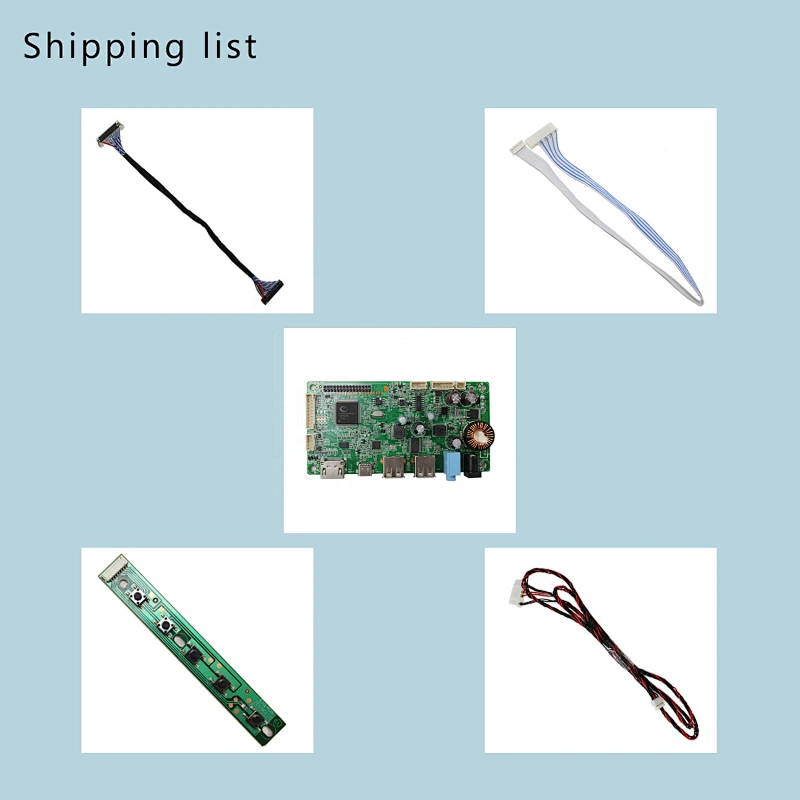

Packing list :

1× HD-MI Type-C USBx2 AUDIO LCD Board Work for LVDS Interface LCD Screen

LVDS Cable

Backlight Cable

Keyboard With Cable

Our Services

1 year warranty from the day the product sold. Some technical issue can be solved online.

FAQ

Trade Term:EXW Shenzhen or FOB Shenzhen

Shipping:DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment:T/T HSBC, Paypal, Western Union

Company Information

workshop

VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA), mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
