HD-MI LCD Controller Board Compatible With 14inch 15.6" 1366x768 LCD Screen LTN140AT02 BT140XW02 LTN156AT17 LTN156AT24 LP140W

Model NO.
K002778 VS-TY2660HU-823+IPEX40P
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1
Country of Origin:
CHINA
Stock Time:
3-7days Days
Quantity:
  • Max Resolution:1366x768
  • LVDS Interface:30Pin (FIX-30P 1ch 6bit)
  • OSD:Brightness Contrast Auto Language And So On
  • Input Power Adapter:12Vdc More than 2A
  • Video Input:HD-MI USB
  • Place of Origin:CN;GUA
  • Type:LCD Board
  • Display Size:14 inch
  • Model Number:K002778 VS-TY2660HU-823+IPEX40P
  • Brand Name:vs
Product Description

LCD Controller Board:

HD-MI.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel: 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD-MI USB
HD-MI: Support HD-MI 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 51mm x 14mm

Compatible Work With:

14inch 1366x768:
LTN140AT02 LTN140AT07 LP140WH1 BT140XW02 HT140WXB HSD140PHW1
N140B6 B140XW01 B140XW02 B140XW03 LP140WH1 LP140WH3 LP140WH4

15.6inch 1366x768:
LTN156AT17 LTN156AT02 LTN156AT24 LP156WH2 LP156WH4 BT156GW02
N156B6 B156XTN03 B156XW02 B156XW04 B156XTN02.1

(Can't work With B156XW02 V5 B156XW02 HW0A 30Pin Connector)

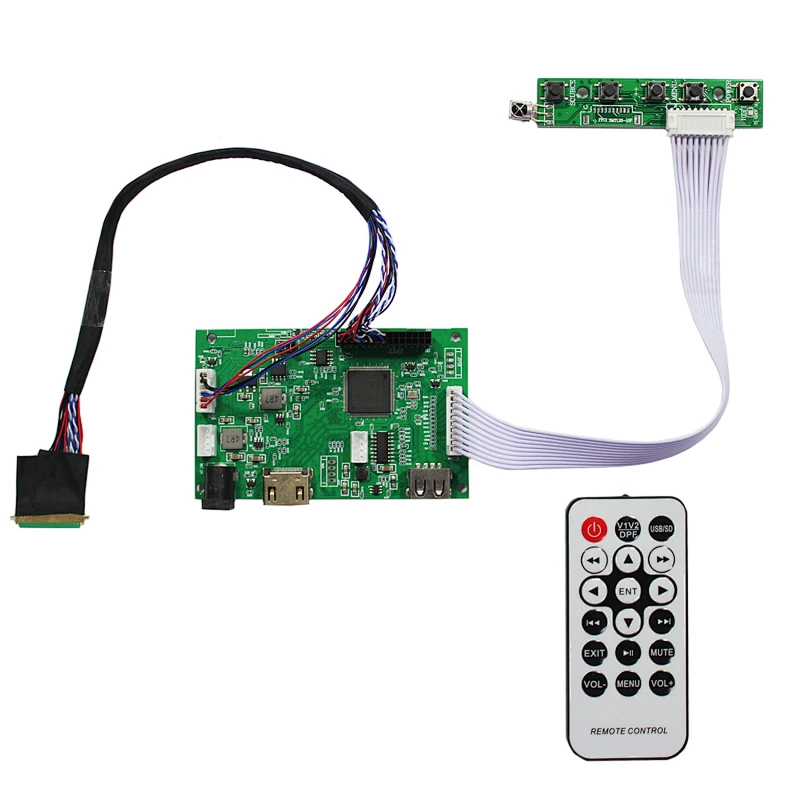

Packing list :

1× HD-MI LCD Board for 30Pin VS-TY2660HU-823
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control

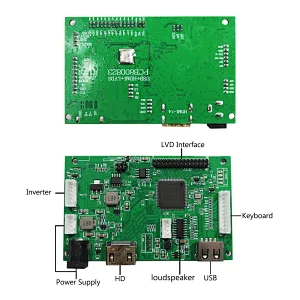

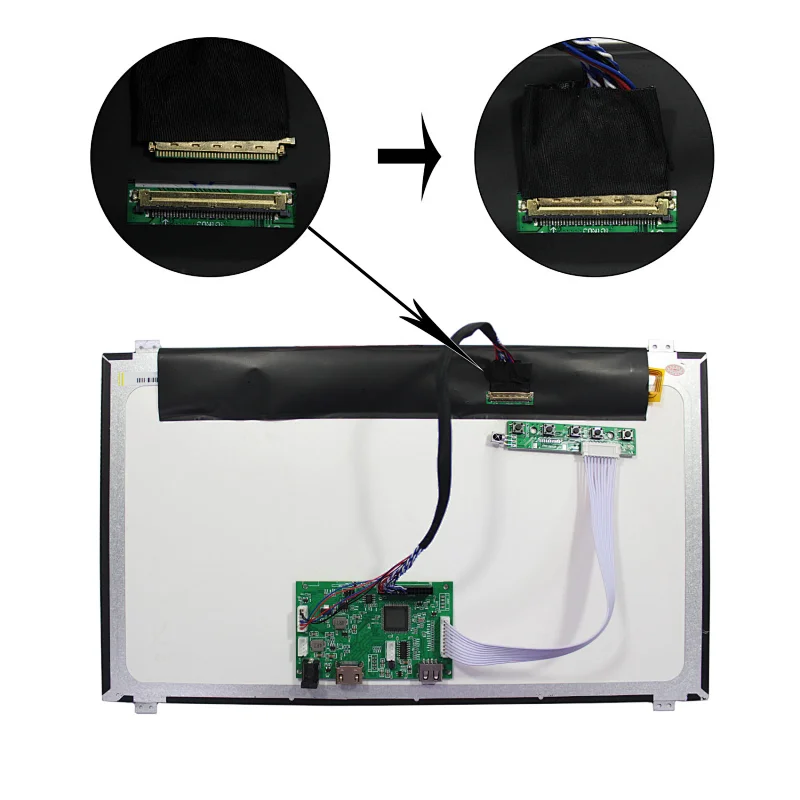

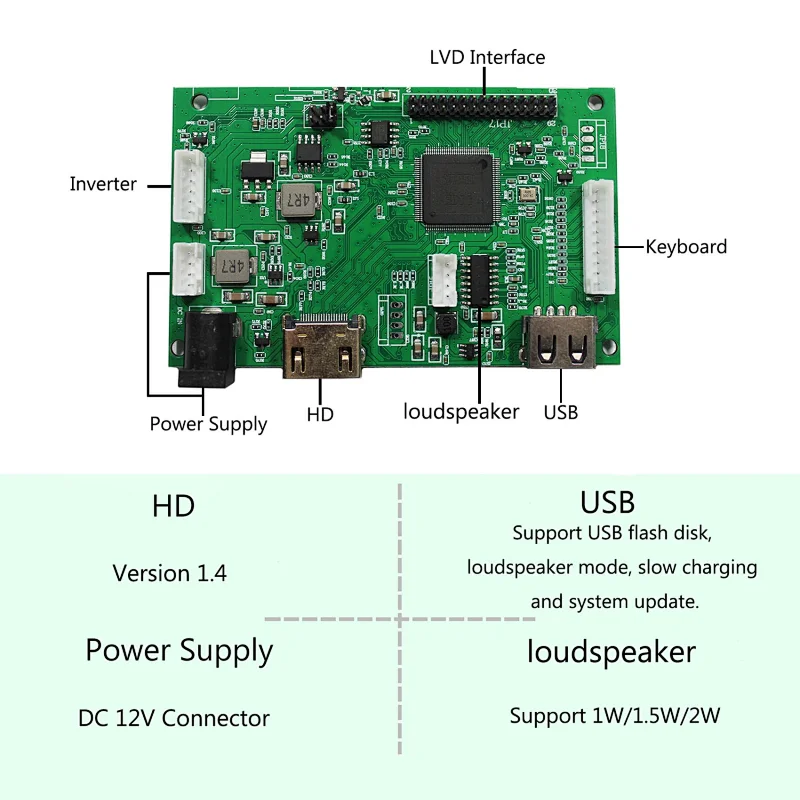

Products Show
Specification
item
value
Type
LCD Board
Display Size
14 inch
Place of Origin
China
Guangdong
Model Number
K002778 VS-TY2660HU-823+IPEX40P
Brand Name
vs
Max Resolution
1366x768
LVDS Interface
30Pin (FIX-30P 1ch 6bit)
OSD
Brightness Contrast Auto Language And So On
Input Power Adapter
12Vdc More than 2A
Video Input
HD-MI USB
Packing & Delivery
Standard export carton
