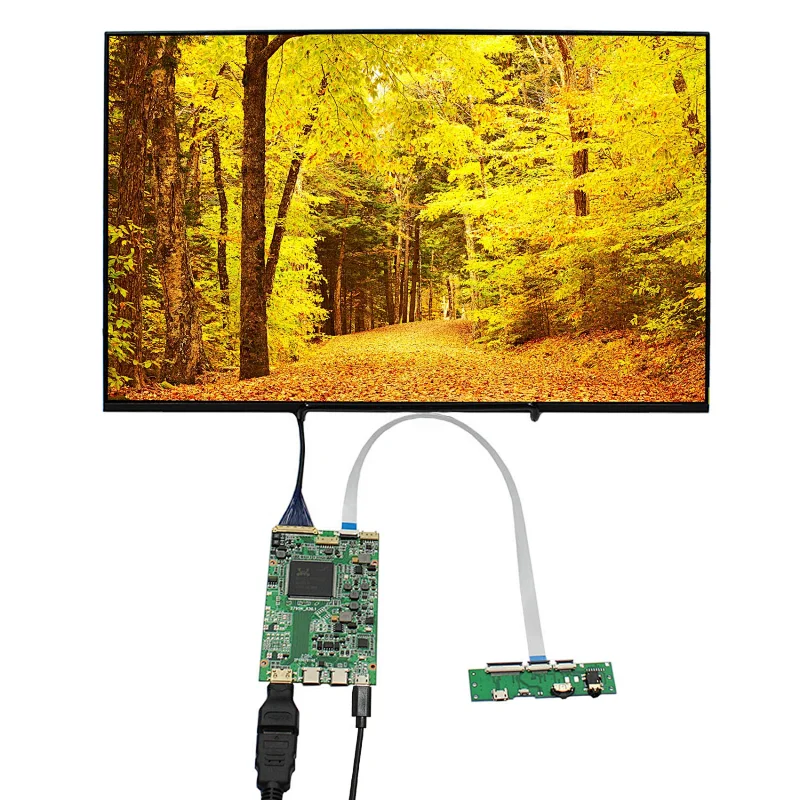

16inch MNG007DA1-1 120Hz 2560X1600 LCD Screen 16.0" Brightness 500nit Display Panel with Mini HD-MI Type C LCD Controller Board

Model NO.
K002920 VS-RT2795T4K-V5 Type-C+MNG007DA1-1 2560X1600 120hz
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Quantity:
  • LCD Controller Board:
    Type C HD Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
    Input Power Adapter: 5Vdc Type C
    Come In Standby Model When Not Input Signal
    Standby Model <1.2W
    HDR: Support

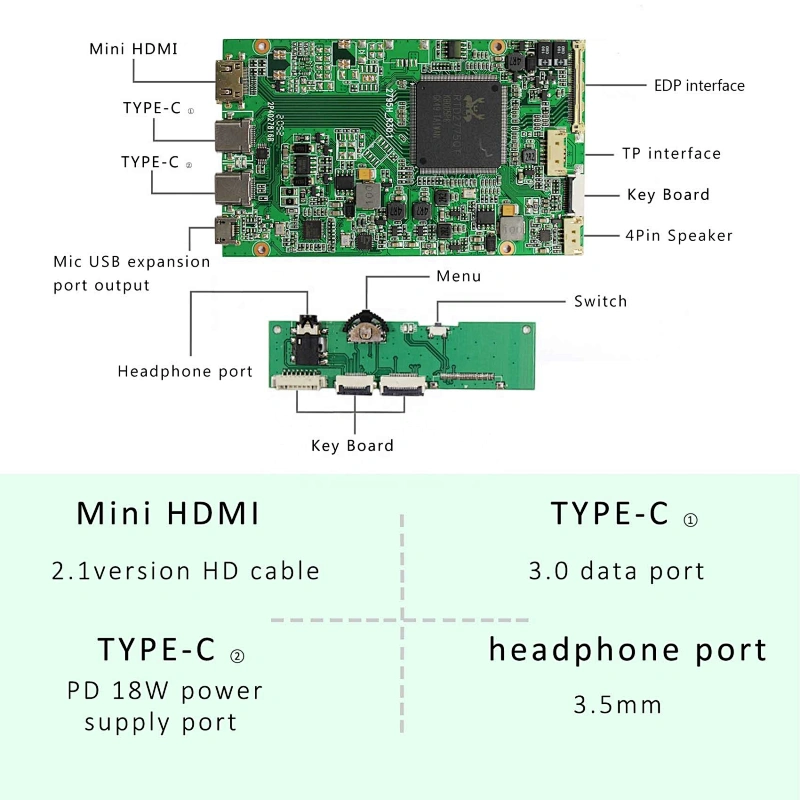

    Video Input
    HD (HD 2.0 max 3840x2160 60Hz Support HDCP2.2)
    Type-C (Data Transmission Image Display 5V Max 3A output)
    Audio Output: Earphone
    OSD: Brightness Contrast VOL+ VOL- Language And So On
    Language: English French German Spanish Italian And So On

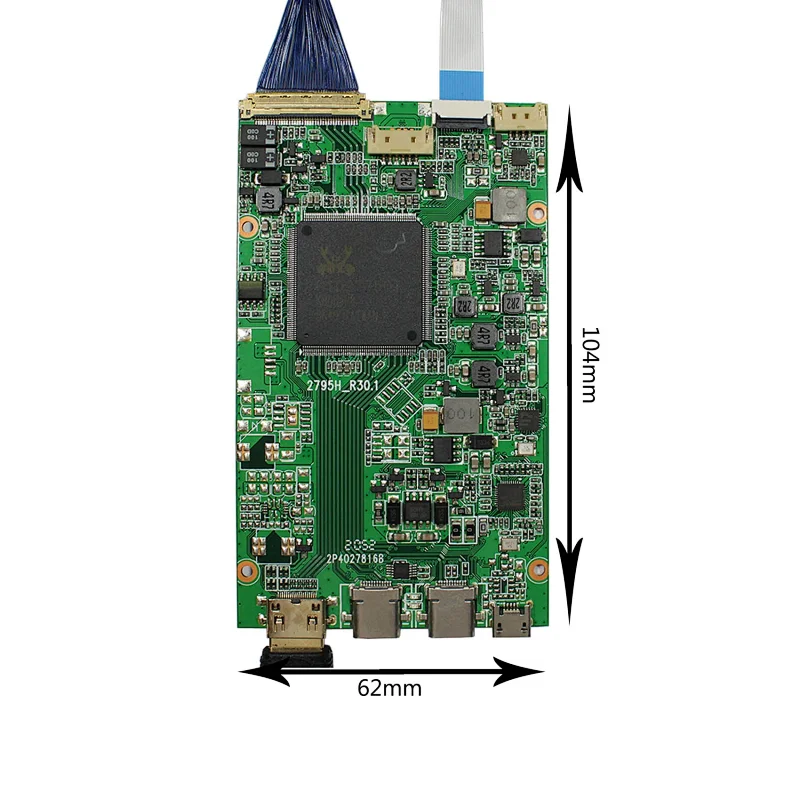

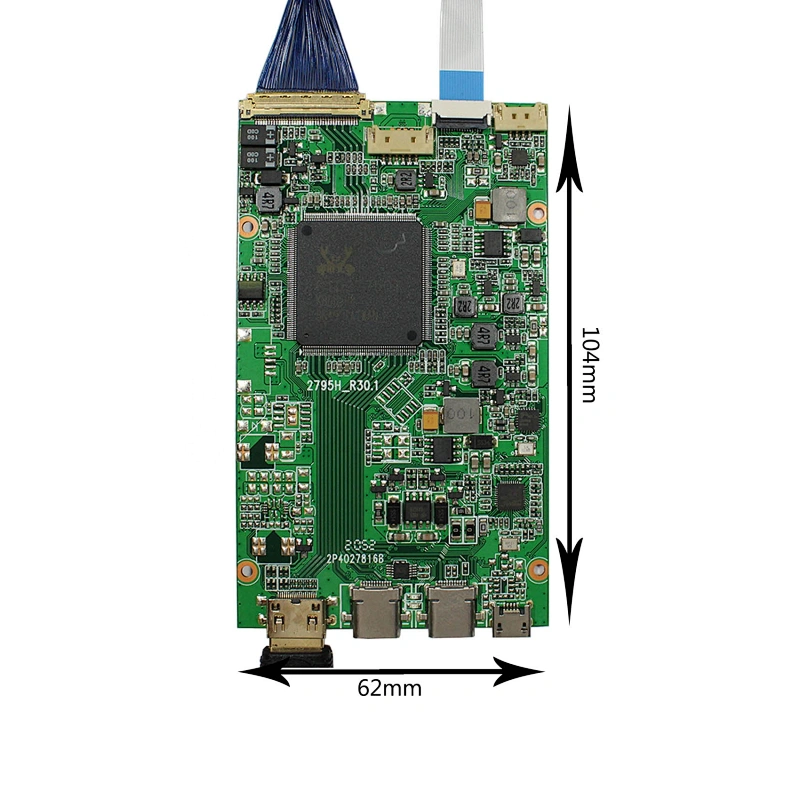

    Board Size: 56.5mm x 125mm x 5mm
  • 16"120Hz LCD Screen 2560X1600 MNG007DA1-1:
    Display Mode FFS, Normally Black, Transmissive
    Brightness 500 cd/m² (Typ.)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Signal Interface eDP Connector

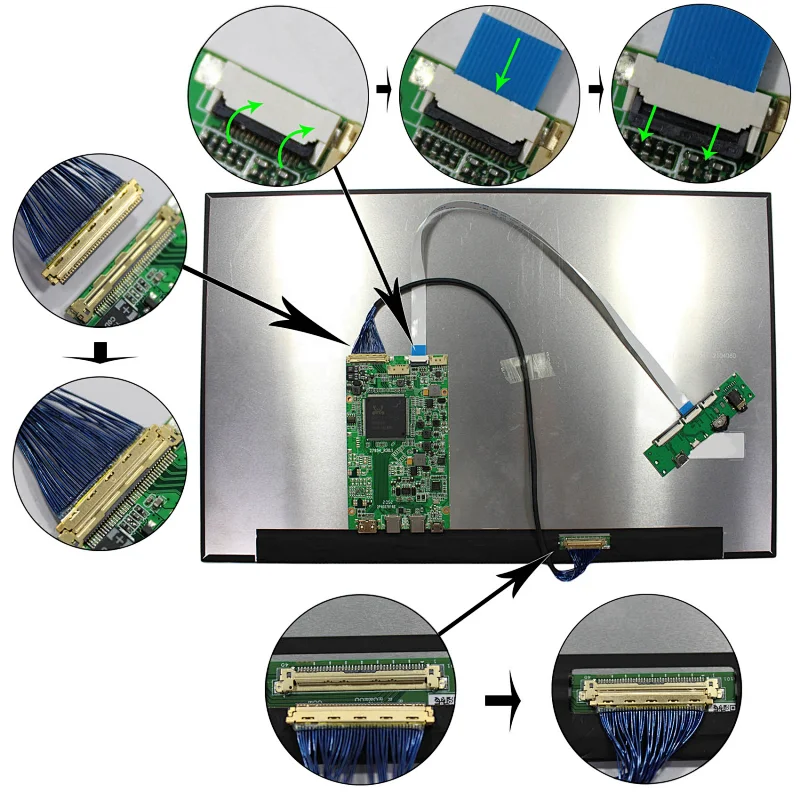

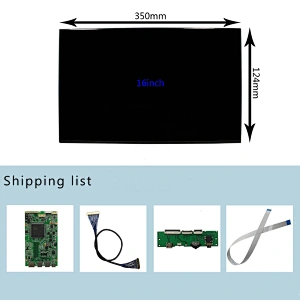

  • Packing list:
    1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V3
    1× 16"LCD Screen MNG007DA1-1 2560X1600
    1× Signal Cable

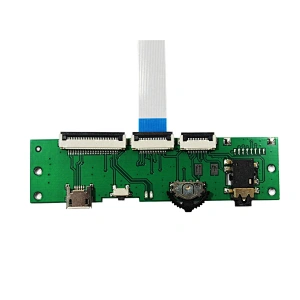

    1× Keyboard With Cable
