12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3
12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3

12.3inch HSD123KPW1 1920X720 Protective Glass LCD Screen 12.3" IPS Brightness 850nits Display with HD-MI LCD Controller Board

Model NO.
K002825 VS-N5 V3+HSD123KPW1-A30 1920X720
Delivery:
EXW or FOB ShenZhen
Minimum order quantity:
1 set
Country of Origin:
CHINA
Quantity:
  • LCD Controller Board:
    HD-MI LCD Board Work for LVDS Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HD-MI
    Audio Input: HD-MI
    Audio Output: Speaker earphone
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On

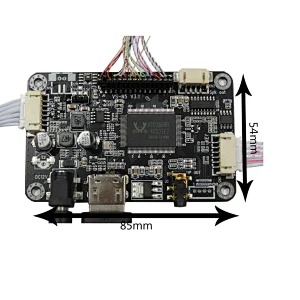

    Board Size: 85mm x 54mm x 14mm

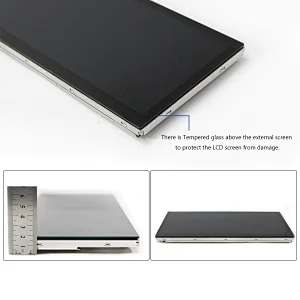

  • 12.3"1920X720 LCD Screen:
    Display Mode  IPS Pro, Normally Black, Transmissive
    Resolution 1920RGB)×720
    Outline Size 308.1 × 130×15.6 (H×V×D)
    Display Area 292.032 × 109.512 (H×V)
    Brightness 850 cd/m² (Typ.)
    Contrast Ratio 1000:1 (Typ.) (TM)
    Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
    Signal Interface LVDS (2 ch, 8-bit) , Connector , 50 pins
    Backlight WLED
    Input Voltage 3.3V (Typ.)

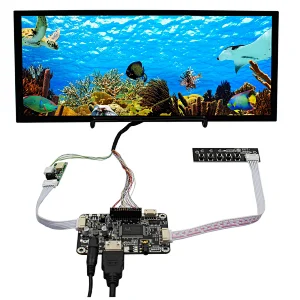

  • Packing list:
    1×HD-MI Audio LCD Controller Board
    1×12.3inch HSD123KPW1 1920X720 LCD Screen
    1× Inverter Board

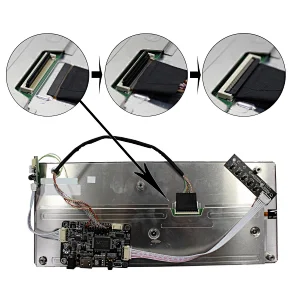

    1× LVDS Cable
    1× Keyboard With Cabl
