Model NO.
K001903 VS-TYEDP-V807 For TV101WXM-NP1
Minimum order quantity:
1 piece
Quantity:
  • LCD Controller Board:

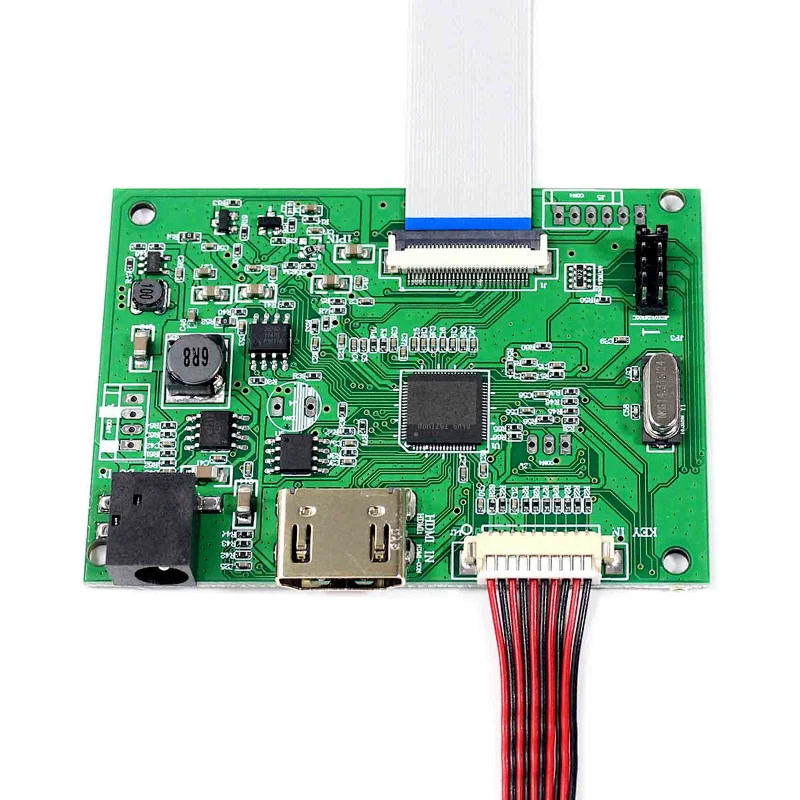

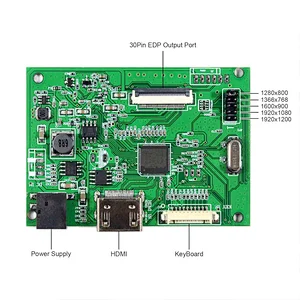

    HDMI LCD Board Work for 30Pin eDP Interface LCD Screen
    Input Power Adapter: 12Vdc More than 2A.
    Come In Standby Model When Not Input Signal
    Standby Model <1W
    Video Input: HDMI Version 1.4
    Audio Output: Support Speaker 4ohm 2W or 8ohm 1.5W
    Firmware Change via Jumper Position
    OSD: Brightness Contrast Auto Language And So On
    Language: English French German Spanish Italian And So On
    Board Size: 72mm x 51mm x 6mm
  • Compatible Work With:
    10.1inch1280x800:
    TV101WXM-NP1 NV101WXM-N51 B101EAN01.8

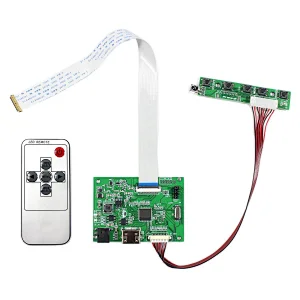

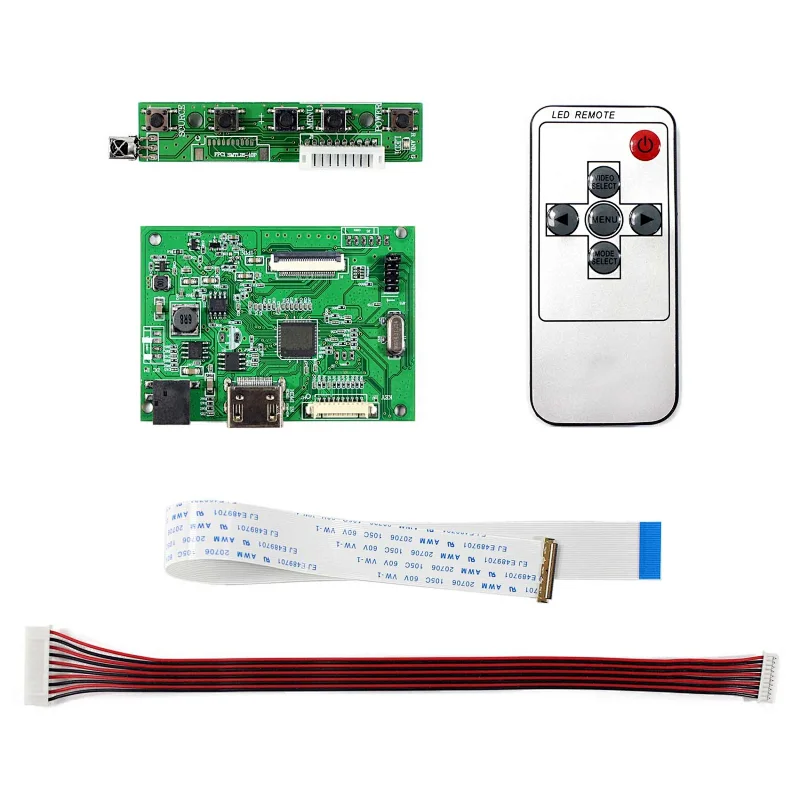

  • Packing list :
    1× HDMI LCD Controller Board VS-TYEDP-V807
    1× 30Pin Signal Cable
    1× Keyboard With Cable
    1× Remote Control (Battery Not included)
