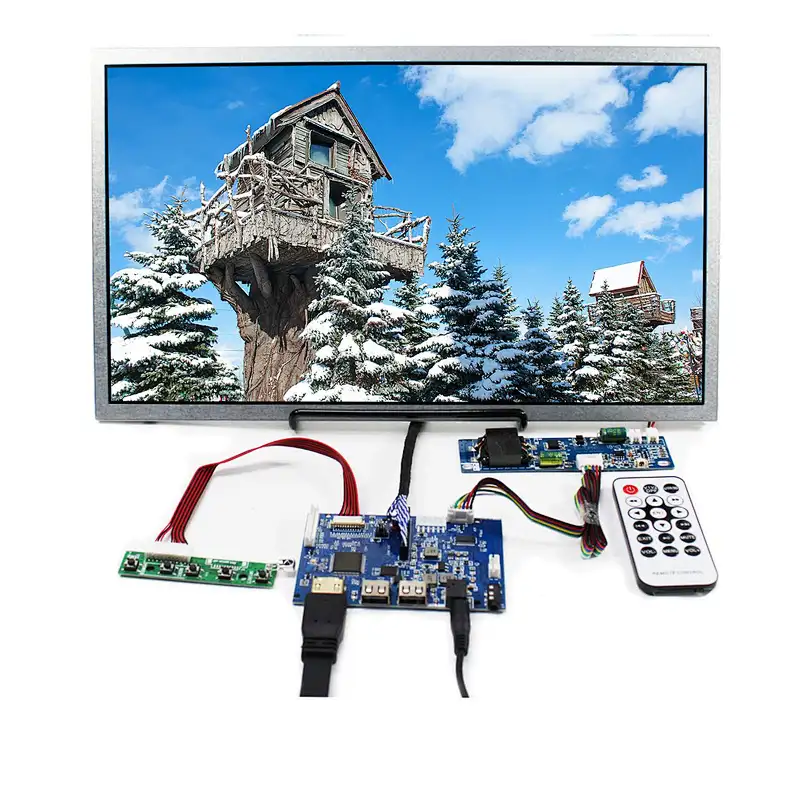

15.6" G156HTN02.1 1920X1080 LCD Screen with HD-MI USB Android LCD Controller Board Android lcd controller board USB LCD Controller board 15.6inch 1920x1080 lcd screen G156HTN02.1 LCD Screen

Model NO.
K002688-VS-TY2660H-V818+G156HTN02.1 1920X1080 brightness 1000nits
Quantity:
LCD Controller Board:

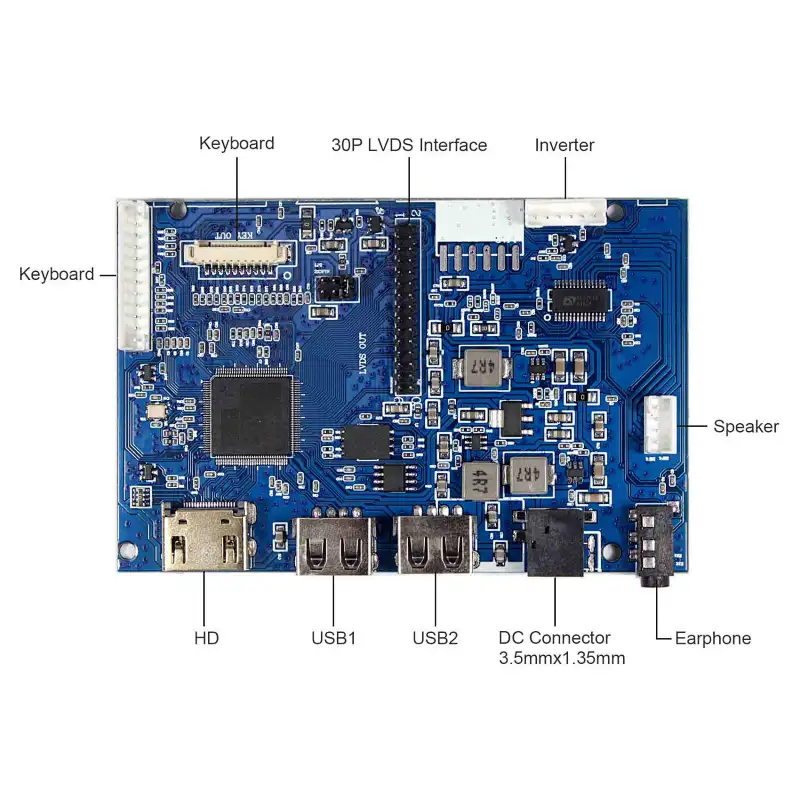

HD-MI USB Android LCD Controller Board Work for LVDS LCD Screen
Input Power Adapter: 12Vdc More than 2A.(9~14Vdc)
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI1.4 USB
USB Port:
Support Video Play
Support Connect Keyboard and mouse
Support 5Vdc 500mA output
Support OS
Audio Input: HD-MI
Audio Output: Earphone connector Speaker (4Pin 1.25mm Pitch 8ohm 2W or 4ohm 2W)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

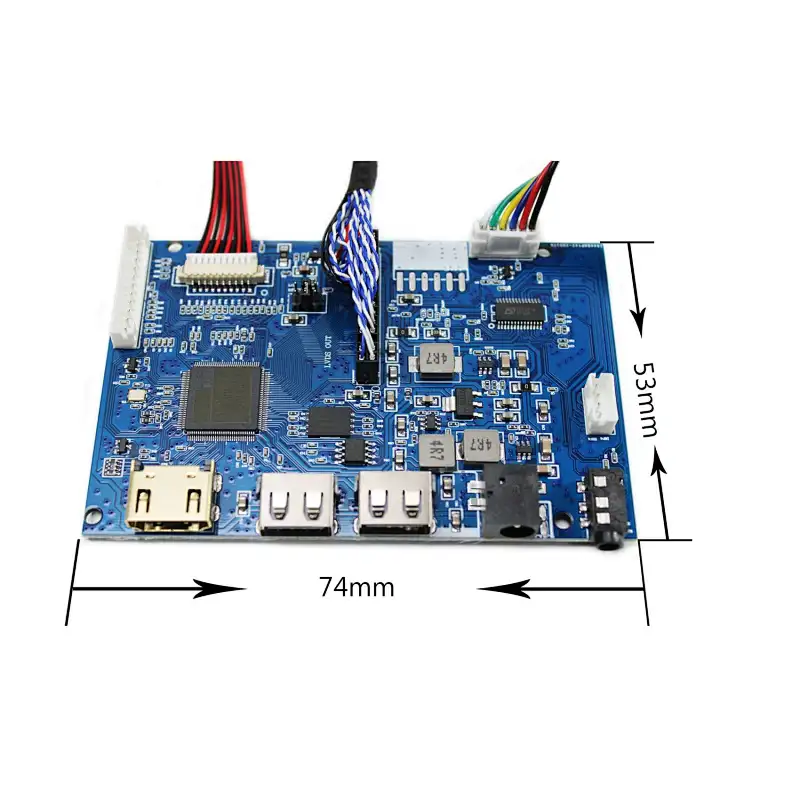

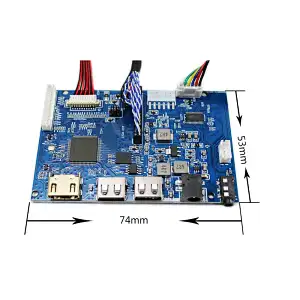

Board Size: 74mm x 53mm x 12mm
15.6"G156HTN02.1 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920(RGB)×1080, FHD, 141PPI
Outline Size 363.8(W)×215.9(H) ×12.5(D) mm
Display Area 344.16(W)×193.59(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
Viewing Angle 70/70/60/60 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage 3.3V (Typ.)

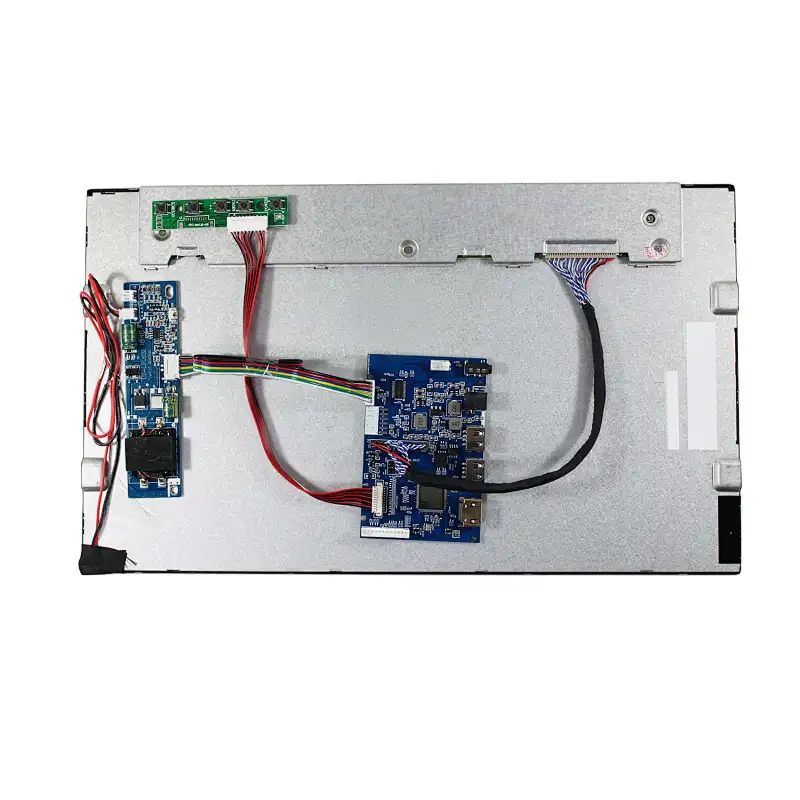

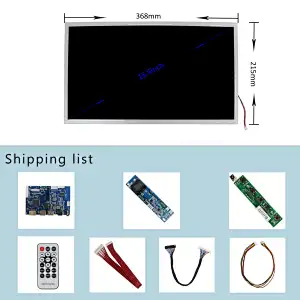

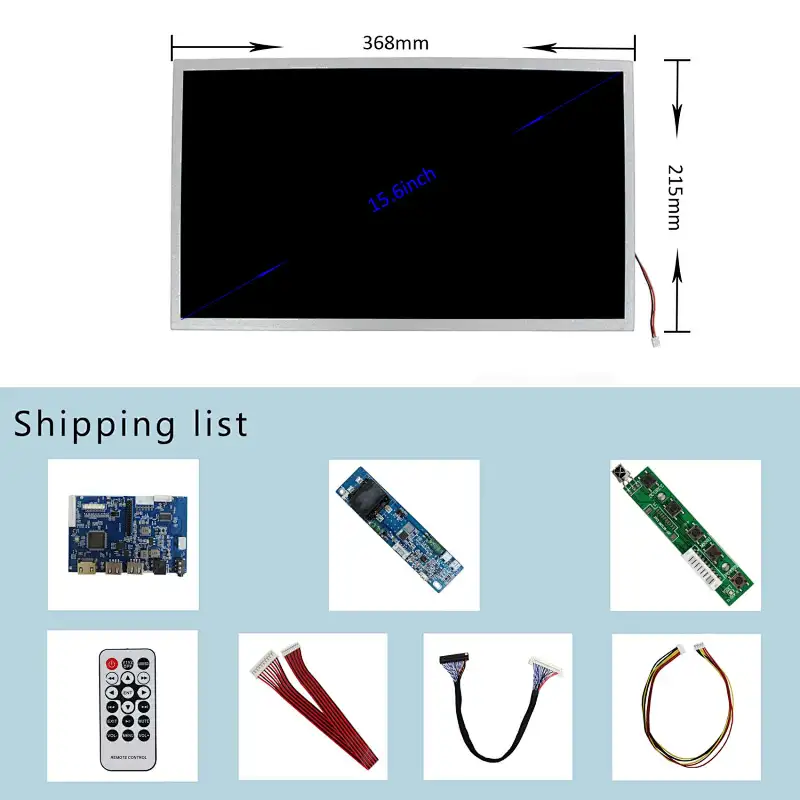

Packing list:
1× HD-MI USB LCD Controller Board VS-TY2660-899
1×15.6"G156HTN02.1 1920X1080 1000nit LCD Screen

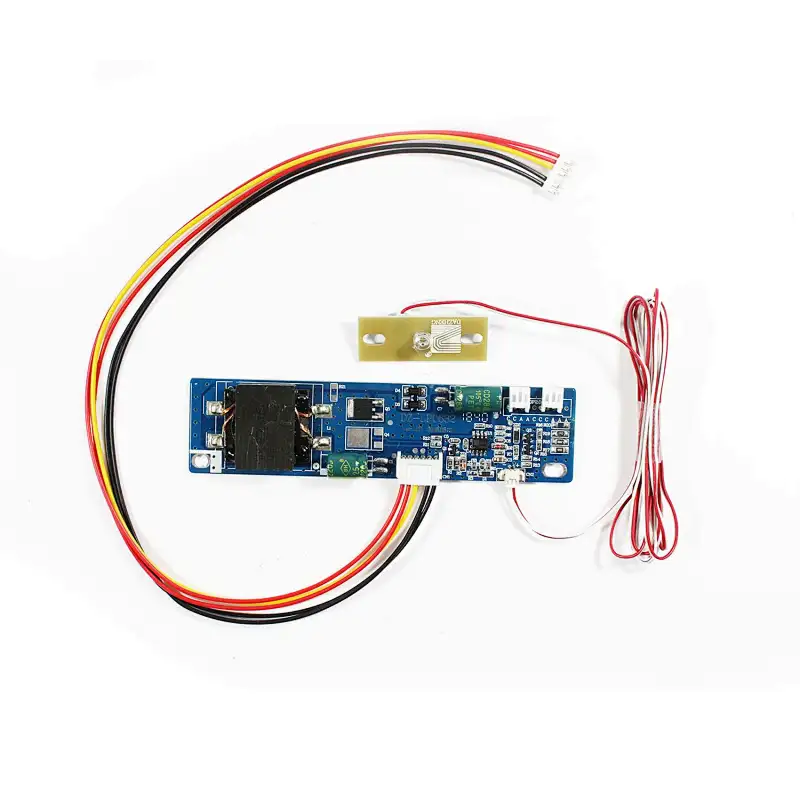

1× Inverter Board
1×Backlight Cable
1× Keyboard With Cable
