HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0
HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0

HDMI LCD controller Board Work for 30Pin EDP LCD Screen 11.6inch 15.6inch 17.3inch 1920x1080 N116HSE-EA1 N116HSE-EB1 B156HAN01.1 NV156FHM-N41 N173HCE-E31 B173HTN01.0

Model NO.
K001457 VS-RTD2556H-V1 work for 1920x1080 EDP LCD Screen
Quantity:
LCD Controller Board:

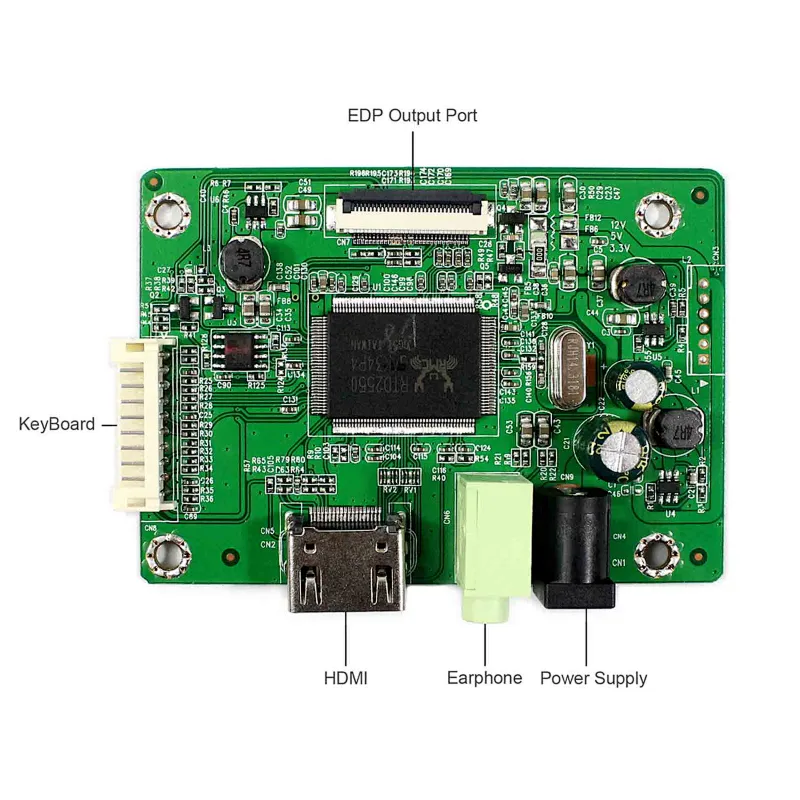

HDMI Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 77mm x 55mm x 16mm
Compatible Work With:
11.6inch 1920x1080:
N116HSE-EA1 N116HSE-EA2 N116HSE-EJ1 N116HSE-EB1
13.3inch 1920x1080:
N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3
14inch 1920x1080:
B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3
15.6inch 1920x1080:
B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SP N156HGE-EA1 NV156FHM-N31 NV156FHM-N41
17.3inch 1920x1080:
N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1

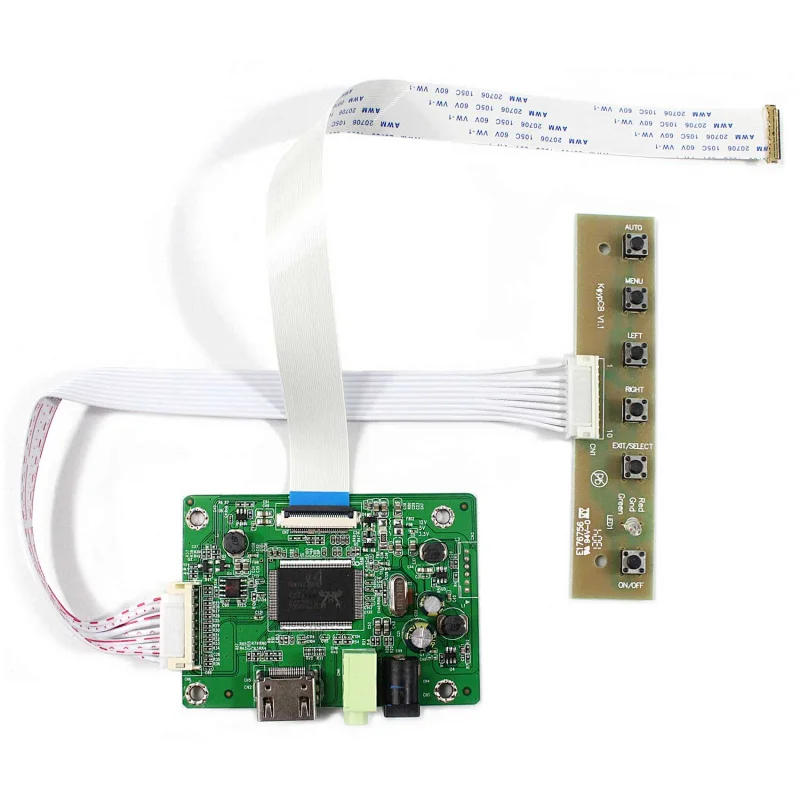

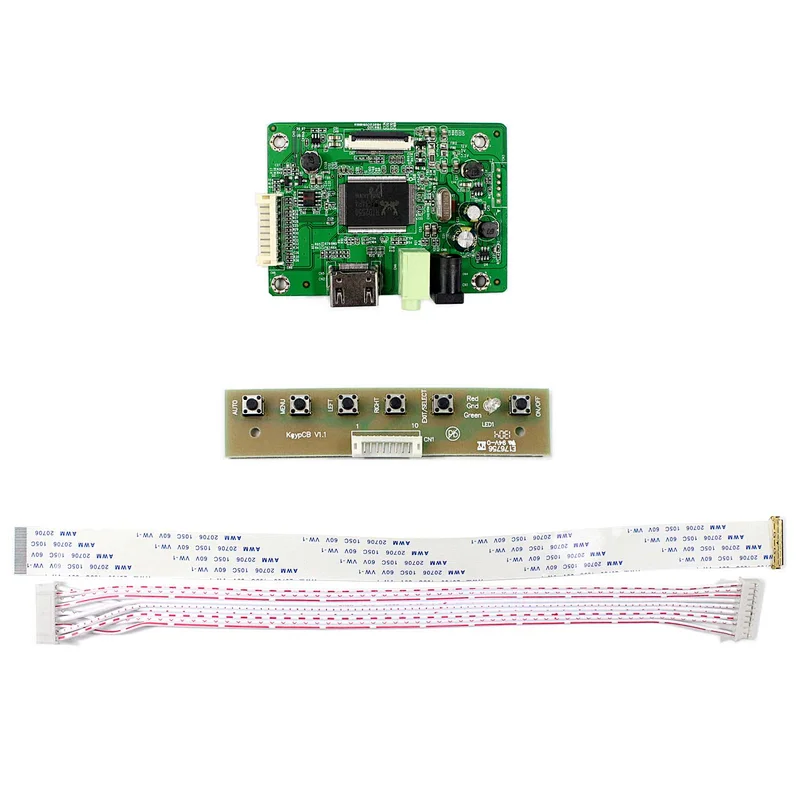

Packing list :
1× HDMI LCD Controller Board VS-RTD2556H-V1
1× Signal Cable
1× Keyboard With Cable
