HDMI VGA LCD Controller Board for 1920x1080 30Pin EDP LCD Screen 11.6inch 13.3inch 14inch 15.6inch 17.3inch N116HSE-EA1N133HSE-EA1 N133HSE-EB3 B140HAN01.0 B140HAN01.3 B156HAN01.1 NV156FHM-N41 N173HCE-E31 LP173WF4-SPF4

Model NO.
K001458 VS-RTD2556HV-V1+30p EDP 反向线 for 1920x1080 EDP
Quantity:

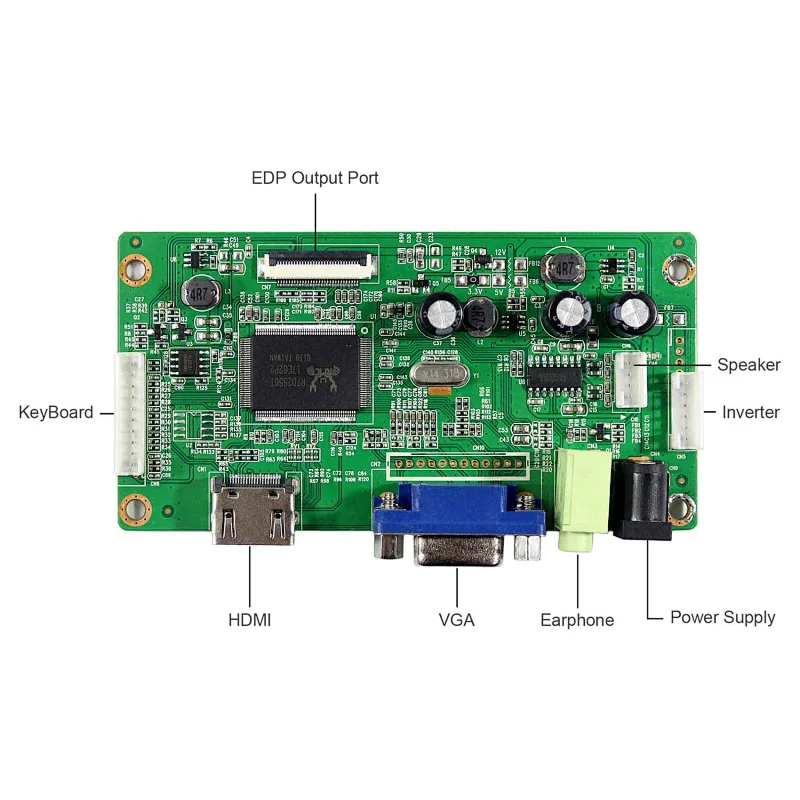

LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: Speaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm

Compatible Work With:
11.6inch 1920 x 1080:
N116HSE-EA1  N116HSE-EJ1 N116HSE-EB1 N116HSE-EAC N116HSE-EBC

13.3inch 1920 x 1080:
N133HSE-EA1 N133HSE-EA3 N133HSE-EB1 N133HSE-EB3

14inch 1920 x 1080:
B140HAN01.0 B140HAN01.1 B140HAN01.2 B140HAN01.3

15.6inch 1920 x 1080:
B156HAN01.1 B156HAN01.2 B156HTN03.0 LP156WF4-SPB1 N156HGE-EA1 NV156FHM-N31 NV156FHM-N41 LP156WF4-SPLTN156HL01 LTN156HL02-201 LTN156HL06-C01 LTN156HL07-401 LTN156HL09-401

17.3inch 1920 x 1080:
N173HCE-E31 N173HGE-E11 N173HGE-E21 B173HTN01.0 B173HTN01.1LP173WF4-SPD1 LP173WF4-SPF1 LP173WF4-SPF2 LP173WF4-SPF3 LP173WF4-SPF4 LTN173HL01-401

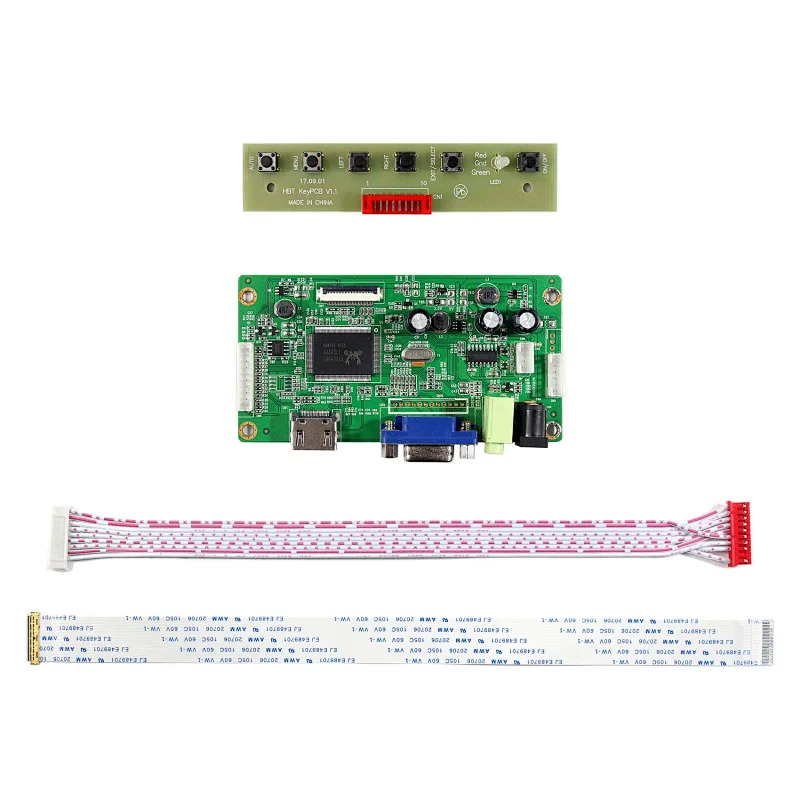

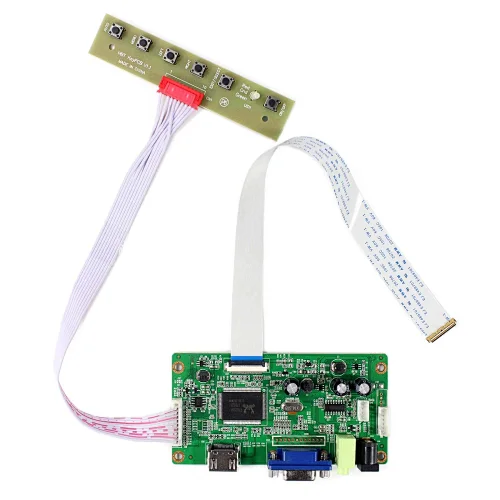

Packing list :
1×HDMI VGA LCD Controller Board VS-RTD2556HV-V1
1× EDP Inverter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
1× 30Pin Signal Cable
1× Keyboard With Cable
