HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31
HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31

HDMI VGA LCD Controller Board work with EDP 30Pin 1366x768 11.6inch 13.3inch 14inch 15.6inch N116BGE-E42 NT116WHM-N21 N133BGE-EB1 B133XTN01.6 B140XTN03.3 LP140WH2-TPTH B156XTN03.3 N156BGE-E31

Model NO.
K001475 VS-RTD2556HV-V1 work for 1366x768 EDP
Quantity:
LCD Controller Board:
HDMI VGA Board Work for 30Pin EDP LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI PC-Audio In
Audio Output: EarphoneSpeaker
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English
Board Size: 107mm x 55mm x 16mm

Compatible Work With:
11.6inch 1366x768:
B116XAN02.0 B116XAN02.2 B116XAN02.4 B116XAN02.7 M116NWR1 R5 M116NWR1 R7  B116XTN02.1 B116XTN02.2 B116XTN02.3 HW0A B116XTN02.3 HW2D B116XTN02.3 HW3A B116XTN02.3 HW4A N116BGE-E32 N116BGE-E42 N116BGE-EA2 N116BGE-EB2 NT116WHM-N21 NT116WHM-N22 NT116WHM-N31
13.3inch 1366x768:
M133NWN1 R1 M133NWN1 R3 M133NWN1 R4 HB133WX1-201 HB133WX1-301 HB133WX1-402 N133BGE-E01 N133BGE-E31 N133BGE-E41 N133BGE-E51 N133BGE-E61 N133BGE-EA1 N133BGE-EAA  N133BGE-EAB  N133BGE-EB1 LP133WH2 SPA1 LP133WH2 SPA2 LP133WH2 SPB1 LP133WH2 SPB3 LP133WH1 SPB1 LP133WH1 TPD1 B133XTN01.2 B133XTN01.3 B133XTN01.6
14inch 1366x768
M140NWR4 R1 M140NWR4 R2 HB140WX1-301 HB140WX1-401 HB140WX1-501 HB140WX1-601 B140XTN02.1 B140XTN02.4 B140XTN02.6 B140XTN02.9 B140XTN02.A B140XTN02.D B140XTN02.E B140XTN03.2 B140XTN03.3 B140XTN03.4 B140XTN03.9  LP140WH2-TPA1 LP140WH2-TPS1 LP140WH2-TPSH LP140WH2-TPT1 LP140WH2-TPT2 LP140WH2-TPTH N140BGE-E33 N140BGE-E3W N140BGE-E43 N140BGE-EA3
15.6inch 1366x768:
B156XTN03.1 B156XTN03.3 B156XTN03.5 LP156WHU-TPG1 LP156WHU-TPH1 B156XTN04.0 B156XTN04.1 B156XTN04.4 B156XTN04.5 B156XTN04.6 NT156WHM-N12 NT156WHM-N21 NT156WHM-N22 NT156WHM-N32 NT156WHM-N42 N156BGE-E11 N156BGE-E21 N156BGE-E31 N156BGE-E32 N156BGE-E41 N156BGE-E42 N156BGE-EA1N156BGE-EA2 N156BGE-EB1 N156BGE-EB2

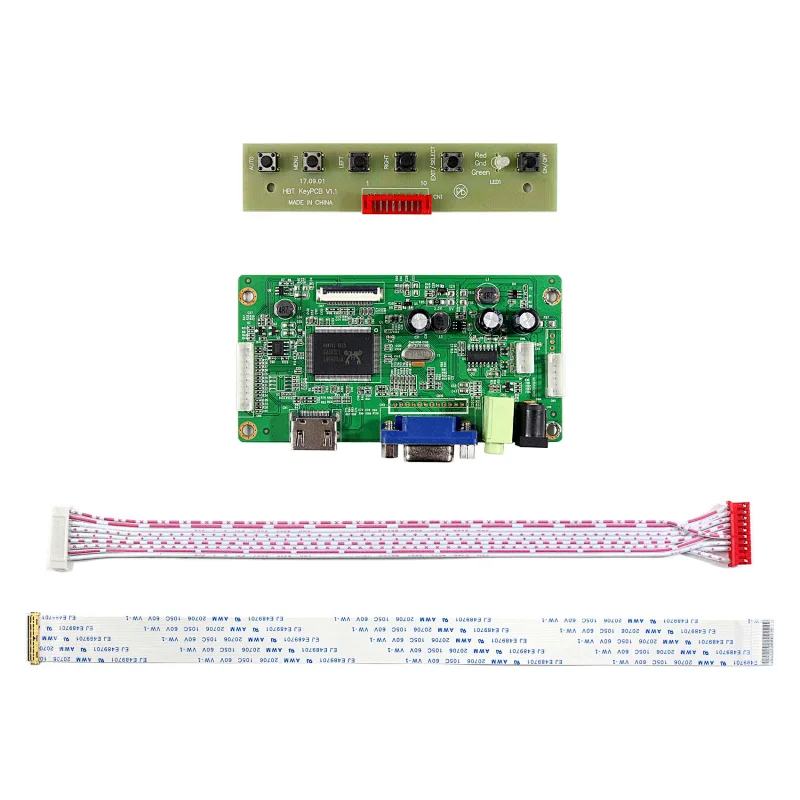

Packing list :
 HDMI VGA LCD Controller Board VS-RTD2556HV-V1
1× EDP Inverter Board
1× 30Pin Signal Cable
1× Keyboard With Cable
