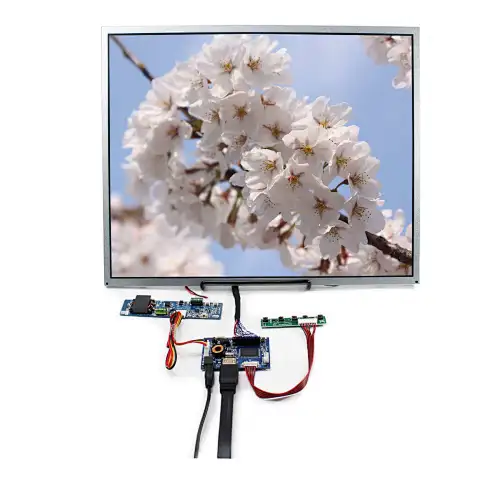

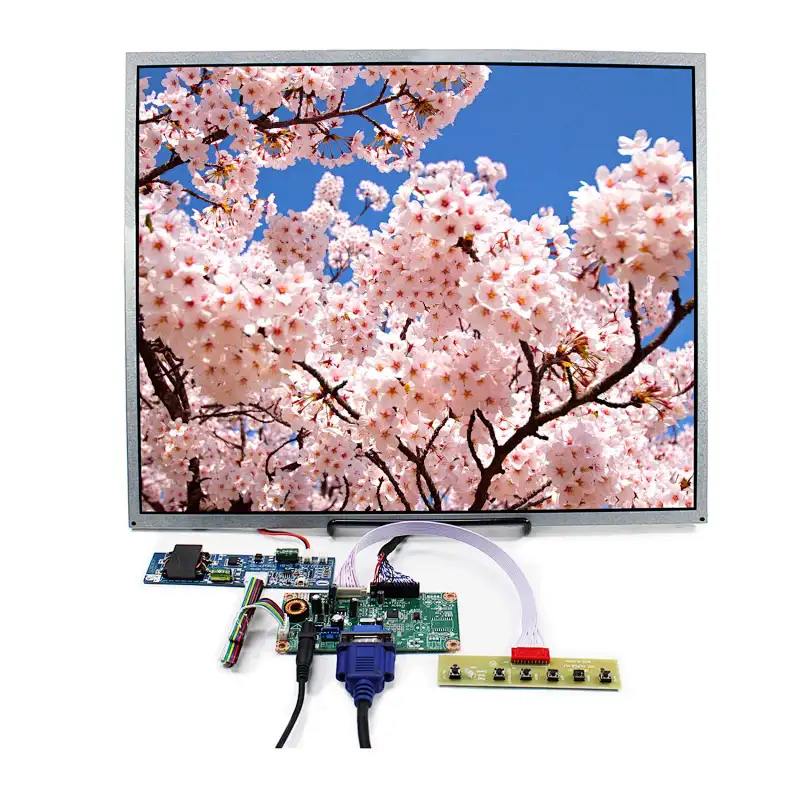

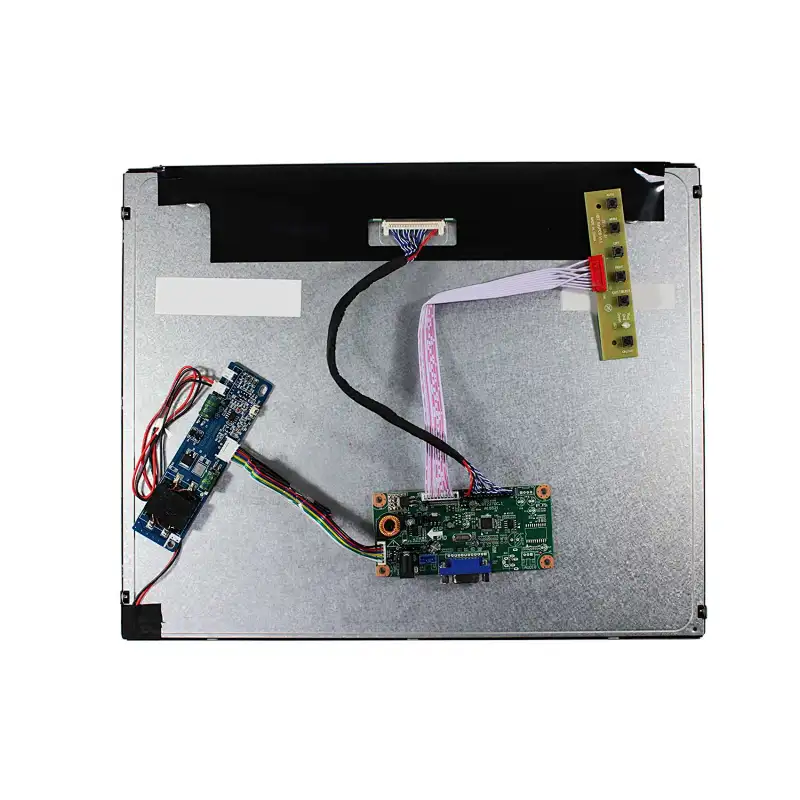

17.0" M170ETN01.1 1280X1024 17inch 1000nit Outdoor LCD Screen With VGA LCD Controller Board

Model NO.
K002682-RT2270C-A+M170ETN01.1 1280X1024
Quantity:

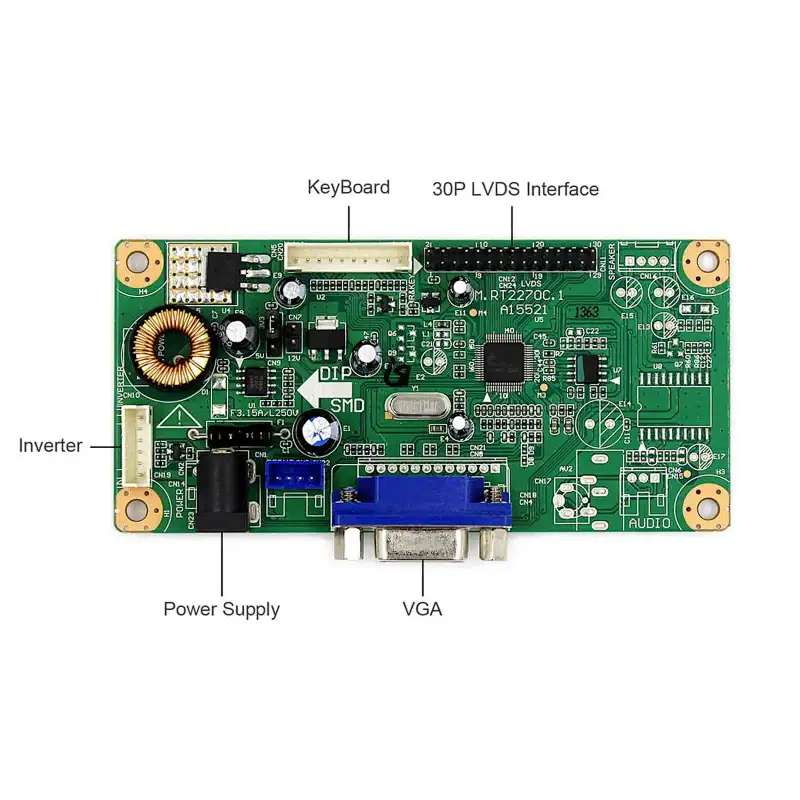

LCD Controller Board:
VGA LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter:12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: VGA
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

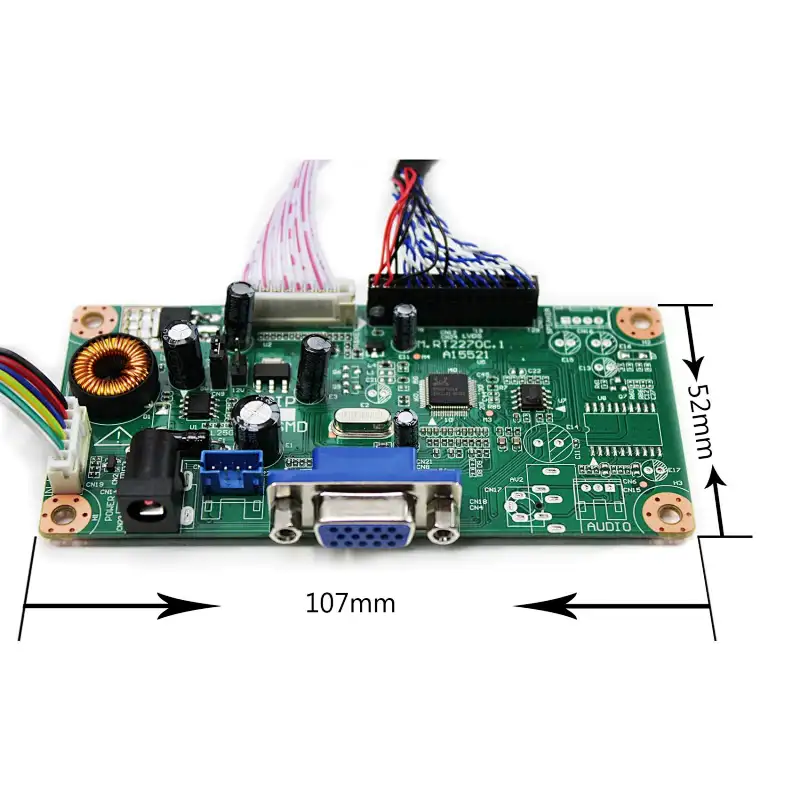

Board Size:107mm x 52mm x 18mm

17.0"M170ETN01.1 1280X1024 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 96PPI
Outline Size 358.5(W)×296.5(H) ×10.8(D) mm
Display Area 337.92(W)×270.336(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  5.0V (Typ.)

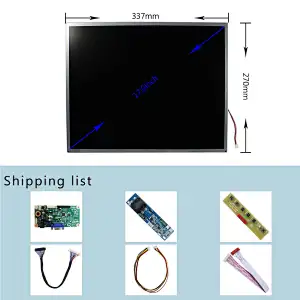

Packing list :
1× VGA LCD Controller Board RT2270C-A
1×17.0"M170ETN01.1 1280X1024 LCD Screen

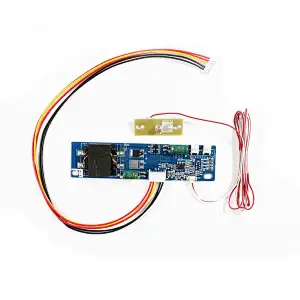

1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
