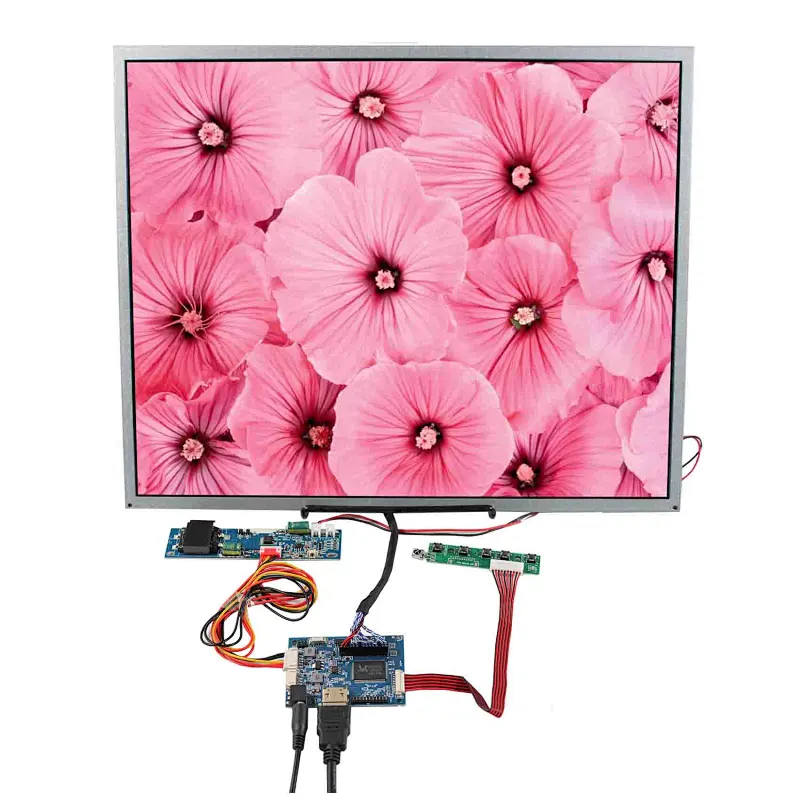

19.0" 1280X1024 G190ETN01-1000nit High Brightness Outdoor LCD Screen With HDMI Audio LCD Controller Board

Model NO.
K002685-VS-TY2660H-V661+G190ETN01.1 1280X1024
Quantity:

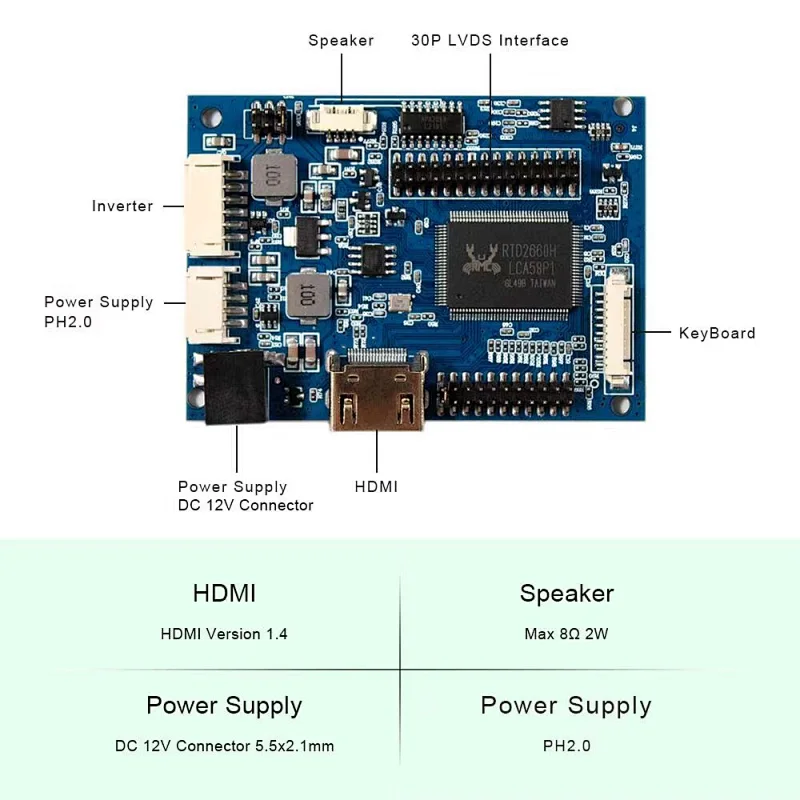

LCD Controller Board:
HD-MI LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 5A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI
Audio Input: HD-MI
Audio Output: Speaker (4Pin PH1.0 connector)
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 74mm x 53mm x 12mm

19.0"G190ETN01-1000 1024X768 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280(RGB)×1024, SXGA, 86PPI
Outline Size 396(W)×324(H) ×11.7(D) mm
Display Area 376.32(W)×301.056(H) mm
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight  WLED
Input Voltage  35.0V (Typ.)

Packing list:
1× HDMI Audio LCD Controller Board VS-TY2660H-V661
1×19.0"G190ETN01-1000 1280X1024 LCD Screen
1× LVDS Cable

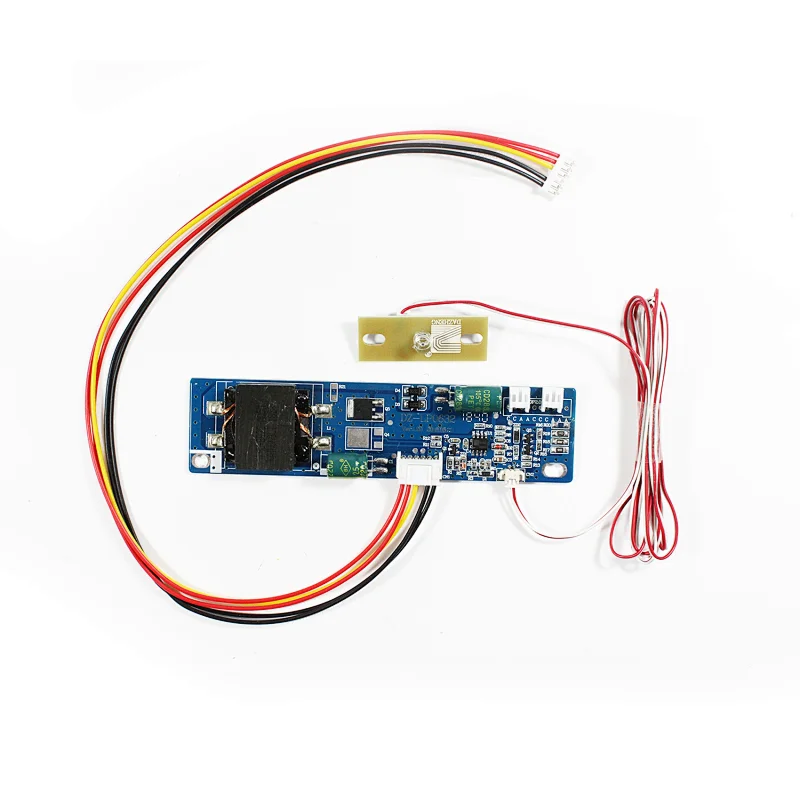

1× Backlight Cable
1× Keyboard With Cable
