21.5" 1920x1080 2000nit Sunlight Readable 21.5inch Outdoor TFT-LCD Screen With HD-MI VGA AV USB LCD Controller Board

Model NO.
K002831-VS-V59AV-V2+21.5inch1920x1080
Quantity:

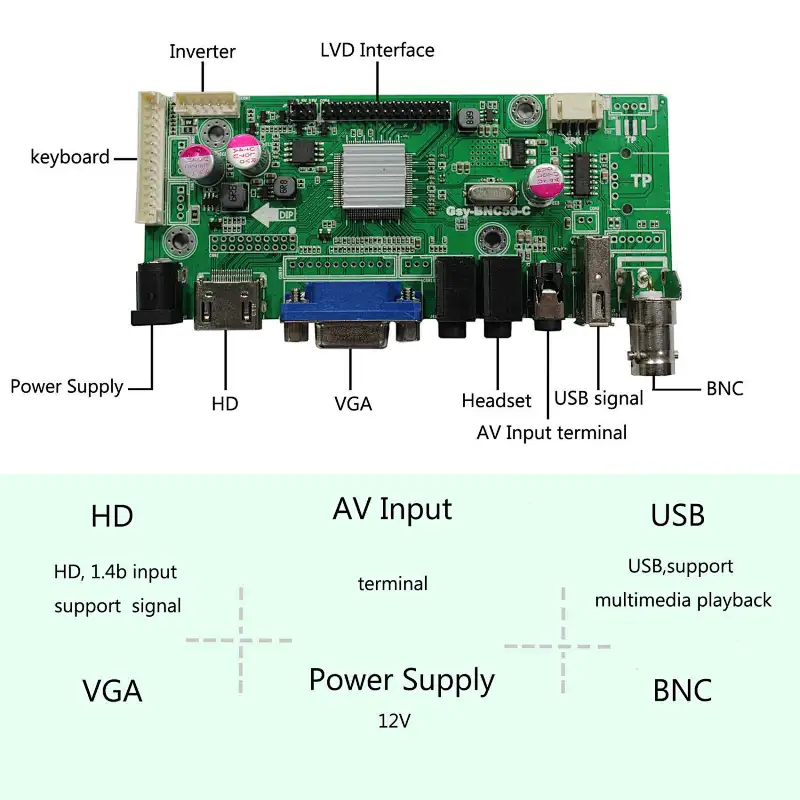

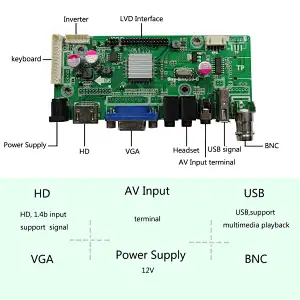

LCD Controller Board:
HD-MI VGA  AV USB LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
HD-MI Port Support Transform Audio Compatible With HD-MI 1.3/1.4HDCP 1.2
USB Support Video
AVCompatible With PAL And NTSC
Video Input: HD-MI VGA AV USB
Audio Input: HD-MI PC-Audio
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

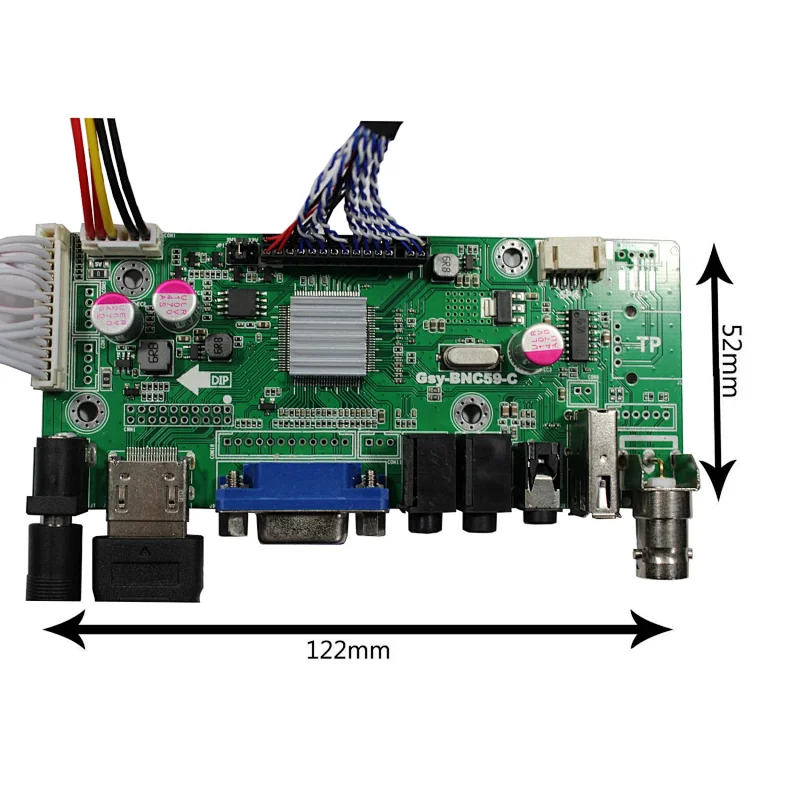

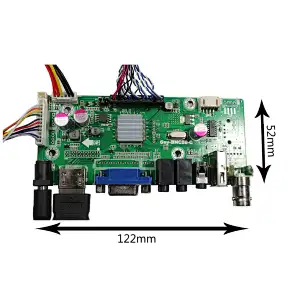

Board Size: 122mm x 52mm x 17mm

21.5"M215HJJ-P02-2000 1920x1080 LCD Screen:
Display Mode AHVA, Normally Black, Transmissive
Resolution1920(RGB)×1080   (FHD)  102PPI
Outline Size 487.664×279.286×1.29 (H×V×D)
Display Area 476.064×267.786 (H×V)
Brightness 2000 cd/m²
Contrast Ratio 3000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR20)
Signal Interface LVDS (2 ch, 8-bit) , 30 pins Connector
Backlight WLED
Input Voltage 5.0V (Typ.)

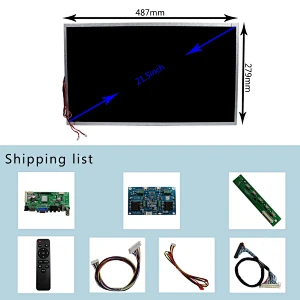

Packing list :
1× HD-MI+VGA+AV+USB LCD Controller Board VS-V59AV-V2
21.5"M215HJJ-P02-2000 1920x1080 LCD Screen
1× Inverter Board
1× LVDS Cable
1× Keyboard With Cable
1× Remote Controller (Battery not included)
