23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board
23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board

23.8 inch 1920X1080 1500nit Sunlight Readable LCD Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K003044-M.NT68676+23.8寸 VS238GF 1920X1080 1500nit
Quantity:
LCD Controller Board:
HD DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 3A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD DVI VGA
Audio Input: HD
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 53mm x 17mm

23.8" VS238GF-1500 1920X1080 LCD Screen:
Display Mode TN, Normally White, Transmissive
Resolution 1920XGB)×1080
Outline Size 543×317.4×11.7MM (H×V×D)
Display Area 527.04 × 296.46 mm (H×V)
Brightness1500 cd/m² (Typ.)
Contrast Ratio 3000:1 (Typ.) (TM)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10
Signal Interface Parallel LVDS (2 ch, 8-bit) , 30 pins ,
Backlight WLED
Input Voltage 5V (Typ.)

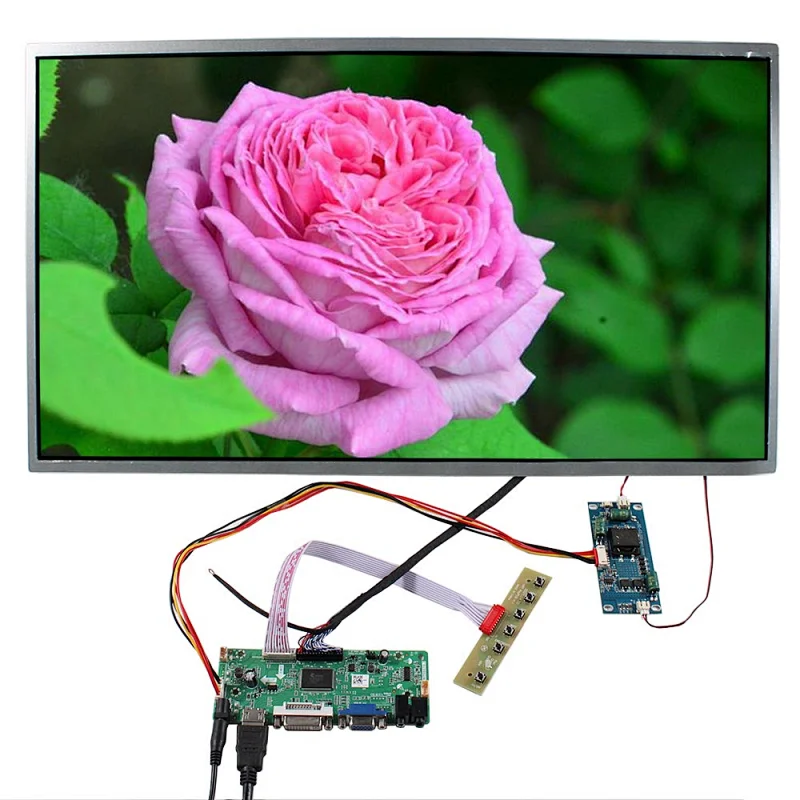

Packing list :
1× HD VGA DVI LCD Controller Board M.NT68676
1× 23.8inch VS238GF-1500 1920X1080 LCD Screen
 LED Driver Board
 LVDS Cable
 Keyboard With Cable
