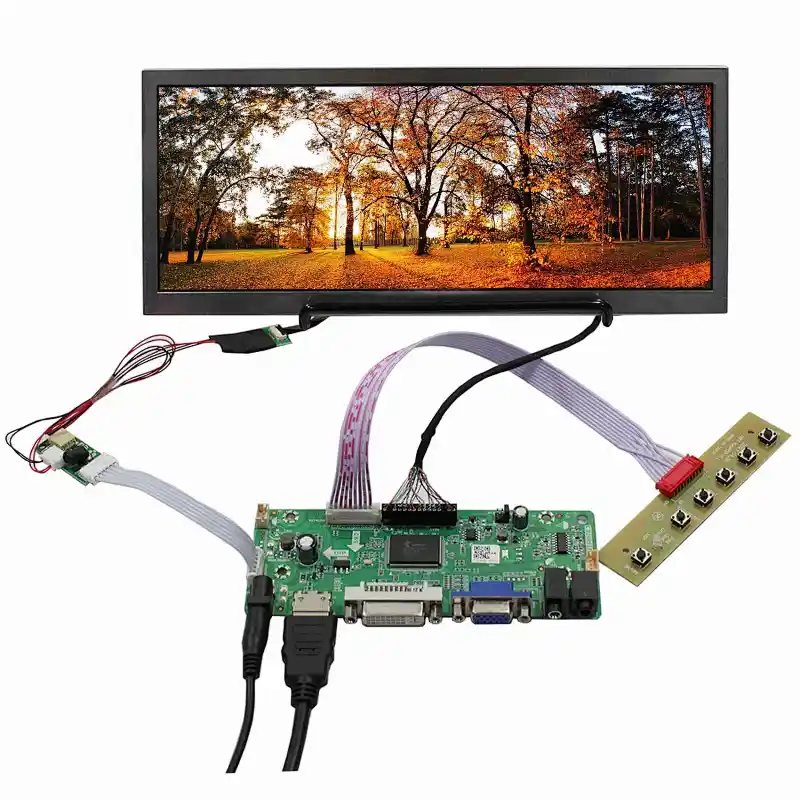

10.3" HSD103KPW2-A10 1920X720 TFT-LCD Screen 10.3inch 850nit LCD Display with HDMI VGA DVI LCD Controller Board

Model NO.
K002703-M.NT68676+HSD103KPW2 JJ103IA 1920X720
Quantity:
LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

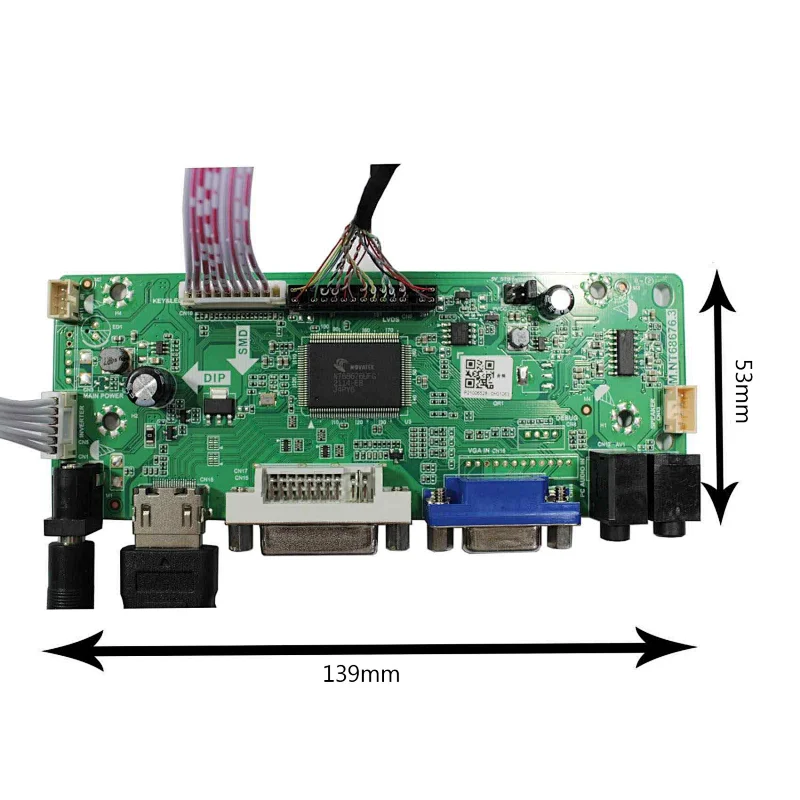

Board Size: 125mm x 58mm x 17mm
10.3"HSD103KPW2-A10 1920X720 LCD Screen:
DisplayNew Mode IPS Pro, Normally Black, Transmissive
Resolution 1920(RGB)×720
Outline Size 259.8×112×15.7(H×V×D)
Display Area 243.6×91.4 (H×V)
Brightness850 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (2 ch, 8-bit), Connector, 50pins
Backlight  9S4P WLED
Input Voltage 3.3V (Typ.)

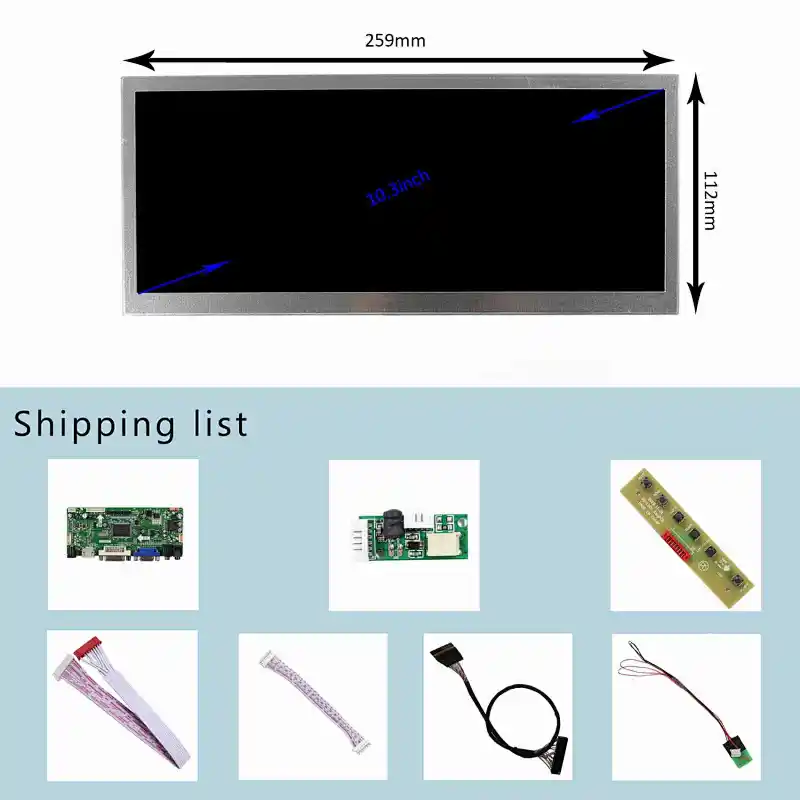

Packing list:
1× HDMI VGA DVI LCD Controller Board M.NT68676
1×10.3"HSD103KPW2-A10 1920X720 LCD Screen
1× Converter Board
1× Signal Cable
1× Keyboard With Cable
