Model NO.
K002518-LQ123K1LG031280x480
Quantity:

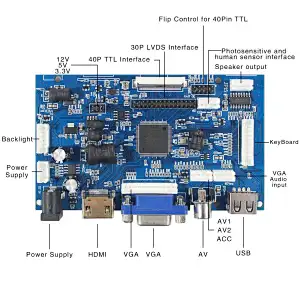

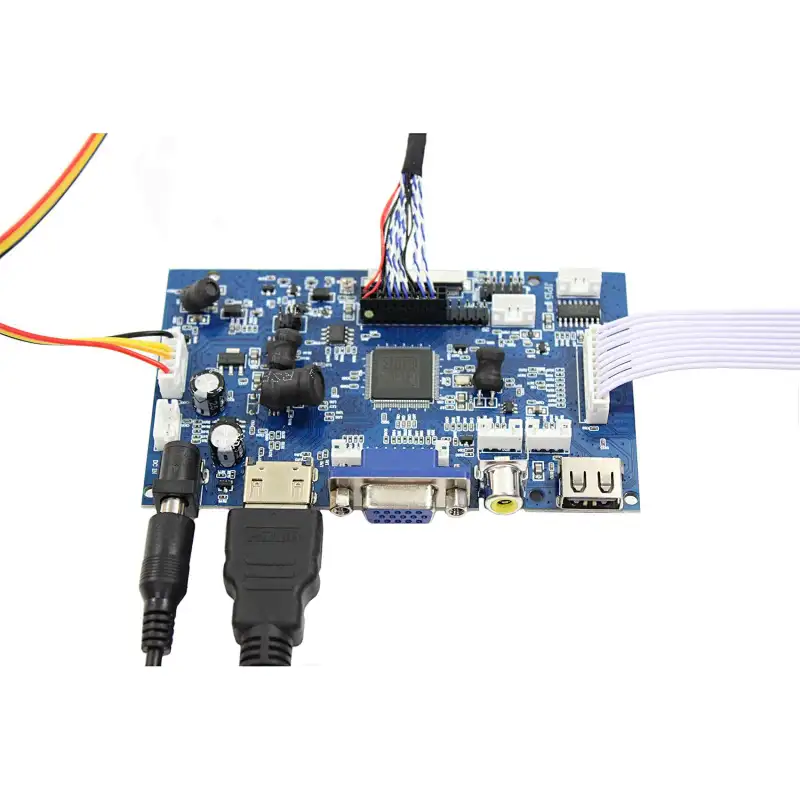

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm

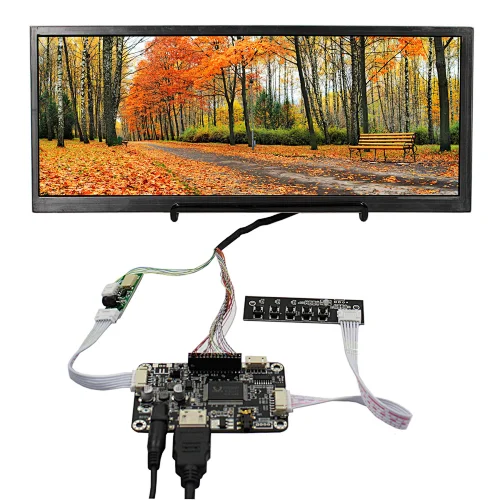

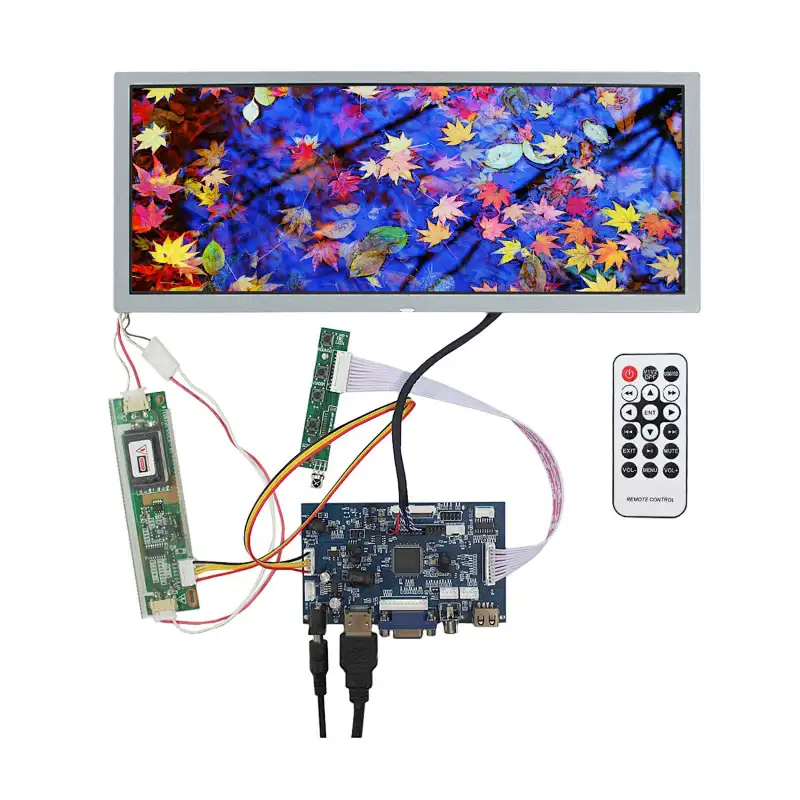

12.3"LQ123K1LG03 1280X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1280RGB)×480
Outline Size 312.4 ×130.4×8 (H×V×D)
Display Area 291.84 × 109.44 (H×V)
Brightness 330 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 65/65/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]

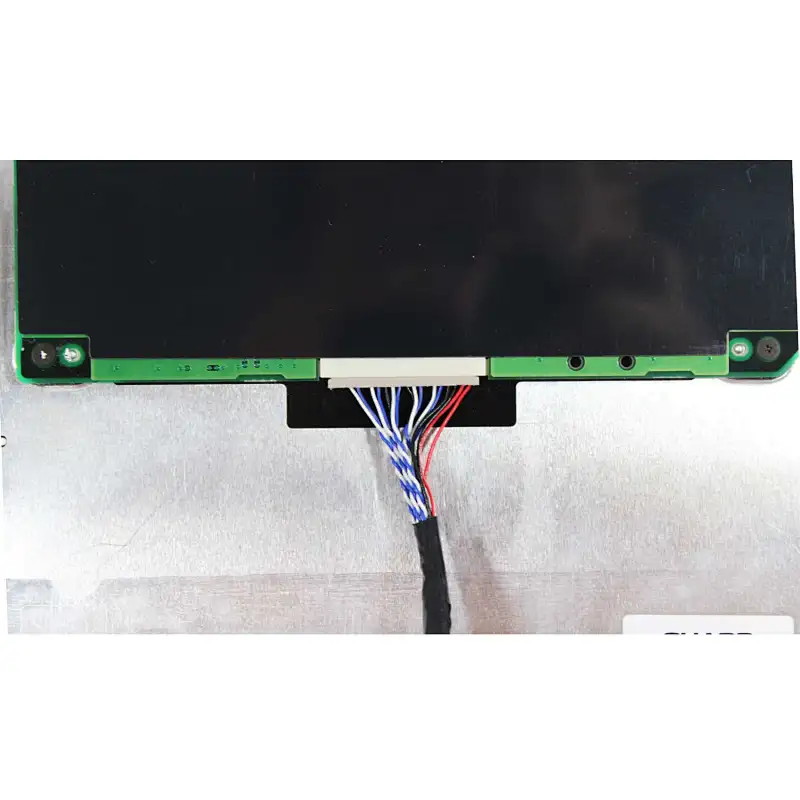

Signal Interface  20 pins LVDS (1 ch, 8-bit) , Connector
Backlight  CCFL
Input Voltage  3.3V (Typ.)

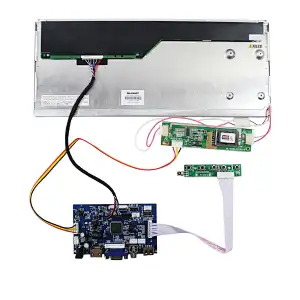

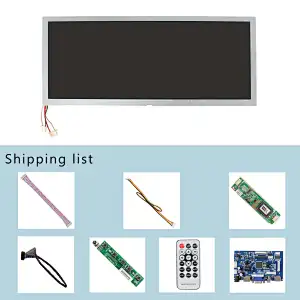

Packing list :
1×HDMI+USB+VGA LCD Controller Board VS-TY2660H-V899
1× 12.3inch LQ123K1LG03 1280X480 LCD Screen
1× Converter Board
1× LVDS Cable
1× Keyboard With Cable
