Model NO.
K002567-VS-RT2795T4K-V5 Type-C+NV140XTM-N52 3840x1100
Quantity:

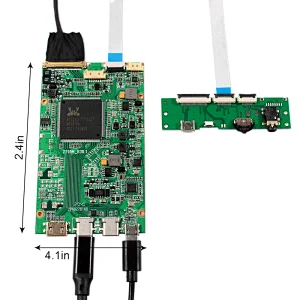

LCD Controller Board:
Type C HDMI Board For 4 Lane eDP Support Max 4096x2160 60Hz LCD Screen
Input Power Adapter: PD 5V dc Type C 18W
Come In Standby Model When Not Input Signal
Standby Model <1.2W
HDR: Support

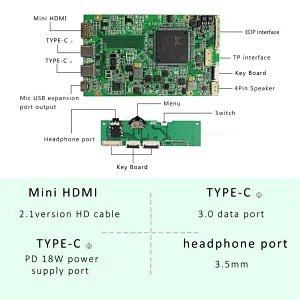

Video Input
HDMI (HDMI max 3840x2160 60Hz Support HDCP2.2)
Type-C (Data Transmission Image Display 5V Max 3A output)
Audio Output: Earphone
OSD: Brightness Contrast VOL+ VOL- Language And So On
Language: English French German Spanish Italian And So On
Board Size: 104.0mm x 62mm x 5mm

14"LCD Screen NV140XTM-N52:
Display Mode AAS, Normally Black, Transmissive
Resolution 3840 (RGB)×1100 (UHD)
Outline Size 350.52(W)×118.65 (H) ×2.5(D) mm
Display Area 344.218(W)×98.604(H) mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface eDP (4 Lanes) , Connector ,30 pins
Backlight WLED
Input Voltage 3.3V (Typ.)

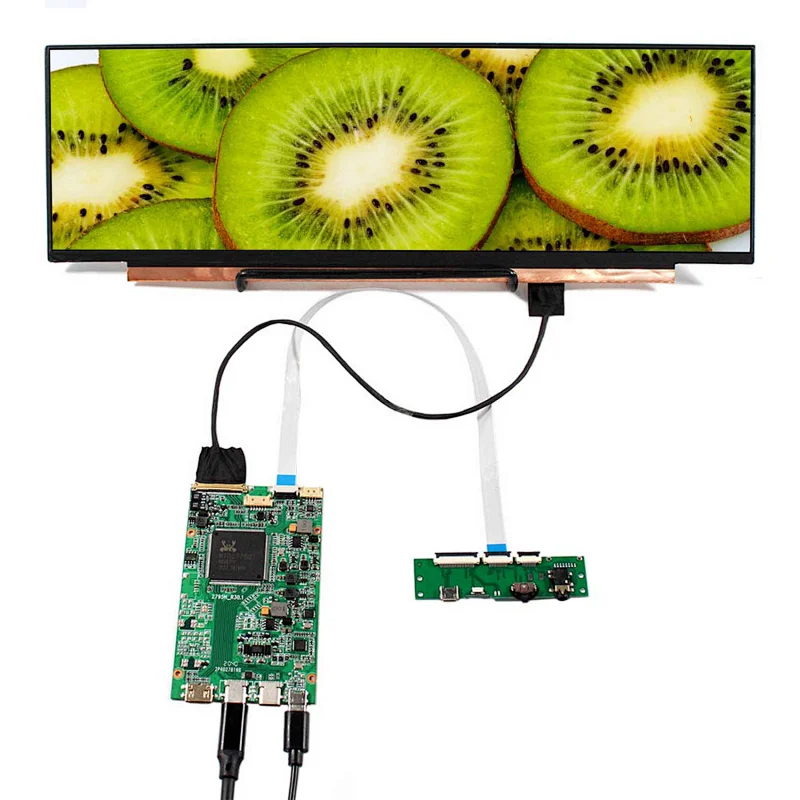

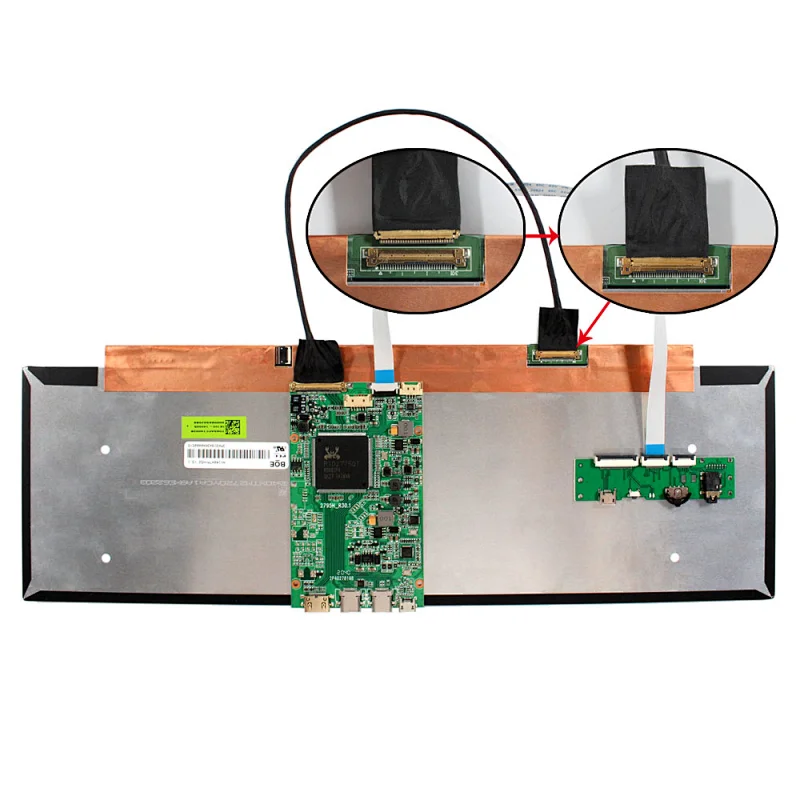

Packing list:
1× Mini HDMI Type C LCD Controller VS-RT2795T4K-V2
1× 14 inch NV140XTM-N52 3840X1100 IPS LCD Screen
1× Signal Cable
1× Keyboard With Cable
