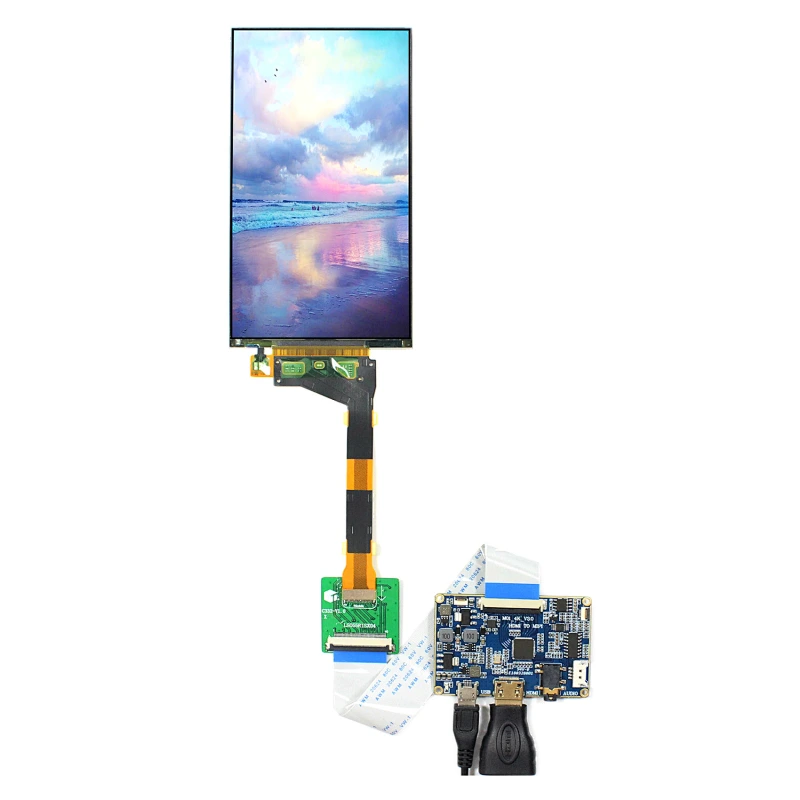

5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board
5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board

5.5inch 1440X2560 LS055R1SX04 Remove Backlight LCD Screen with HDMI To Mipi LCD Controller Board

Model NO.
K002215-VS-CXMIPI-V1+LS055R1SX04 1440x2560
Quantity:

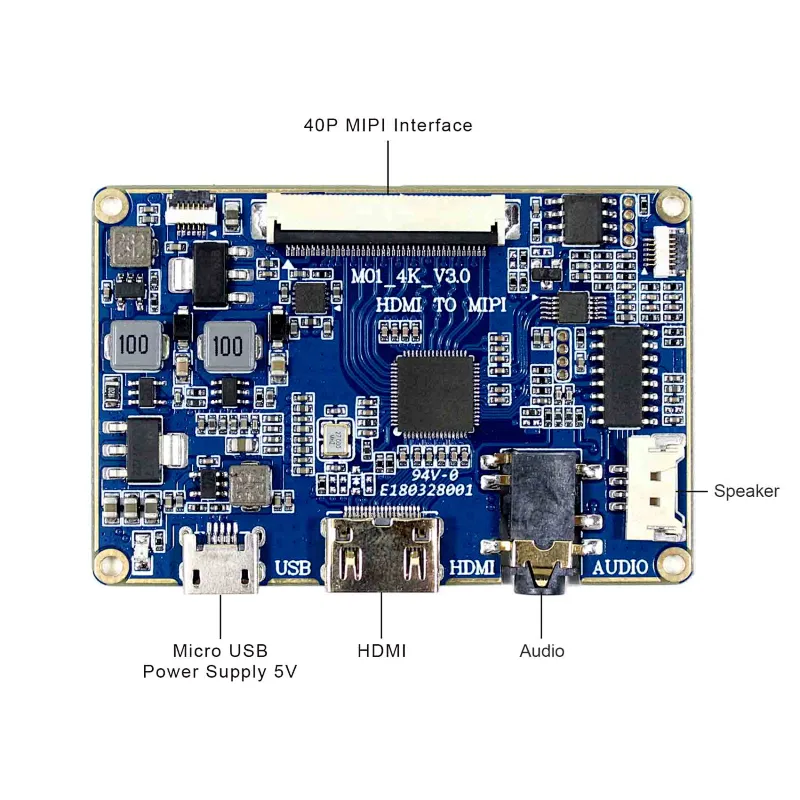

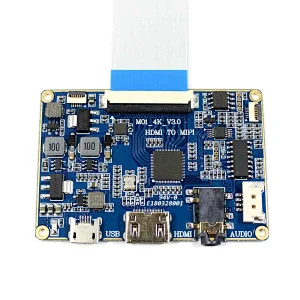

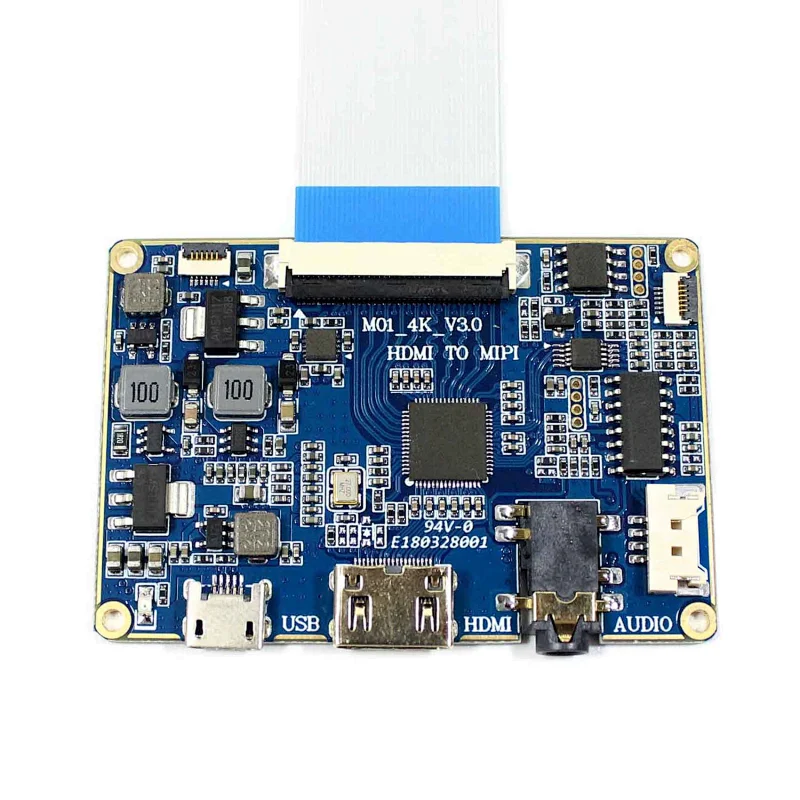

LCD Controller Board:
HDMI Board Work for 40Pin Mipi LCD Screen
Input Power Adapter: 5Vdc More than 1A. Mirco USB
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Audio Input: HDMI
AudioOutput:Speaker Earphone
Board Size: 60mm x 40mm x 3mm

5.5"LS055R1SX04  1440X2560 LCD Screen:
DisplayNew Mode2, Normally Black, Transmissive
Resolution 1440RGB)×2560
Outline Size 70.94 ×128.49×1.45(H×V×D)
Display Area 68.04× 120.96 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 1300:1 (Typ.) (TM)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface MIPI (2 ch, 4 data lanes) , 50 pins , Connector
BacklightNone
Input Voltage 1.8/5.75/-5.75V (Typ.)(IOVCC/VSP/VSN)

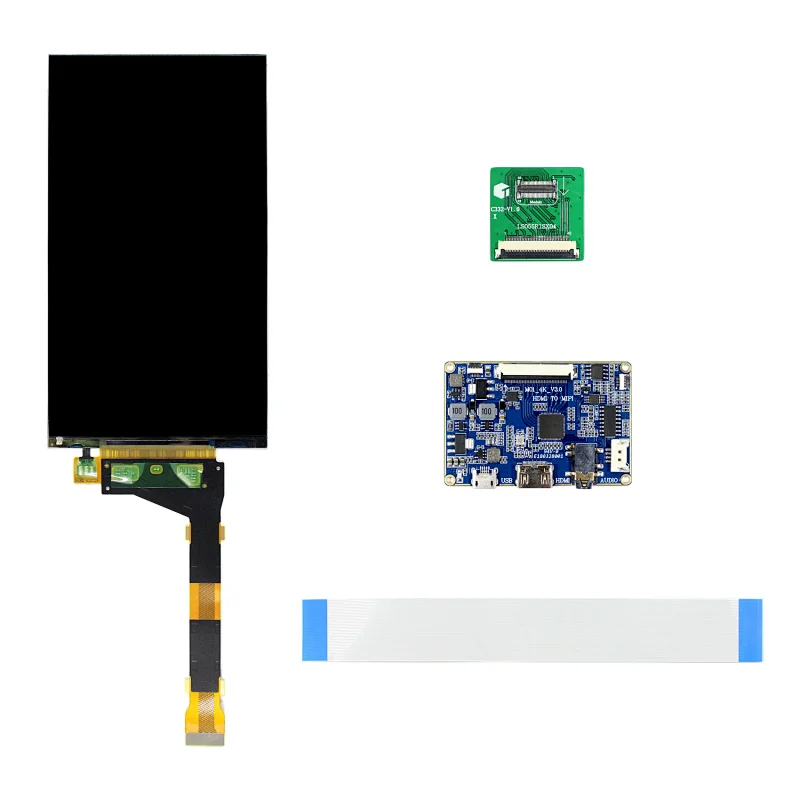

Packing list :
1× HDMI To Mipi LCD Controller Board VS-CXMIPI-V1
1× 5.5inch LS055R1SX04 1440X2560 LCD Screen(Remove Backlight)
1× Signal Cable
1× Converter Board
