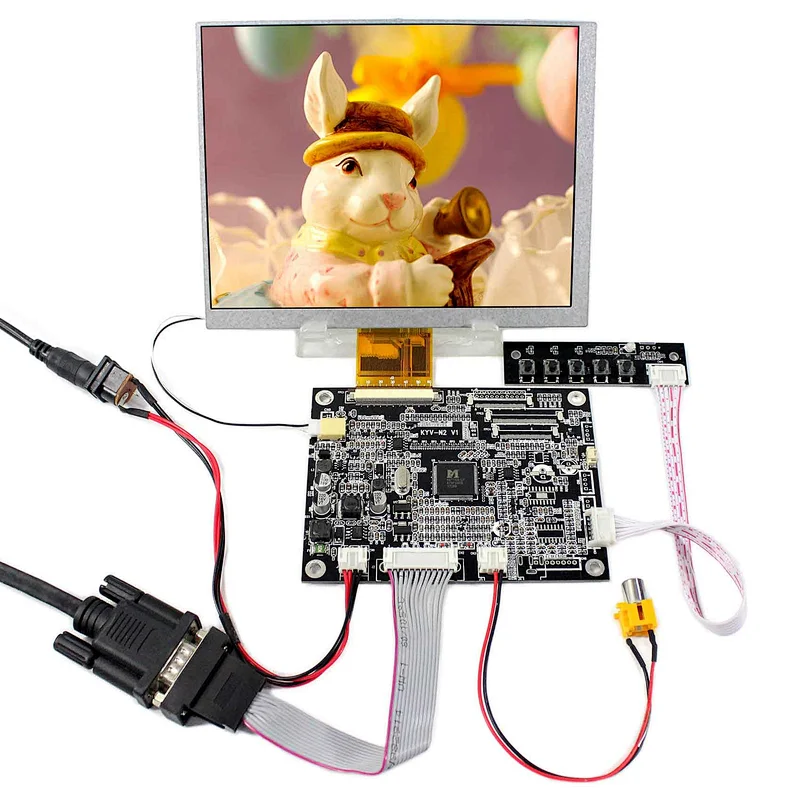

7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board
7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board

7inch CLAA070MA0ACW 800X600 Aspect Ratio 4:3 TFT-LCD Screen With VGA+AV LCD Controller Board

Model NO.
K000172-KYV-N2 V1+CLAA070MA0ACW
Quantity:

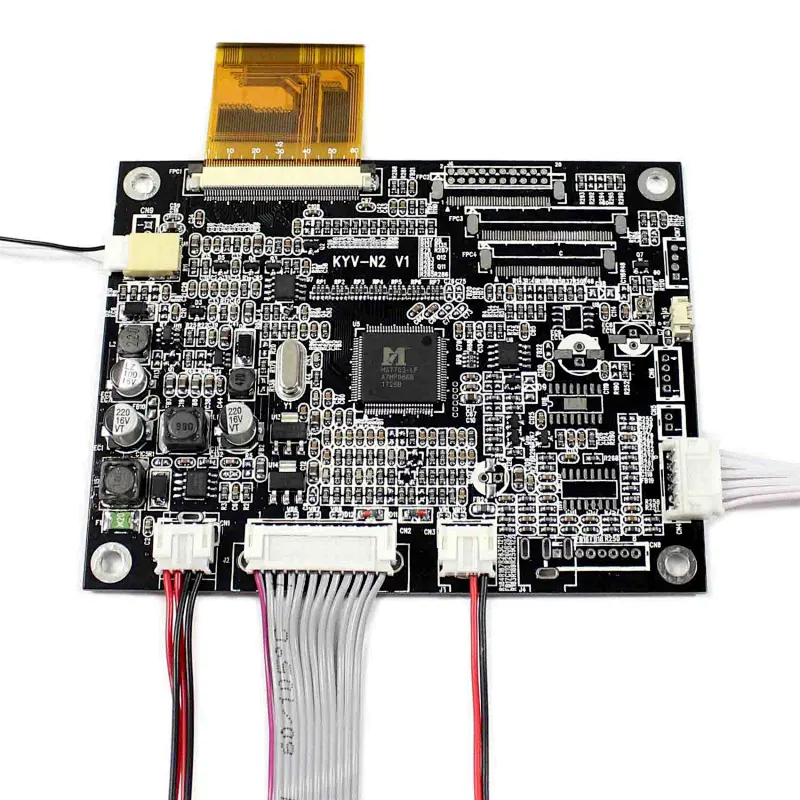

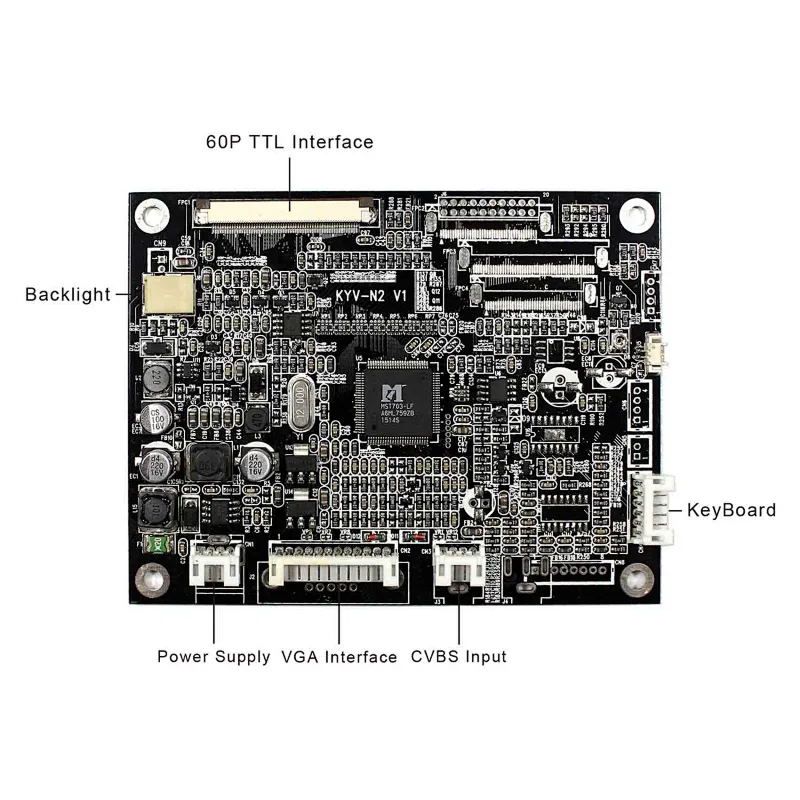

LCD Controller Board:
VGA AV LCD Board Work for 60Pin TTL LCD Screen
Input Power Adapter: 12Vdc More than 1A.
Come In Standby Model When Not Input Signal
Standby Model <0.3W
Video Input: VGA AV
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 85mm x 10mm

7"LCD Screen CLAA070MA0ACW :
Display Mode N, Normally White, Transmissive

Resolution 800RGB)×600
Outline Size 154 × 119.2 × 5.4 (H×V×D)
Display Area 141.6 × 106.2 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface TTL (1 ch, 6/8-bit) , FPC , 60 pins

Backlight WLED
Input Voltage  3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL)

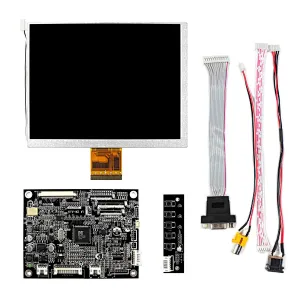

Packing list :
1× VGA+AV LCD Controller Board KYV-N2 V1

1× 7inch CLAA070MA0ACW 800X600 4:3 LCD Screen
1× Power Supply Cable

1× VGA Cable
1× AV Cable
1× Keyboard With Cable
