8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board
8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board

8.9inch 1024X600 TFT-LCD Screen 8.9inch Resistive Touch Panel Screen with HDMI VGA DVI LCD Controller Board

Model NO.
K000256-M.NT68676.2A+8.9inch+8.9 1024x600+VS089TP-A1+USB controller
Quantity:

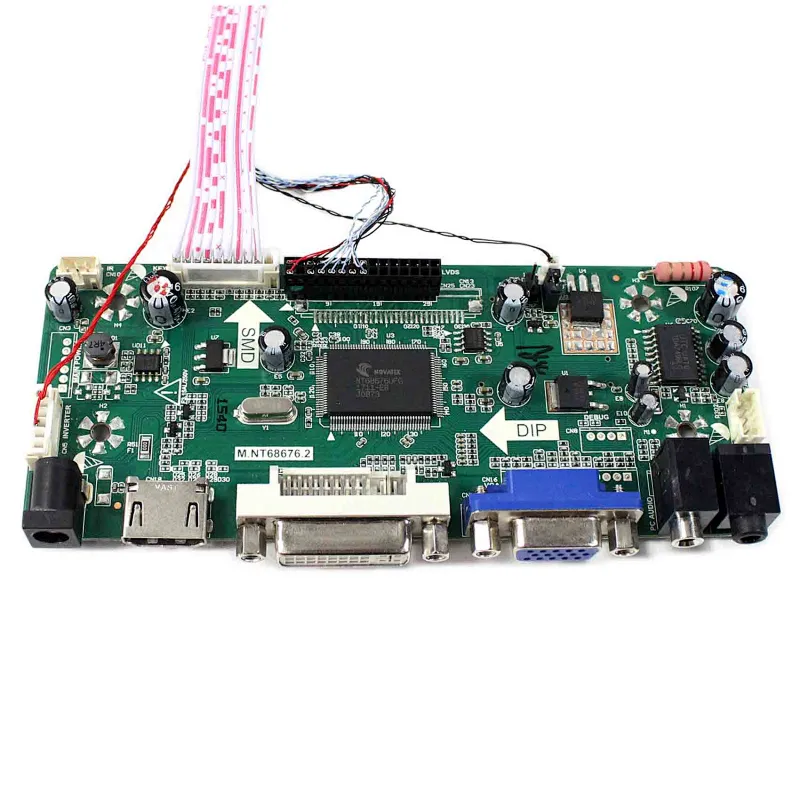

LCD Controller Board:
HDMI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI DVI VGA
Audio Input: HDMI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 125mm x 58mm x 17mm

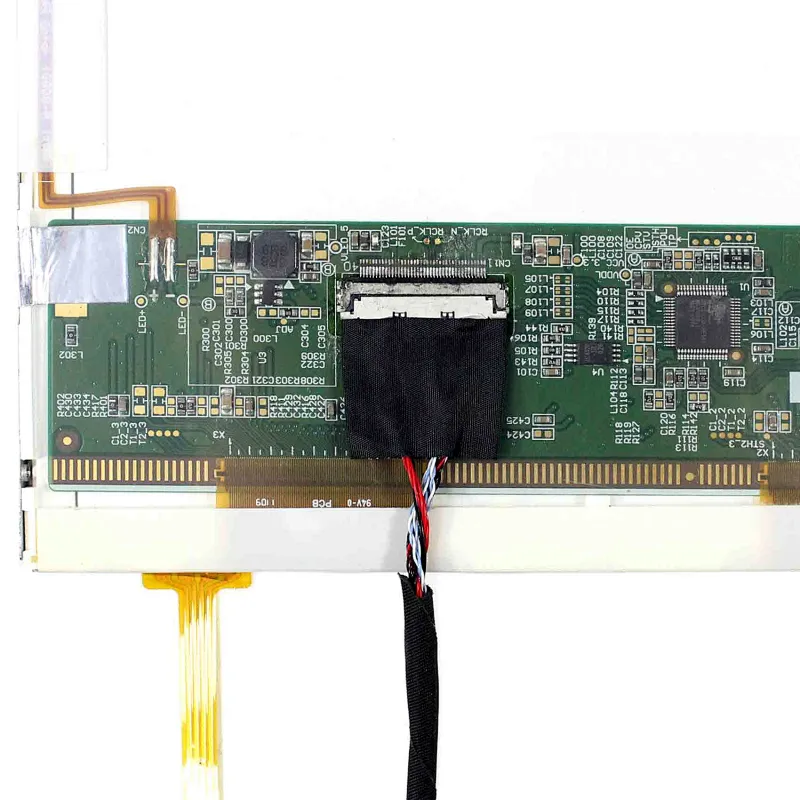

8.9"1024x600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 213.36 × 129.55×5.45(H×V×D)
Display Area 195.072× 113.4 (H×V)
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400:1 (Typ.) (TM)
Viewing Angle 45/45/60/45 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , Connector , 40 pins

Backlight  WLED
Input Voltage  3.3V (Typ.)

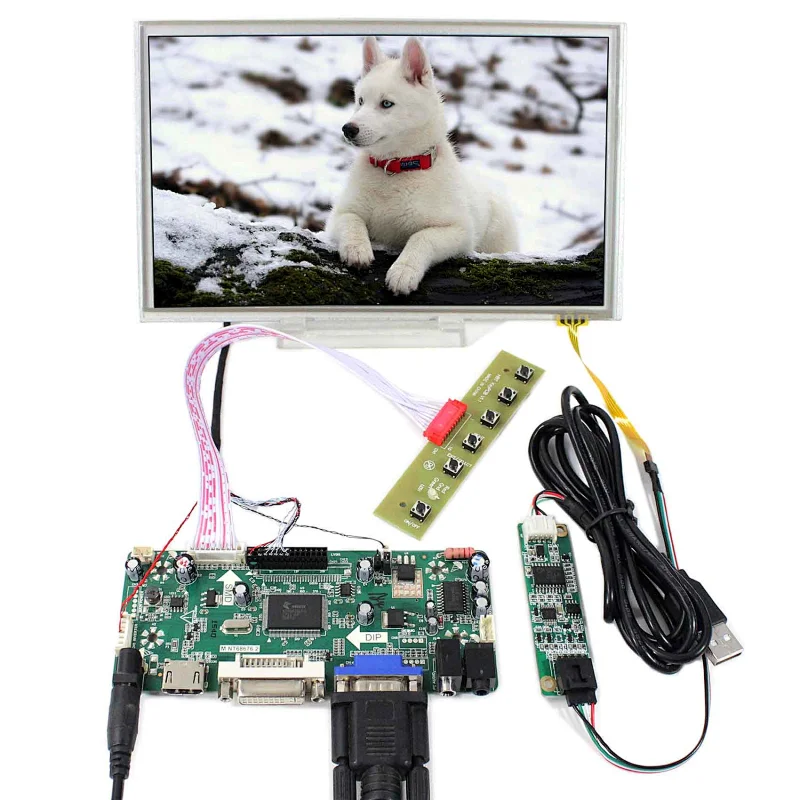

Packing list :
1×HDMI VGA DVI LCD Controller Board M.NT68676

1× 8.9inch 1024X600 LCD Screen (One of N089L6-L01 N089L6-L02 N089L6-L03 HSD089IFW1 HSD089IFW2 HSD089IFW3 B089AW01 V3 LTN098NT01 LP089WS1) With Resistive Touch Panel VS089TP-A1)
1× LVDS Cable
1× USB Controller Card
1× USB Cable
1× Extend Touch Cable
1× Keyboard With Cable
