9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board
9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board

9inch AT090TN10 800X480 LCD 9inch Capacitive Touch Panel with HDMI+VGA+2AV LCD Controller Board

Model NO.
K001955- VS-TY2662-V1+AT090TN10+VS090TC01-C1 T000068
Quantity:
LCD Controller Board:
HDMI VGA 2AV LCD Board Work for LVDS Interface LCD Screen
50Pin TTL Connector for 7inch~10.1inch LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HDMI VGA AV1 AV2
Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 91mm x 66mm x 12mm
9"AT090TN10 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 211.1× 126.5×5.7 (H×V×D)
Display Area 198 × 111.7 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

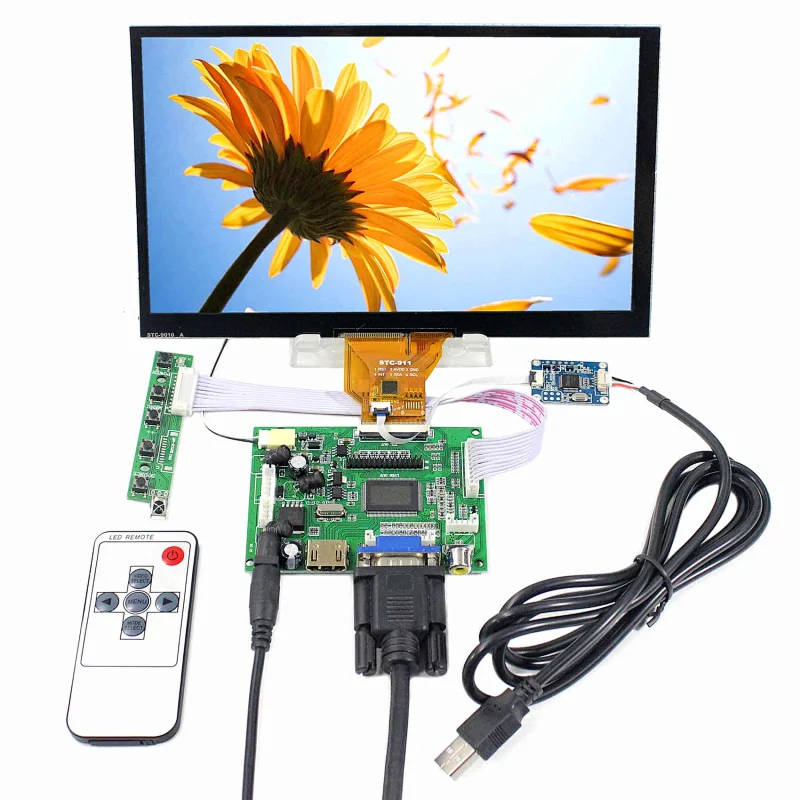

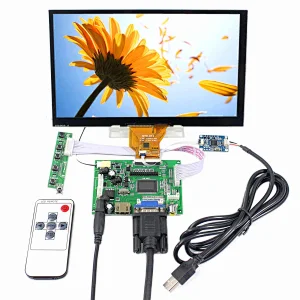

Packing list :
1× HDMI+VGA+2AV LCD Controller Board VS-TY2662-V1
1× 9inch AT090TN10 800X480 LCD With CapacitiveTouch Panel VS090TC01-C1
1× USB Controller Card
1× USB Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
