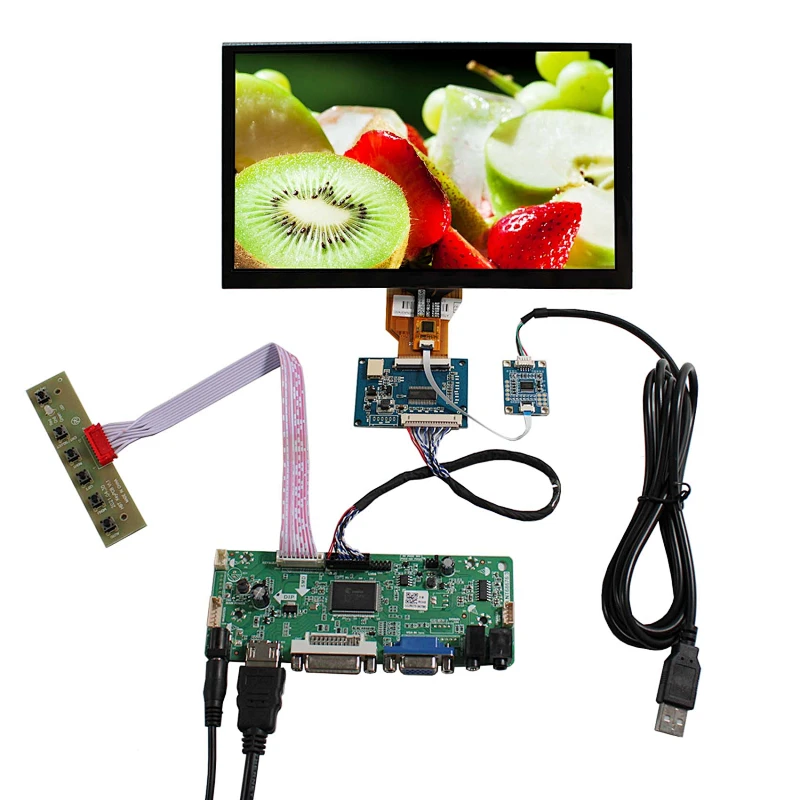

9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board
9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board

9inch AT090TN10 800X480 LCD Capacitive Touch Panel with HD-MI+VGA+DVI+ LCD Controller Board

Model NO.
K002877- M.NT68676.3+AT090TN10+VS090TC01-C1
Quantity:

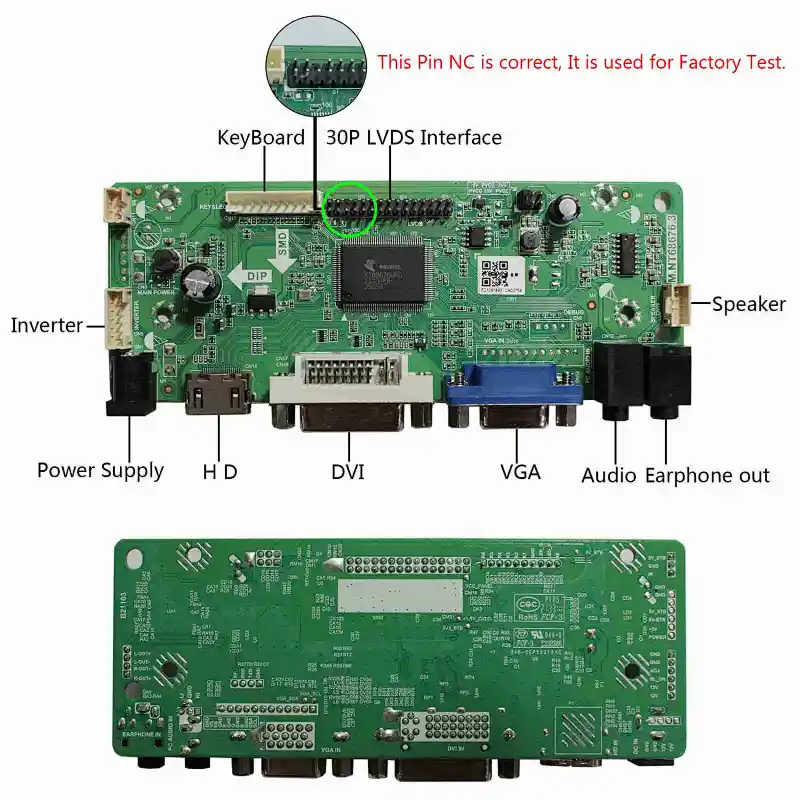

LCD Controller Board:
HD-MI DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Video Input: HD-MI DVI VGA
Audio Input: HD-MI
Audio Output: Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On

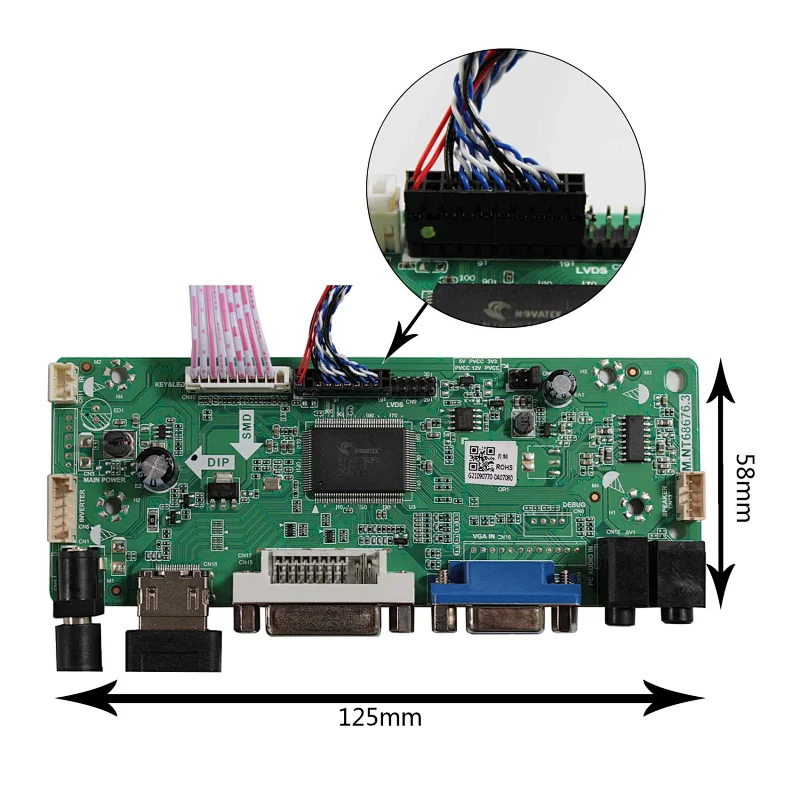

Board Size: 139mm x 53mm x 17mm

9"AT090TN10 800X480 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 800RGB)×480
Outline Size 211.1× 126.5×5.7 (H×V×D)
Display Area 198 × 111.7 (H×V)
Brightness 450 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC
Backlight  WLED
Input Voltage  3.3V (Typ.)

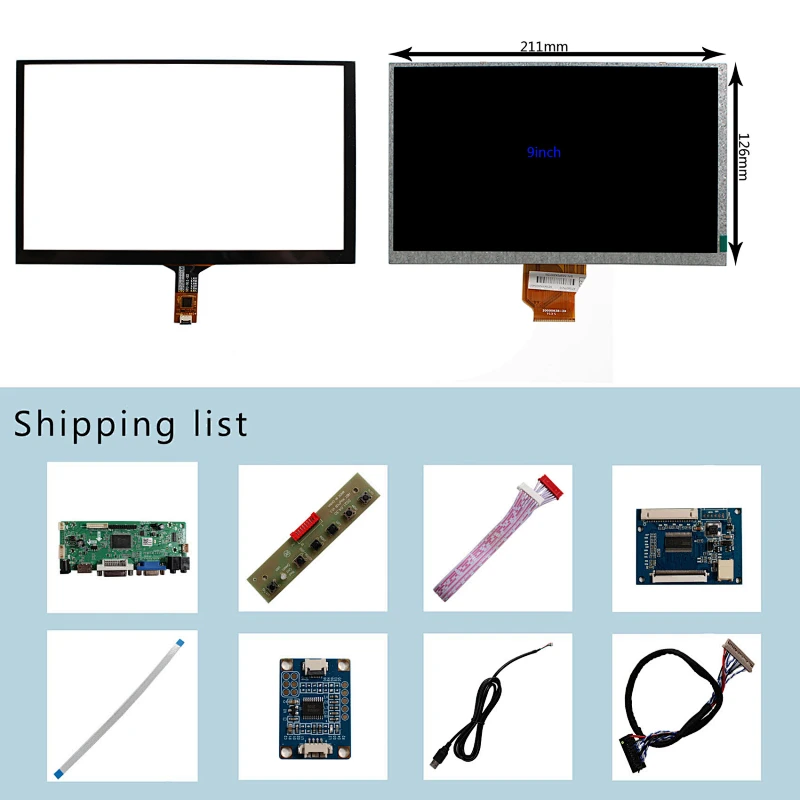

Packing list:
1× HD-MI+VGA+DVI+ LCD Controller Board M.NT68676
1× 9inch AT090TN10 800X480 LCD With CapacitiveTouch Panel VS090TC01-C1

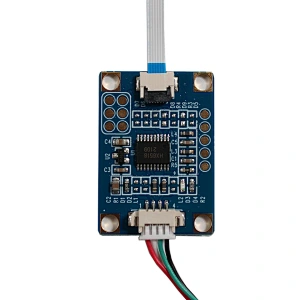

1× USB Controller Card
1× USB Cable
1× Keyboard With Cable
