Model NO.
K002501-VS-TY2660-899 + CLAA102NA0ACW HSD100IFW1+VS102TP-A3
Quantity:

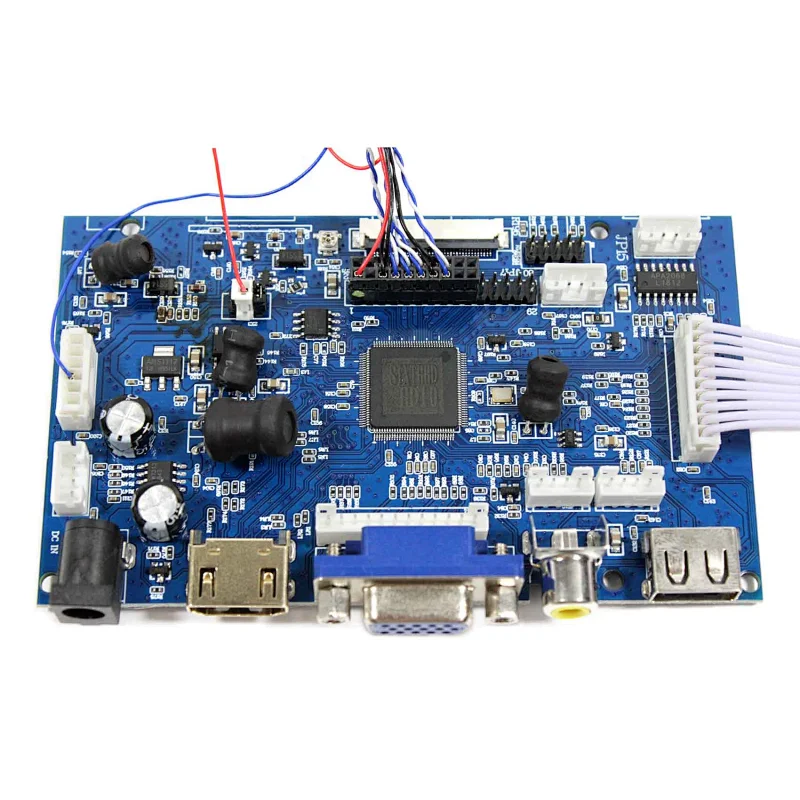

LCD Controller Board:
HDMI VGA 2AV USB Automatic Brightness Adjustment LCD Board for 40Pin TTL 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel 3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HDMI VGA AV1 AV2 USB
HDMI: Support HDMI 1.4
VGA: Support Audio Input
CVBS2 Channel AV-CVBS
Reversing Function: ACC to Reversing Signal (5V-50V) will automatically Switch To AV2
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 110mm x 66mm x 12mm
10.2"HSD100IFW1 1024X600 LCD Screen:
Display Mode  TN, Normally White, Transmissive
Resolution 1024RGB)×600
Outline Size 223.42 × 132.15×4.9 (H×V×D)
Display Area 220.4  × 129.1 (H×V)
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500:1 (Typ.) (TM)
Viewing Angle 70/70/50/60 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 6-bit) , 30 pins , Connector
Backlight  WLED
Input Voltage  3.3V (Typ.)
Packing list:
1× HDMI VGA+2AV LCD Controller Board VS-TY2660H-V899
1× 10.2inch HSD100IFW1 CLAA102NA0ACW 1024X600 LCD With Capacitive Touch Panel VS102TP-A3
1× LVDS Cable
1× USB Cable
1× Keyboard With Cable
1× Remote Control(Battery Not included)
